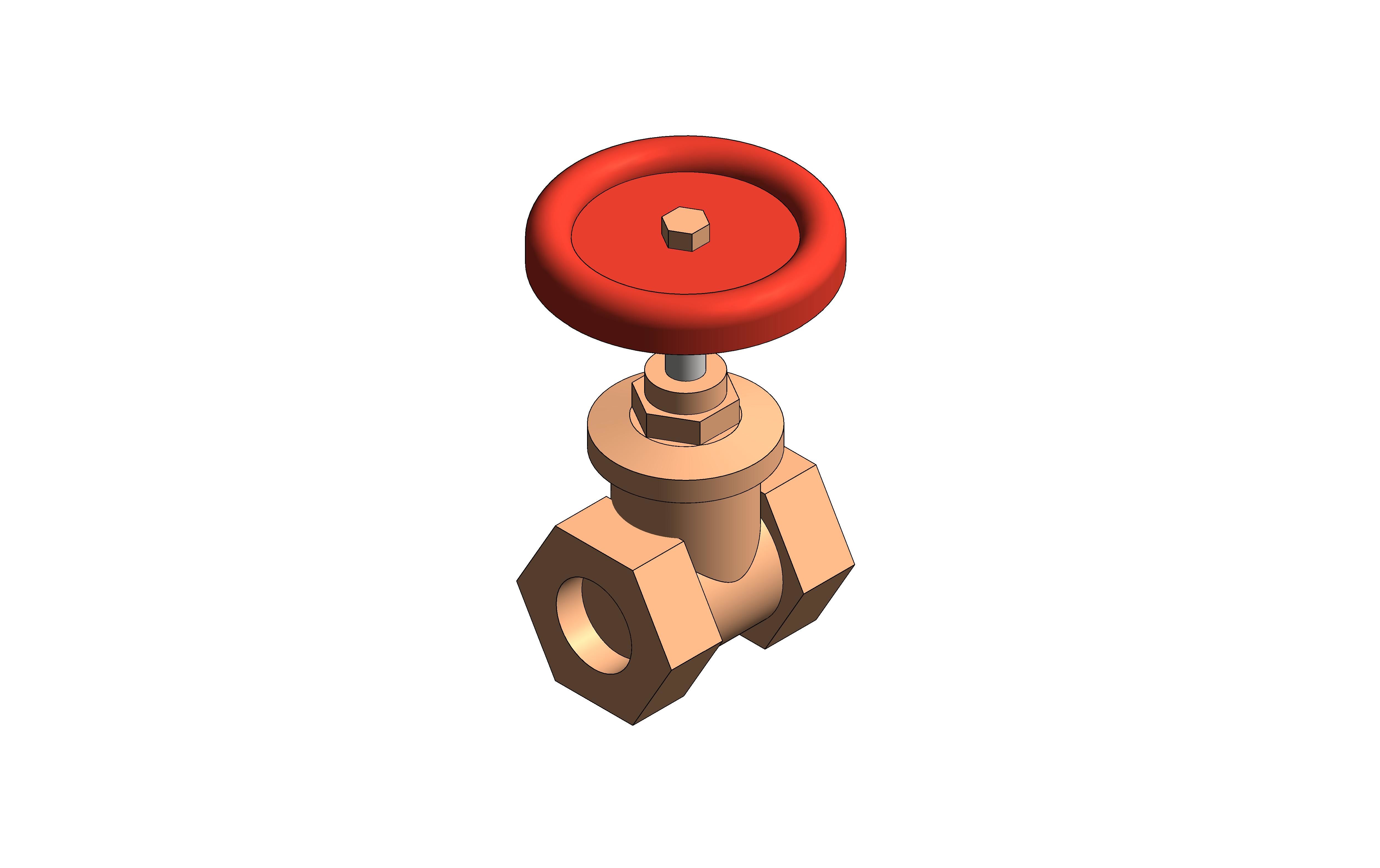

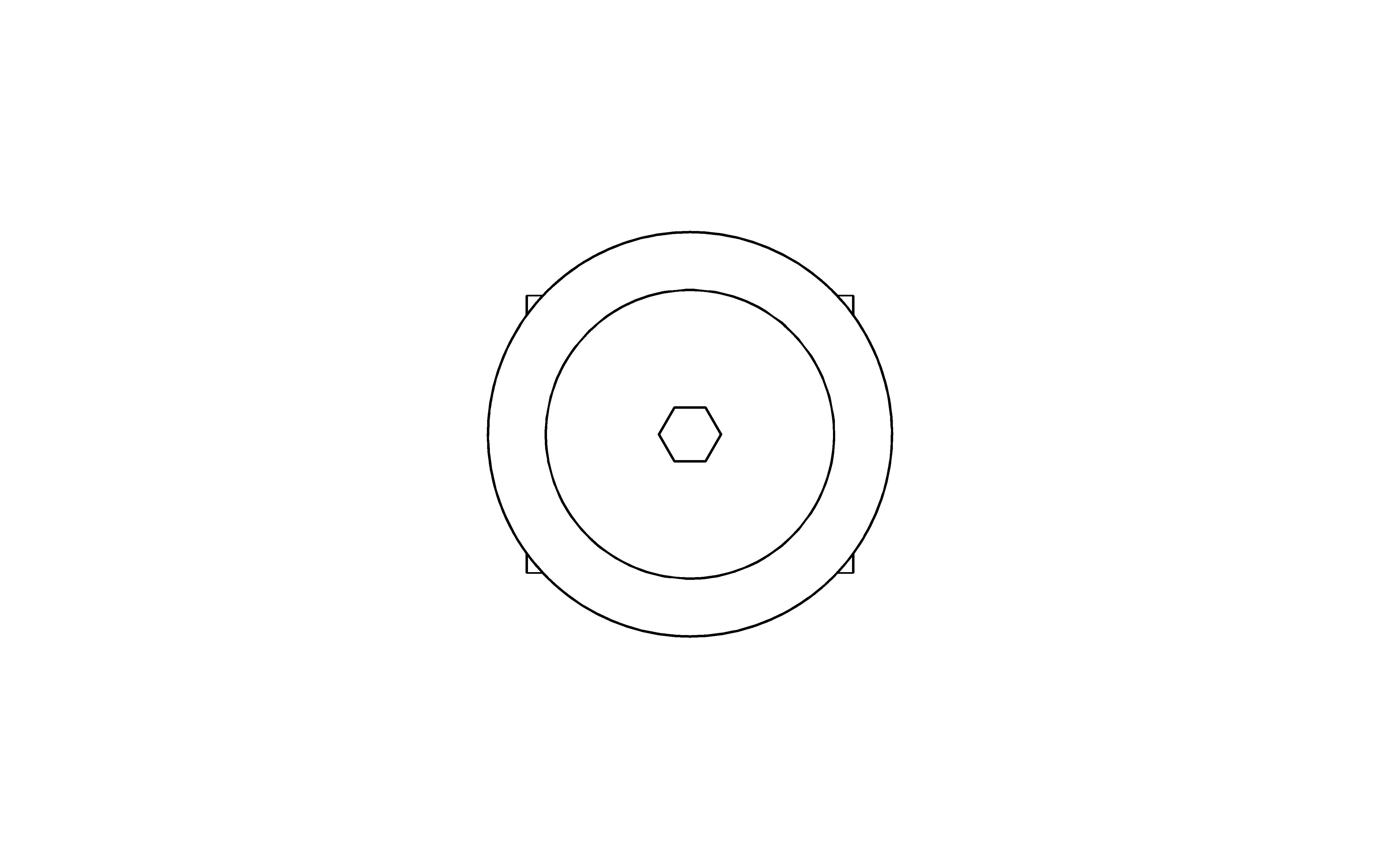

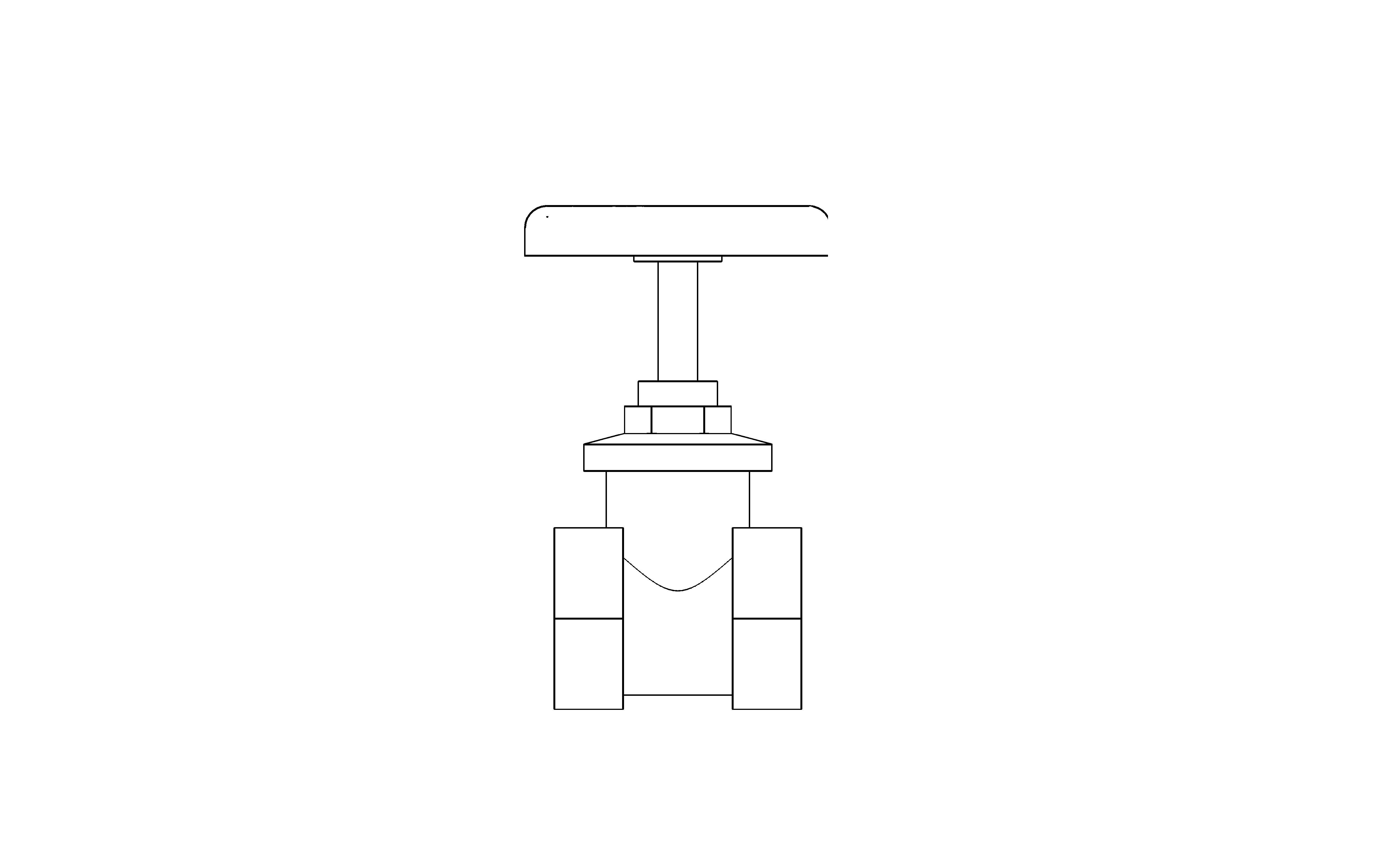

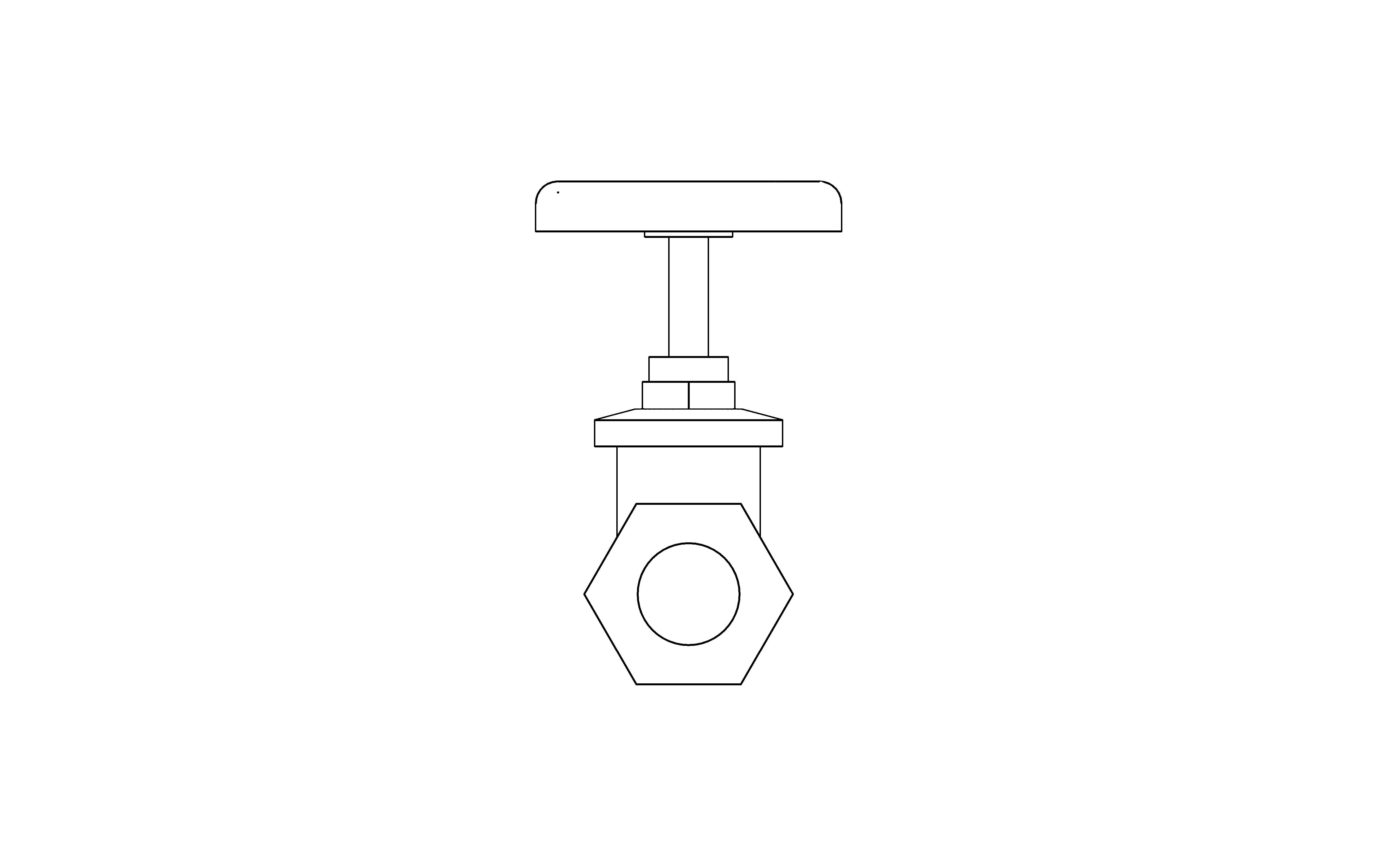

ART 330 HW - Bronze Gate Valve

by Albion Valves

Download Add to collection

Description

PN20 Bronze Gate Valve. Bronze Body and Disc. Screwed Bonnet. Non Rising Stem. BS 5154 / MSS-SP-80.

Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1).

WRAS Approved.

20 Bar Rated.

-10°C to +170°C

Object Data

1 Revision

Last Updated

15/12/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

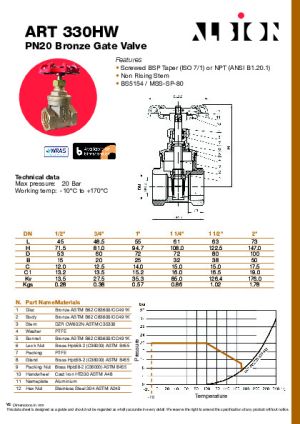

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-330-hw-bronze-gate-valve/document/object-user-guide
a14.2 mm
Accessibility Performancen/a
Angle15.00 °
Assembly CodeD20
Asset TypeFixed
b13.2 mm
B15.0 mm
BIM Object NameAlbionValves_PipeAccessories_GateValve_ART330HW
BodyBronze C83600 ASTM B62
BonnetBronze C83600 ASTM B62
c26.7 mm
C12.0 mm
C113.2 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_15
Code Performancen/a
Colorn/a
Connection Radius7.5 mm
Connection Size15.0 mm
Constituentsn/a
Count1
Created Bysales@albionvalvesuk.com
Created On2023-11-14 T09:00:00
d5.0 mm
D53.0 mm
Default Elevation0.0 mm
DescriptionPN20 Bronze Gate Valve
DiscBronze C83600 ASTM B62
Documentation Certificateswww.bimstore.co/products/art-330-hw-bronze-gate-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/art-330-hw-bronze-gate-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/art-330-hw-bronze-gate-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/art-330-hw-bronze-gate-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/art-330-hw-bronze-gate-valve/document/technical-data-sheet
Duration UnitYear
e1.9 mm
Expected Life0
f17.0 mm
Features• Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1) • Non Rising Stem • BS5154 / MSS-SP-80
FinishBronze
g9.5 mm
GlandBrass Hpb58-2 (C38000) ASTM B455
Graden/a
h38.4 mm
H71.5 mm
HandwheelCast Iron HT200 ASTM A48
Hex NutStainless Steel 304 ASTM A240
Hex Width33.0 mm
i43.2 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveType
j7.4 mm
k3.4 mm
KeynoteS
l9.6 mm
L45.0 mm
Lock NutBrass Hpb58-2 (C38000) ASTM B455
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialBronze
Maximum Pressure20 Bar
ModelART 330 HW
Model NumberART 330 HW

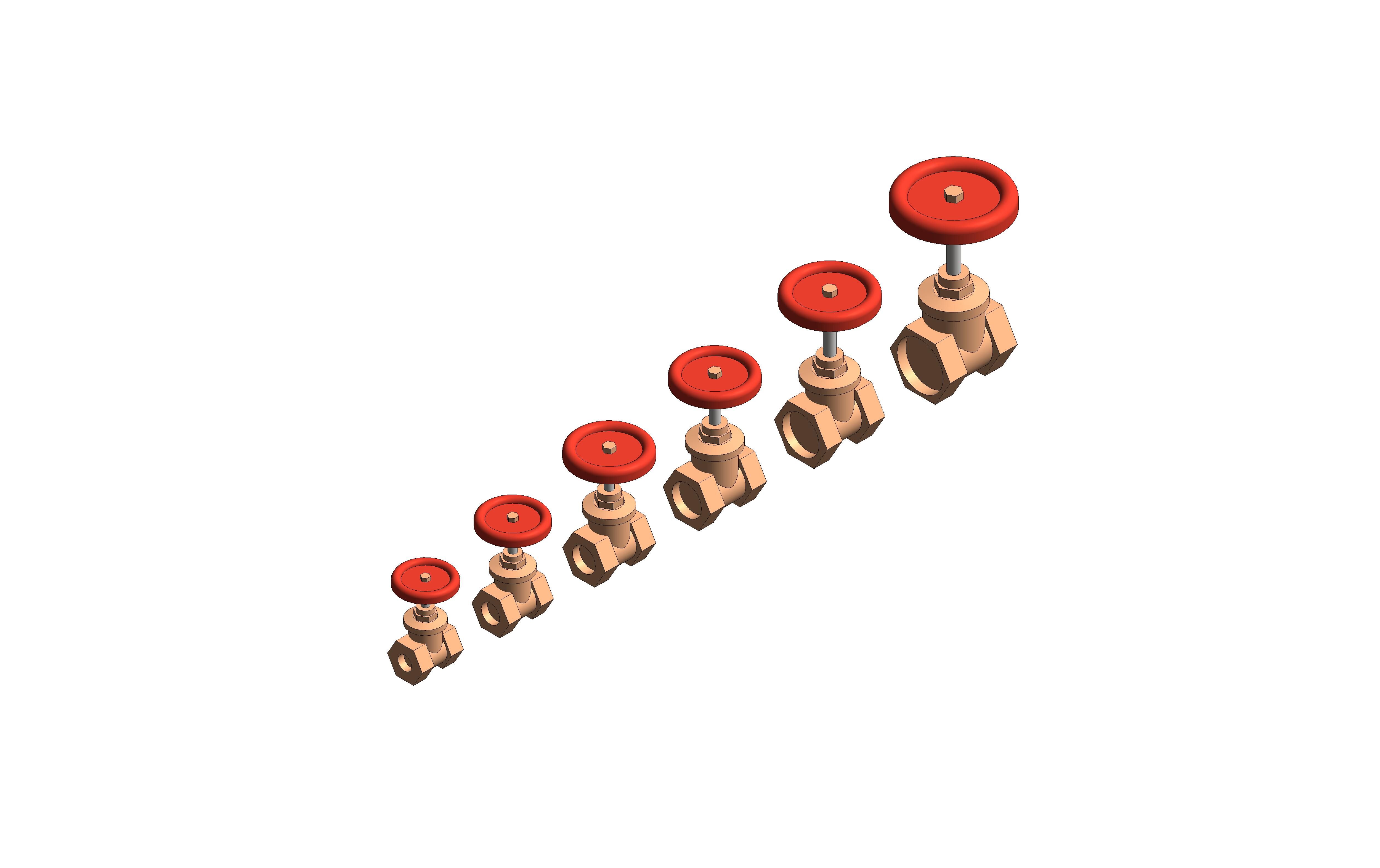

Model ReferenceDN15 - DN50
NameplateAluminium
NBS DescriptionCopper alloy gate valves
NBS Noten/a
NBS Object NameAlbion Valves - Copper alloy gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/342
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
PackingPTFE
Packing NutBrass Hpb58-2 (C38000) ASTM B455
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15 - DN50
Spare Partsn/a
StemDZR CW602N ASTM C35330
Top Hex Width16.5 mm
Type CommentsDN15 - DN50
Type NameART 330 HW - DN15
URLwww.albionvalvesuk.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@albionvalvesuk.com
WasherPTFE
Working Temperature-10°C to +170°C
