ART 340 - Bronze Ball Valve

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/art-340-bronze-ball-valve/document/object-user-guide
• a2.8 mm
• Accessibility Performancen/a
• Angle15.00 °
• Assembly CodeD20
• Asset TypeFixed
• b13.2 mm
• B15.0 mm
• Ball1/2" to 1" Brass Chrome Plated ASTM; CW617N C38000; 1 1/4" to 2" Stainless Steel 304 ASTM A240
• BIM Object NameAlbionValves_PipeAccessories_BallValve_ART340
• BodyBronze ASTM B62 C83600
• Body Offset18.0 mm
• c14.0 mm
• C95.0 mm
• C114.5 mm
• CapBronze ASTM B62 C83600
• Classification NameUniclass2015
• Classification ValuePr_65_54_95_06
• Code Performancen/a
• Colorn/a
• Connection Radius7.5 mm
• Connection Size15.0 mm
• Constituentsn/a
• Count1
• Created Bysales@albionvalvesuk.com
• Created On2023-11-14 T09:00:00
• d16.1 mm
• Default Elevation0.0 mm
• DescriptionPN40 Bronze Ball Valve
• Documentation Certificateswww.bimstore.co/products/art-340-bronze-ball-valve/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/art-340-bronze-ball-valve/document/installation-guide

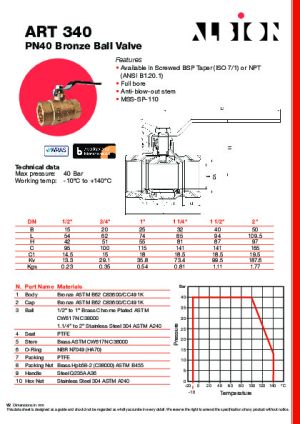

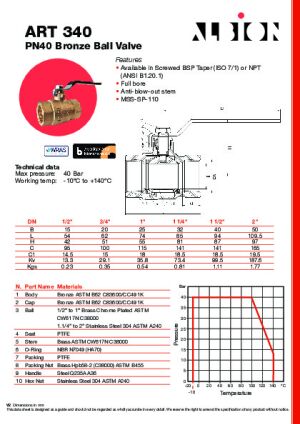

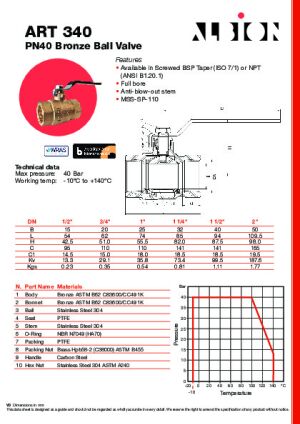

• Documentation Literaturewww.bimstore.co/products/art-340-bronze-ball-valve/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/art-340-bronze-ball-valve/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/art-340-bronze-ball-valve/document/technical-data-sheet
• Duration UnitYear
• e18.0 mm
• Expected Life0
• f26.9 mm
• Featuresn/a
• FinishBronze
• g7.1 mm
• Graden/a
• H42.0 mm
• HandleSteel Q235A A36
• Hex NutStainless Steel 304 ASTM A240
• Hex Width30.0 mm
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveType
• KeynoteS
• L54.0 mm
• ManufacturerAlbion Valves
• Manufacturer NameAlbion Valves
• MaterialBronze
• Maximum Pressure40 Bar
• ModelART 340
• Model NumberART 340
• Model ReferenceDN15 - DN50
• NBS DescriptionBall valves
• NBS Noten/a
• NBS Object NameAlbion Valves - Ball valves
• NBS Office Master Tagn/a
• NBS Reference90-10-90/330
• Nominal Depth0.0 mm
• Nominal Height0.0 mm
• Nominal Length0.0 mm
• O-RingNBR N7049 (HA70)
• PackingPTFE
• Packing NutBrass Hpb58-2 (C38000) ASTM B455
• Production Year2023
• Referenced Standardn/a
• Replacement Costn/a
• SeatPTFE
• Shapen/a
• SizeDN15 - DN50
• Spare Partsn/a
• StemBrass ASTM CW617N C38000
• Type CommentsDN15 - DN50
• Type NameART 340 - DN15
• URLwww.albionvalvesuk.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partssales@albionvalvesuk.com
• Working Temperature-10°C to +140°C
