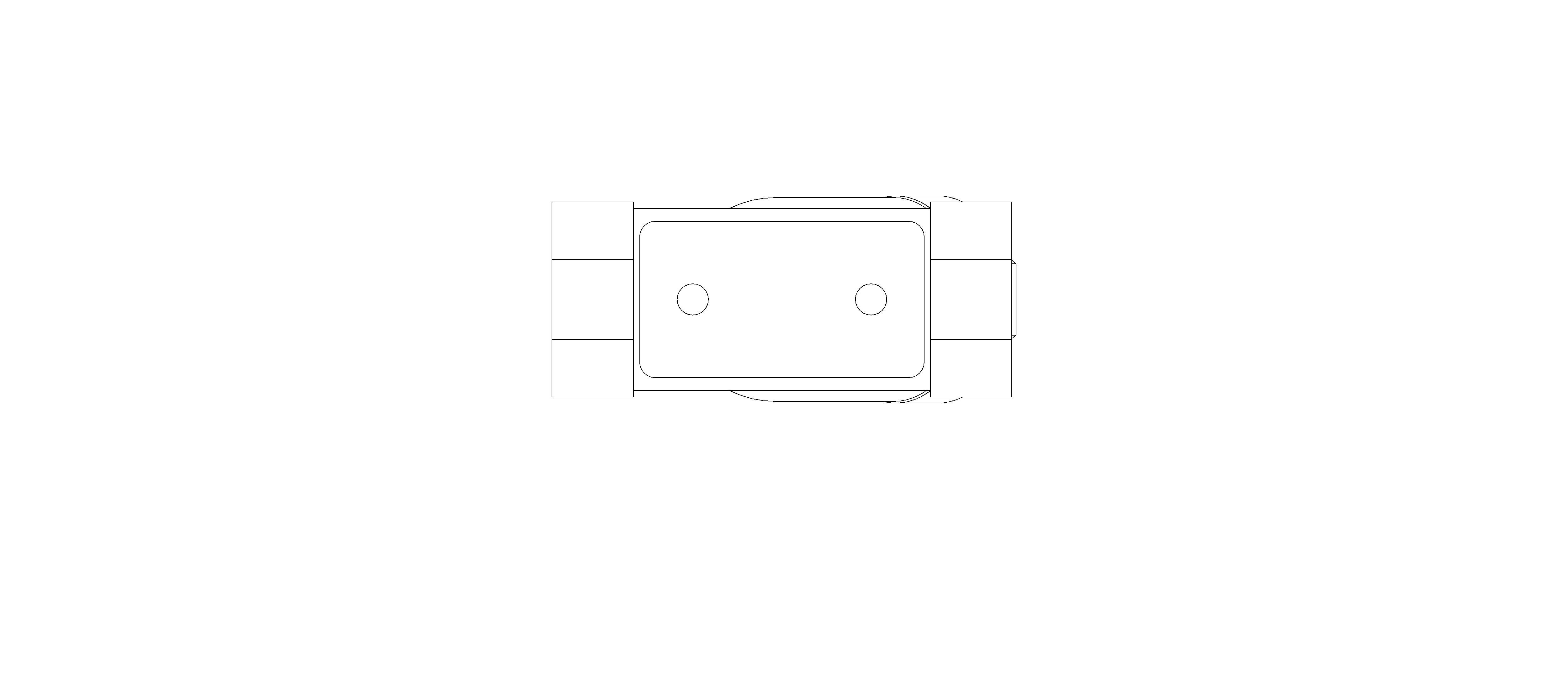

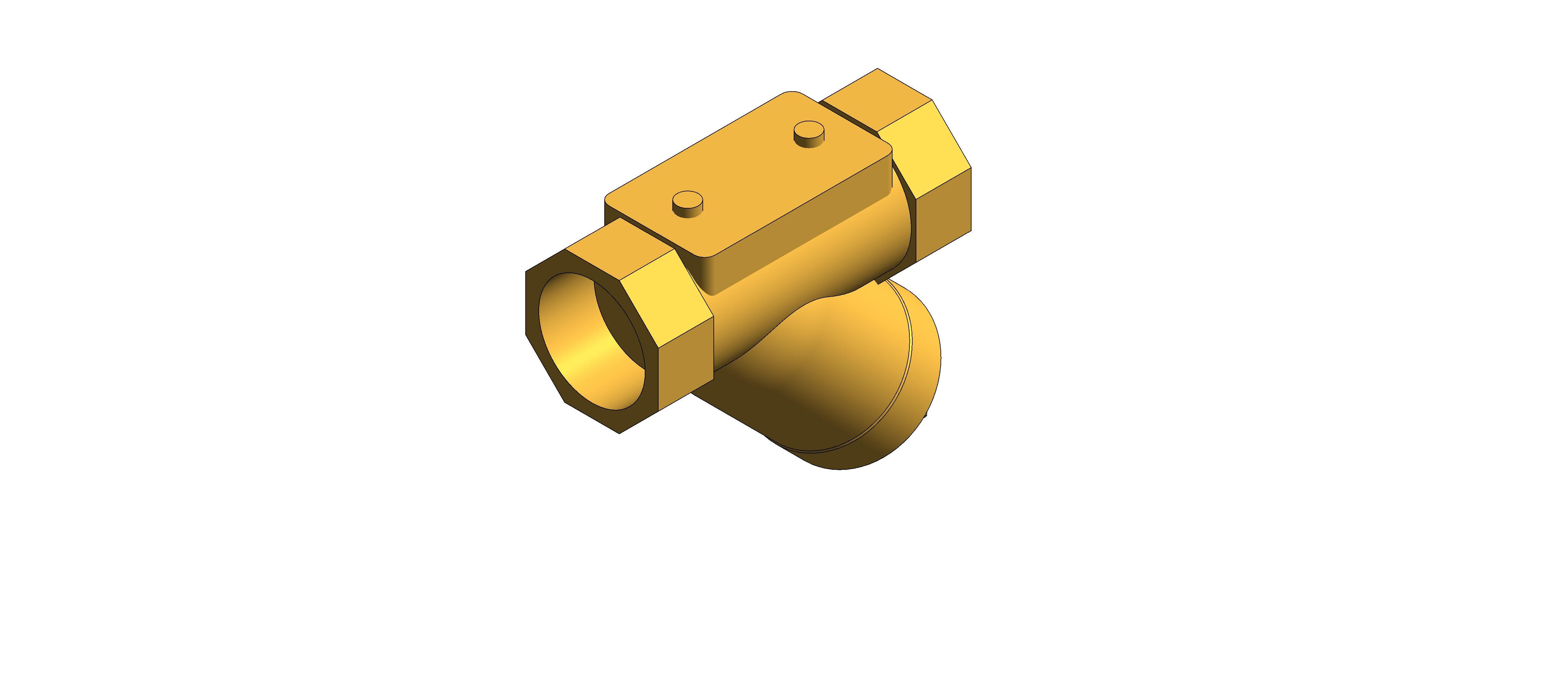

ART 369 - 'Y' Type Strainer with Tapping Points

by Albion Valves

Download Add to collection

Description

PN32 Bronze 'Y' Strainer. Can be fitted with flow verification test points. Suitable for water, steam and oil. Screen: Woven wire 20 mesh (0.85mm aperture - 51% open area). Test Points (ART 299) to be purchased separately.

Object Data

1 Revision

Last Updated

27/03/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

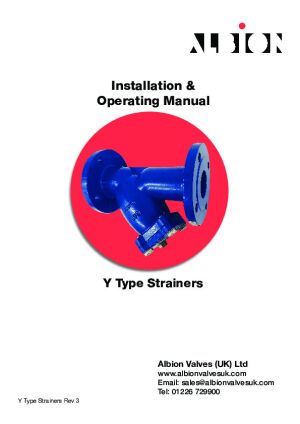

Installation Guide

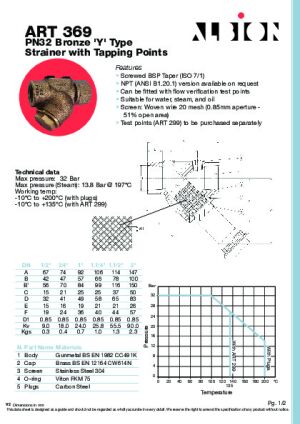

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/07846bce-850f-417d-9fd9-bce7b28b87a9/document/object-user-guide
126.2 mm
213.7 mm
a22.0 mm
A67.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B42.0 mm
BIM Object NameAlbionValves_PipeAccessories_Strainer_ART369
c44.6 mm
Classification NameUniclass2015
Classification ValuePr_65_57_96_99
Code Performancen/a
ColorYellow
Connection Size15.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2025-03-10T09:00:00
d9.0 mm
D14.0 mm
Default Elevation0.0 mm
DescriptionPN32 Bronze 'Y' Type Strainer with Tapping Points
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/y-type-strainer-iom/
Documentation Literaturewww.albionvalvesuk.com/part/art-369/
Documentation Maintenancewww.albionvalvesuk.com/y-type-strainer-iom/
Documentation Technicalwww.bimstore.co/products/07846bce-850f-417d-9fd9-bce7b28b87a9/document/technical-data-sheet
Duration UnitYears
E15.0 mm
e7.7 mm
Expected Life0
F19.0 mm
Featuresn/a
FinishGunmetal BS EN 1982 CC491K
Graden/a
Height Calc0.9 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialGunmetal BS EN 1982 CC491K
Max Pressure32 Bar
ModelPN32 Bronze 'Y' Type Strainer with Tapping Points
Model NumberDN15
Model ReferencePN32 Bronze 'Y' Type Strainer with Tapping Points
NBS DescriptionY-type water strainers
NBS Object NameAlbion Valves - Y-type water strainers
NBS Office Master Tagn/a
NBS Reference90-10-60/400
Nominal Depth26.2 mm
Nominal Height55.1 mm
Nominal Length67.0 mm
Nut Height6.5 mm
Nut Width16.6 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Size DN15
Spare Partsn/a
Strainer Symbol Length33.5 mm
Strainer Symbol Width11.3 mm
Thread Inch1/2
Thread Millimetre12.7 mm
Type CommentsDN15
Type NamePN32 Bronze 'Y' Type Strainer with Tapping Points
URLwww.albionvalvesuk.com/
Valve FinishBrass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.3 Kgs
Width Calc0.8 mm
Working Temperature-10°C to 200°C
