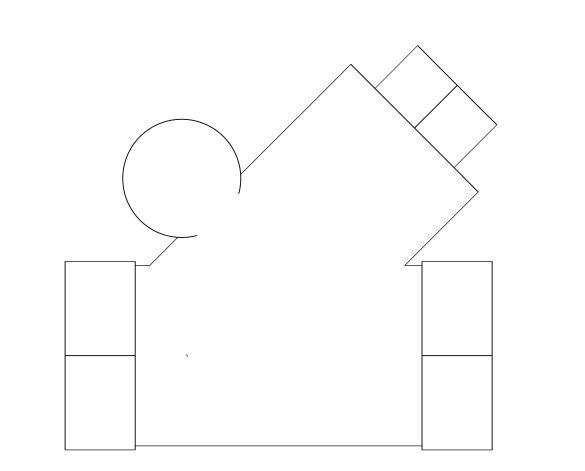

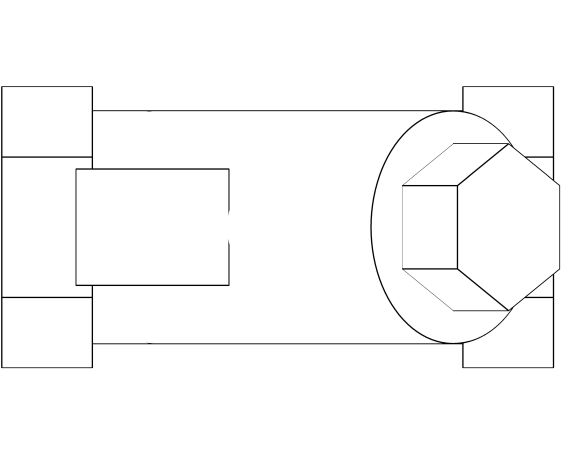

ART 384 - Check Valve

by Albion Valves

Download Add to collection

Description

Description
Bronze Swing Check Valve. Metal Seat.

Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)

Approvals/ other
WRAS Approved

Pressure
20 Bar Rated

Temperature
-10°C to +180°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

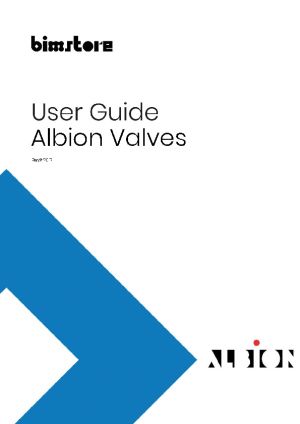

Object User Guide

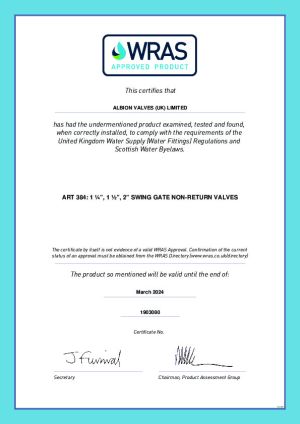

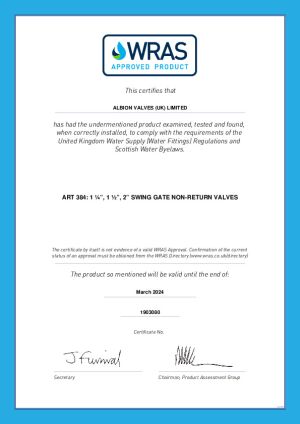

Product Certificates

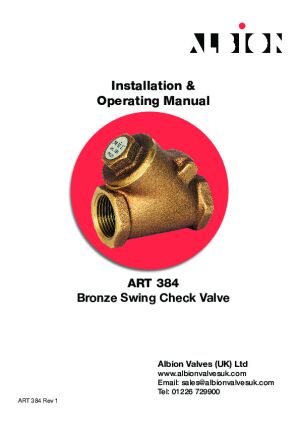

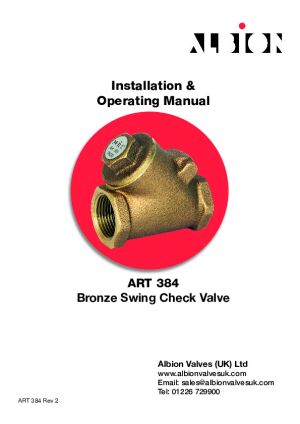

Installation Guide

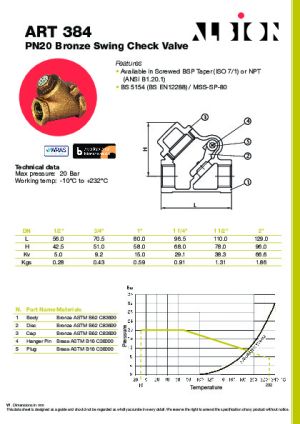

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-384/document/object-user-guide
a13 mm
Accessibility Performancen/a
Angle Offset12 mm
Assembly CodeD20
Asset TypeFixed
BIM Object NameAlbionValves_PipeAccessories_CheckValve_ART384
Circ Off Left13 mm
Circ Off Up25 mm
Circ Rad8 mm
Classification NameUniclass2015
Classification ValuePr_65_54_40_13
Code Performancen/a
ColorYellow
Conn Depth11 mm
Connection Size15 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-09-01T09:00:00
Depth Calc6 mm
DescriptionPN20 Bronze Swing Check Valve
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-384/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishBronze-ASTM B62 C83600
Flow0.0 L/s
Graden/a
H43 mm
Hex26 mm
Hexdepth9 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L56 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialBronze-ASTM B62 C83600
Max Pressure20 Bar
ModelPN20 Bronze Swing Check Valve
Model NumberDN15 - DN1/2"
Model ReferencePN20 Bronze Swing Check Valve
NBS DescriptionCheck valves
NBS Object NameAlbion Valves - Check valves
NBS Office Master Tagn/a
NBS Reference90-15-40/323
Nominal Depth26 mm
Nominal Height56 mm
Nominal Length56 mm
Pressure Drop0.0 Pa
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15 - DN1/2"
Size DN15
Spare Partsn/a
Strainer Symbol Length28 mm
Strainer Symbol Width11 mm
Thread Inch1/2
Thread Millimetre13 mm
Type CommentsDN15 - DN1/2"
Type NamePN20 Bronze Swing Check Valve
URLwww.albionvalvesuk.com/
Valve FinishBrass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.28 Kgs
Working Temperature-10°C to +180°C
