ART 50 - Ball Valve

by Albion Valves

Download Add to collection

Description

Description
2 Piece DZR Brass Ball Valve. Full Bore.

Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)

Approvals/ other
CE & WRAS Approved

Pressure
40 Bar Rated

Temperature
-20°C to +130°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

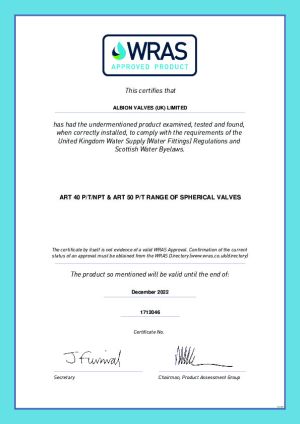

Product Certificates

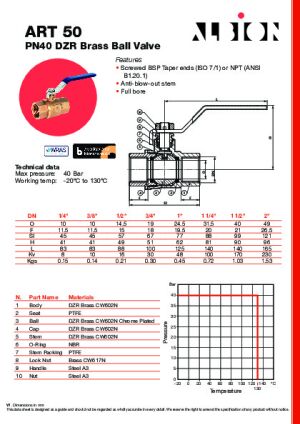

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-50/document/object-user-guide
113.5 mm
21.0 mm
311.0 mm
420.0 mm
a9.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b5.0 mm
BIM Object NameAlbionValves_PipeAccessories_BallValve_ART50
c3.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_06
Code Performancen/a
ColorYellow
Connection Radius5.0 mm
Connection Size10.0 mm
Constituentsn/a
Cover MaterialPVC Plastic - Blue
Created Bysales@albionvalvesuk.com
Created On2019-08-29 T09:00:00
d8.0 mm
DescriptionART 50 Ball Valve
DN10.0 mm
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-50/document/technical-data-sheet
Duration UnitYears
e20.0 mm
Expected Life0
F11.5 mm
Featuresn/a
FinishBrass
Graden/a
H41.0 mm
Handle MaterialSteel
Handle Placement20.0 mm
Handle Thickness2.0 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L82.0 mm
L152.0 mm
L2100.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDZR Brass
Max Pressure40 Bar
ModelART 50 PN40 DZR Brass Ball Valve
Model NumberDN 3/8"
Model ReferenceART 50 PN40 DZR Brass Ball Valve
NBS DescriptionBall valves
NBS Object NameAlbion Valves - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nut Radius6.3 mm
Nut Width9.0 mm
O10.0 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SI45.0 mm
SizeDN 3/8"
Size DN10
Spare Partsn/a
Symbol Width15.0 mm
Thread Inch3/8
Thread Millimetre9.5 mm
Type CommentsDN 3/8"
Type NameART 50 PN40 DZR Brass Ball Valve
URLwww.albionvalvesuk.com/
Valve FinishBrass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.14kg
Working Temperature-20°C to +130°C

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
