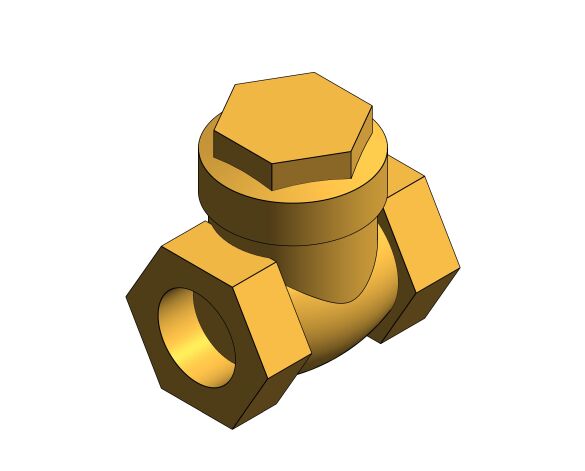

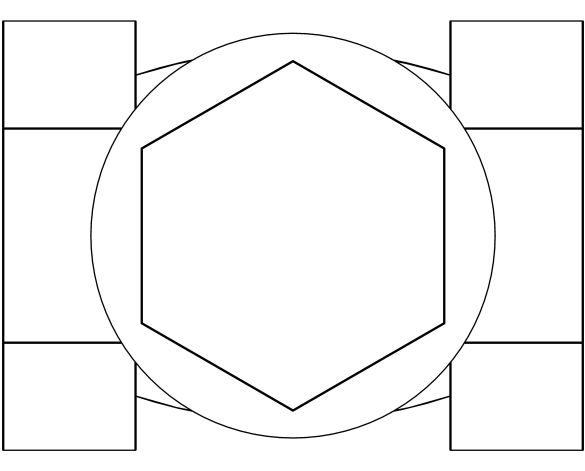

ART 84M - Check Valve

by Albion Valves

Download Add to collection

Description

Description
Brass Swing Check Valve. Metal Seat.

Connection
BSP Parallel F/F Ends (ISO 228/1)

Pressure
20 Bar Rated

Temperature
0°C to +150°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

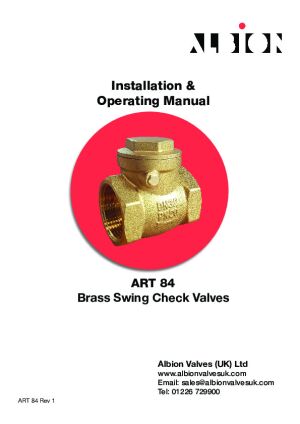

Installation Guide

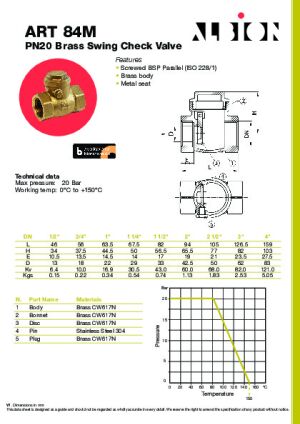

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-84m/document/object-user-guide
18 mm
216 mm
310 mm
45 mm
519 mm
a41 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b8 mm
BIM Object NameAlbionValves_PipeAccessories_CheckValve_ART84M
c6 mm
Classification NameUniclass2015
Classification ValuePr_65_54_40_13
Code Performancen/a
ColorYellow
Connection Size100 mm
Connector Offset29 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
D83 mm
DescriptionN20 Brass Swing Check Valve
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-84m/document/technical-data-sheet
Duration UnitYears
E28 mm
Expected Life0
Featuresn/a
FinishBrass
Graden/a
H103 mm
Height Calc3 mm
Hex133 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L159 mm
L250 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialBrass & Metal
Max Pressure20 Bar
ModelN20 Brass Swing Check Valve
Model NumberDN100 - DN4"
Model ReferenceN20 Brass Swing Check Valve
NBS DescriptionCheck valves
NBS Object NameAlbion Valves - Check valves
NBS Office Master Tagn/a
NBS Reference90-15-40/323
Nominal Depth133 mm
Nominal Height169 mm
Nominal Length159 mm
Production Year2019
Rad121 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100 - DN4"
Size DN100
Spare Partsn/a
Thread Inch4
Thread Millimetre102 mm
Type CommentsDN100 - DN4"
Type NameN20 Brass Swing Check Valve
URLwww.albionvalvesuk.com/
Valve FinishBrass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight4.9 Kgs
Width Calc3 mm
Working Temperature0°C to 150°C
