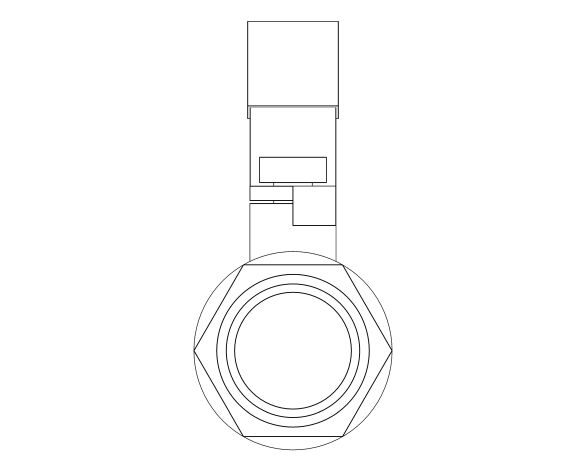

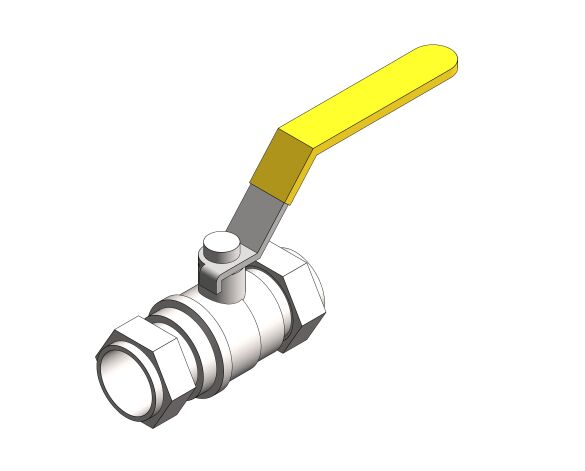

ART 89 - Ball Valve

by Albion Valves

Download Add to collection

Description

Description
Brass Ball Valve. Full Bore.

Connection
Compression Ends

Approvals/ other
CE, WRAS Approved & EN331 Gas

Pressure
25 Bar Rated - Liquids
5 Bar Rated - Gas

Temperature
-20°C to +110°C - Liquids
-20°C to +60°C - Gas

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

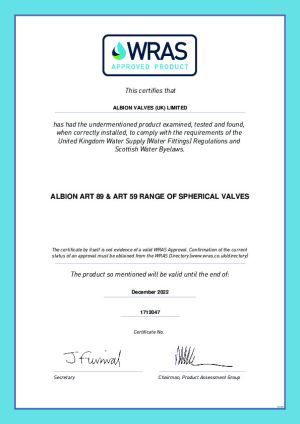

Product Certificates

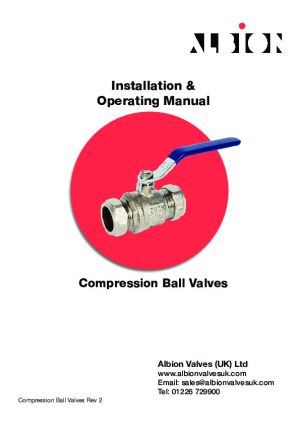

Installation Guide

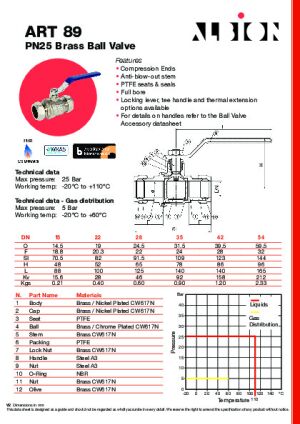

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-89/document/object-user-guide
110.00 mm
20.90 mm
318.27 mm
420.88 mm
524.00 mm
a18.33 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b13.00 mm
BIM Object NameAlbionValves_PipeAccessories_BallValve_ART89
c1.63 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_06
Code Performancen/a
ColorNickel
Connection Radius7.50 mm
Connection Size15.00 mm
Constituentsn/a
Cover MaterialPVC Plastic - Yellow
Created Bysales@albionvalvesuk.com
Created On2019-08-29 T09:00:00
d6.35 mm
DescriptionART 89 PN25 Brass Ball Valve
DN15.00 mm
DN Rad7.50 mm
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-89/document/technical-data-sheet
Duration UnitYears
e9.87 mm
Expected Life0
f1.20 mm
F18.75 mm
Featuresn/a
FinishBrass/Nickel plated
g7.80 mm
Graden/a
h3.00 mm
H52.50 mm
Handle MaterialSteel
Handle Offset5.00 mm
Handle Placement18.50 mm
Handle Thickness2.00 mm
i8.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L83.00 mm
L152.00 mm
L2100.00 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialBrass/Nickel plated
Max Pressure25 Bar
ModelART 89 PN25 Brass Ball Valve
Model NumberDN 15
Model ReferenceART 89 PN25 Brass Ball Valve
NBS DescriptionBall valves
NBS Object NameAlbion Valves - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nut Thickness10.00 mm
Nut Width24.00 mm
O14.50 mm
O Rad7.25 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SI70.50 mm
SizeDN 15
Size DN15
Spare Partsn/a
Symbol Width23.50 mm
Thread Inch1/2
Thread Millimetre15.00 mm
Type CommentsDN 15
Type NameART 89 PN25 Brass Ball Valve
URLwww.albionvalvesuk.com/
Valve FinishNickel Plating
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.23kg
Working Temperature-10°C to +110°C
