ART 140GB - Butterfly Valve [DN400-600]

by Albion Valves

Download Add to collection

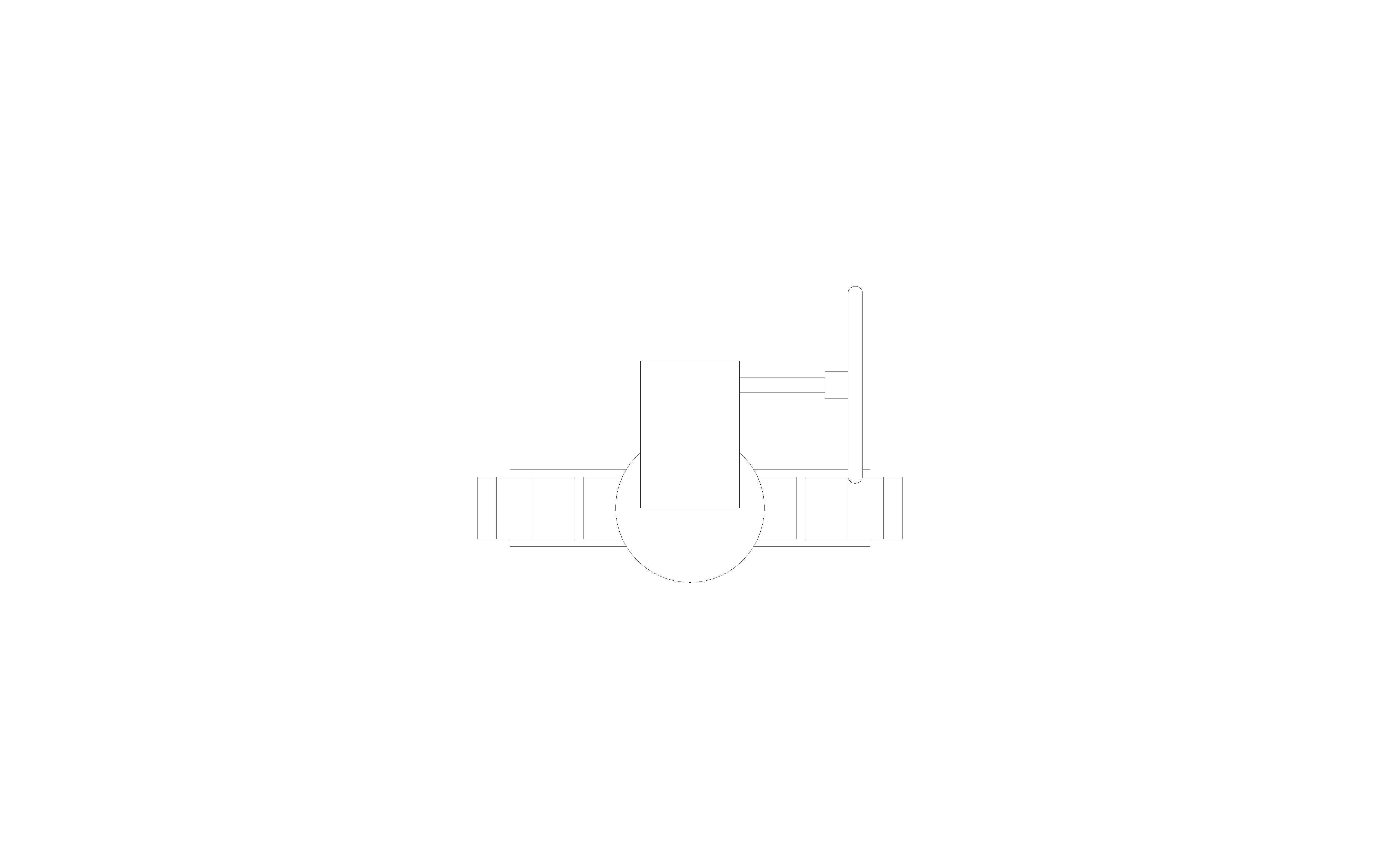

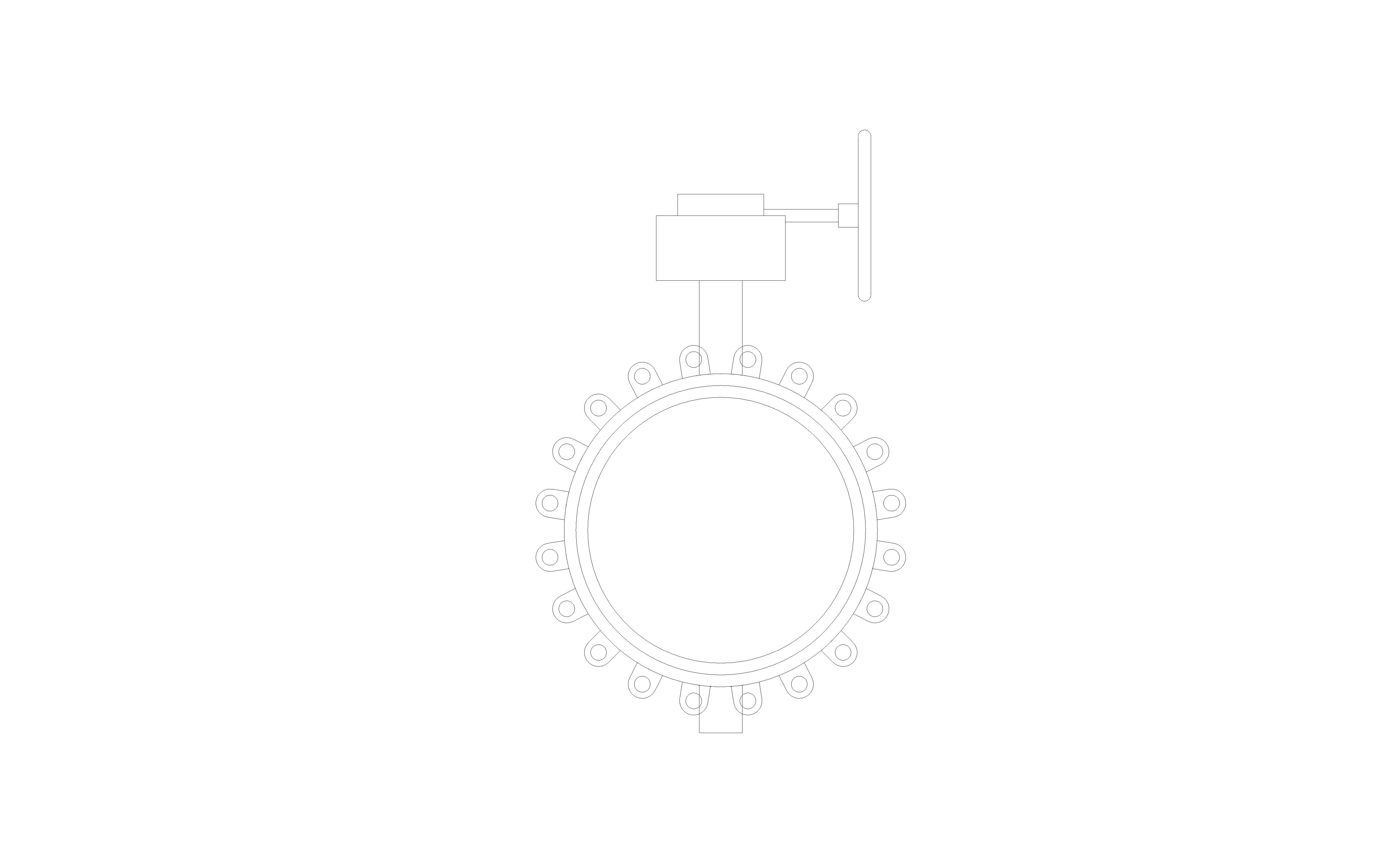

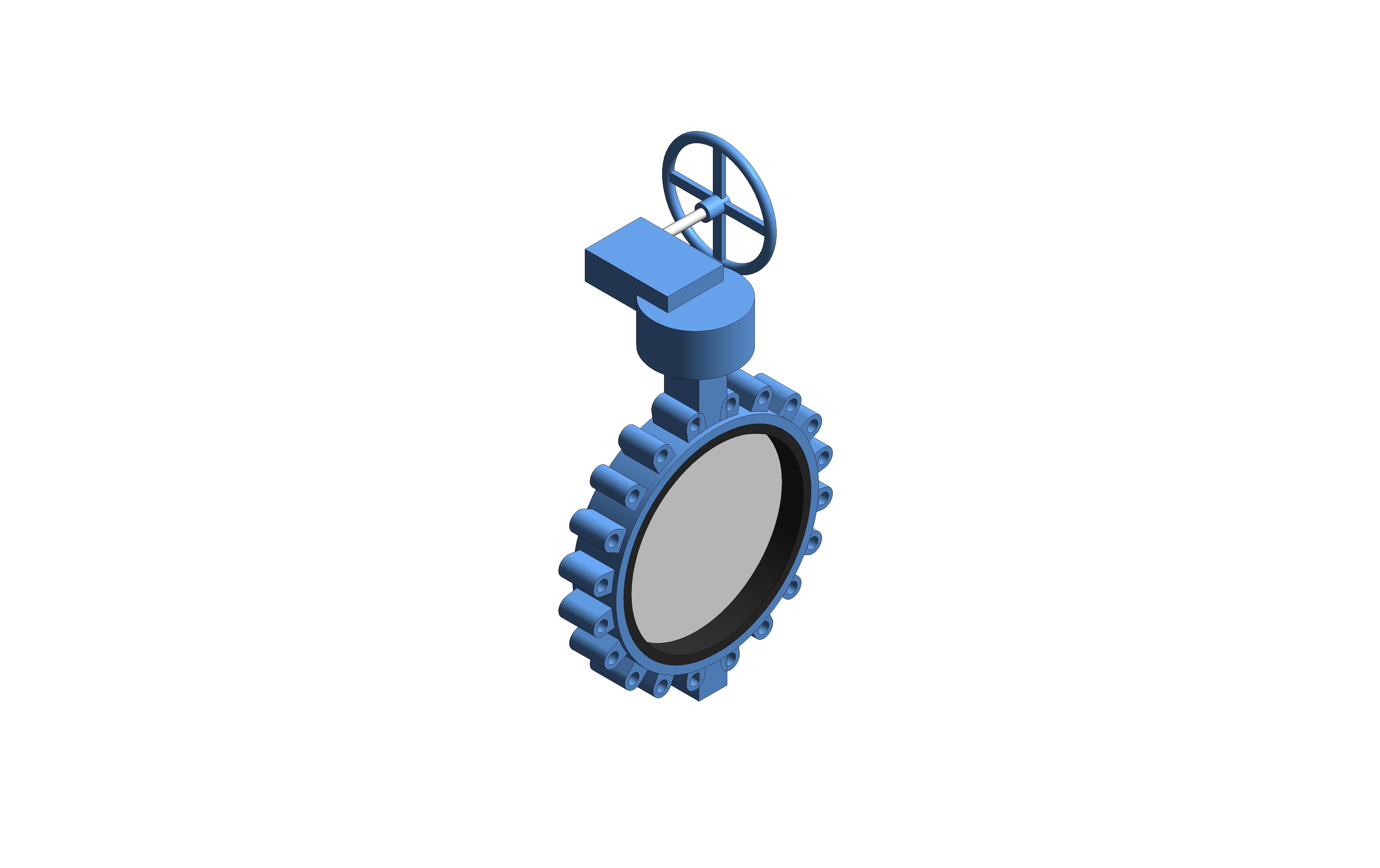

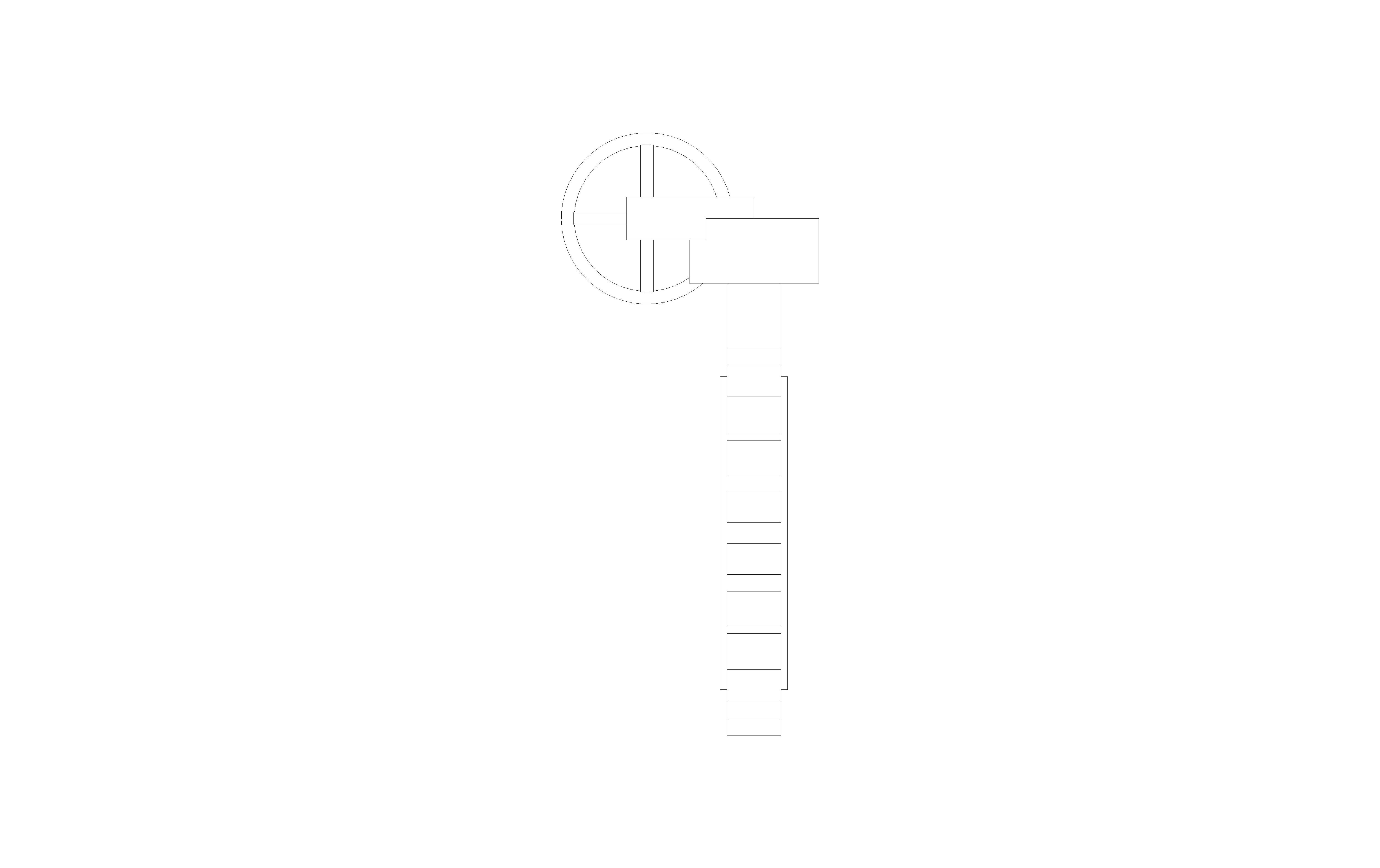

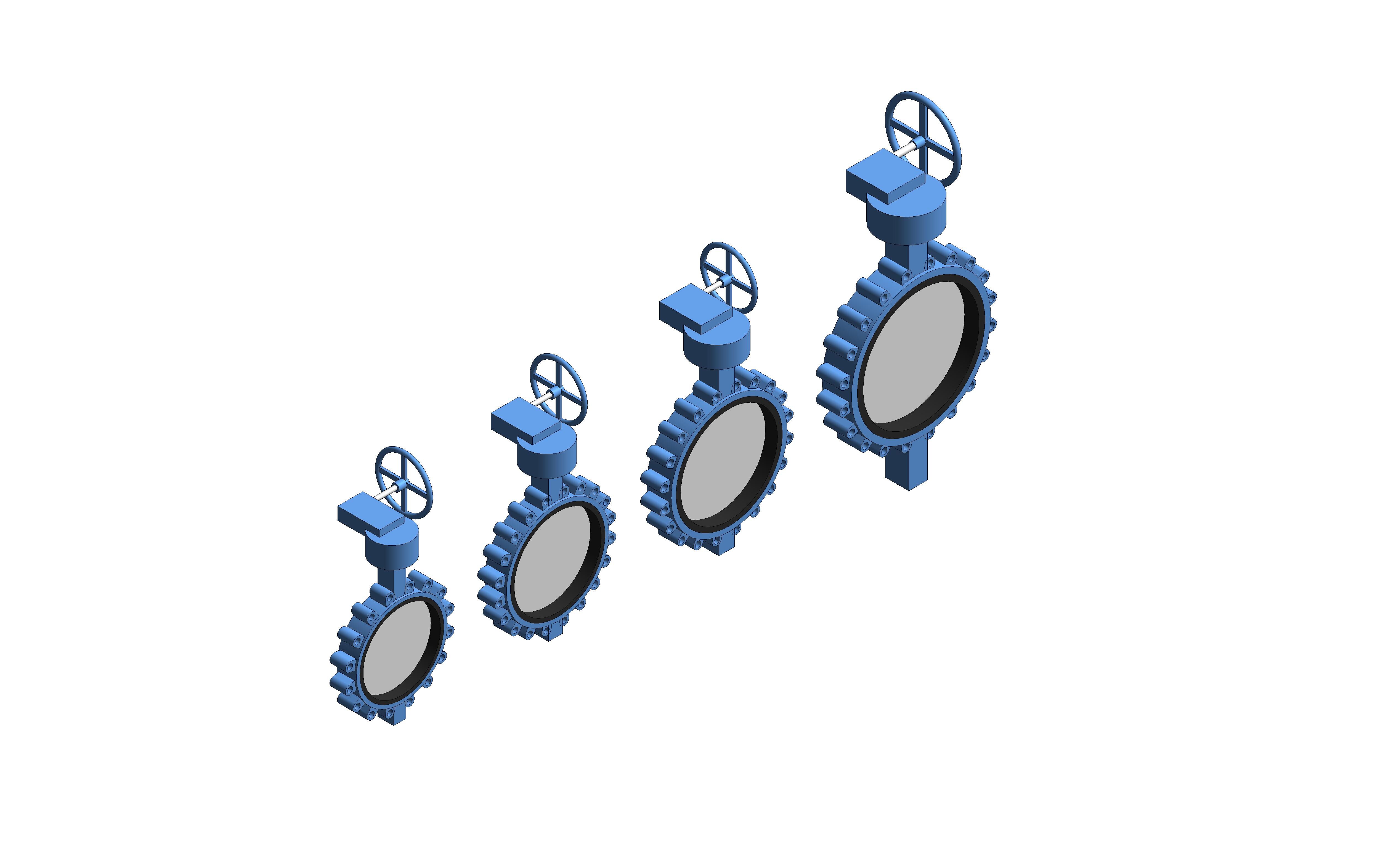

Description

Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Stainless Steel disc.

Lugged and Tapped.

16 Bar Rated.

-10°C to +110°C

Object Data

1 Revision

Last Updated

16/11/2023

Available Software

EPD

Available

Accompanying literature

Object User Guide

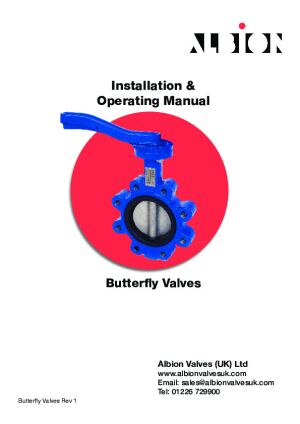

Installation Guide

Product Literature

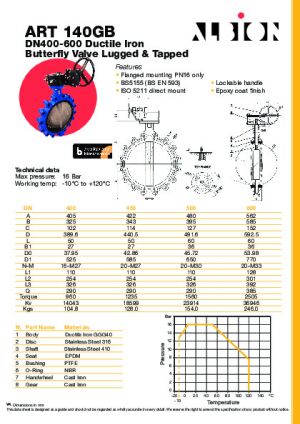

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art140gb-butterfly-valve-1/document/object-user-guide
a217.5 mm
A405.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b65.3 mm
B325.0 mm
B127.0 mm
BIM Object NameAlbionValves_PipeAccessories_ButterflyValve_ART140GB
BodyDuctile Iron GGG40
BushingPTFE
c45.0 mm
C102.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_08
Code Performancen/a
ColorBlue
Connection Size400.0 mm
Connection Size Rad200.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2023-08-07 T09:00:00
d48.0 mm
D389.6 mm
D038.0 mm
D1525.0 mm
D1 Rad262.5 mm
Default Elevation0.0 mm
DescriptionDN400-600 Ductile Iron Butterfly Valve Lugged & Tapped
DiscStainless Steel 316
Documentation Certificateswww.bimstore.co/products/art140gb-butterfly-valve-1/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/art140gb-butterfly-valve-1/document/installation-guide
Documentation Literaturewww.bimstore.co/products/art140gb-butterfly-valve-1/document/product-literature
Documentation Maintenancewww.bimstore.co/products/art140gb-butterfly-valve-1/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/art140gb-butterfly-valve-1/document/technical-data-sheet
Duration UnitYear
Expected Life0
Features• Flanged mounting PN16 only • BS5155 (BS EN 593) • Lockable handle • ISO 5211 direct mount • Epoxy coat finish
FinishDuctile Iron
GearCast Iron
Graden/a
HandwheelCast Iron
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
Kv14043
L50.0 mm
L1110.0 mm
L2254.0 mm
L3326.0 mm
Lug 10 Angle123.75 °
Lug 11 Angle123.75 °
Lug 12 Angle101.25 °
Lug 13 Angle146.25 °
Lug 14 Angle168.75 °
Lug 15 Angle168.75 °
Lug 16 Angle146.25 °
Lug 17 Angle11.25 °
Lug 18 Angle11.25 °
Lug 19 Angle11.25 °
Lug 1 Angle11.25 °
Lug 20 Angle11.25 °
Lug 2 Angle11.25 °
Lug 3 Angle78.75 °
Lug 4 Angle78.75 °
Lug 5 Angle33.75 °
Lug 6 Angle33.75 °
Lug 7 Angle56.25 °
Lug 8 Angle56.25 °
Lug 9 Angle101.25 °
Lug Hole Rad13.5 mm
Lug Thickness81.6 mm
Lug Top Rad24.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDuctile Iron
Maximum Pressure16 bar
ModelART 140GB
Model Number16"
Model ReferenceART 140GB
N-M16-M27
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameAlbion Valves - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
O-RingNBR
Outer Rad235.0 mm
Production Year2023
Q290.0 mm
Q/2145.0 mm
Referenced StandardBS5155 (BS EN 593), ISO 5211
Replacement Costn/a
SeatEPDM
ShaftStainless Steel 410
Shapen/a
Size16"
Size DN400
Spare Partsn/a
Thread Inch16
Type Comments16"
Type NameART 140GB
URLwww.albionvalvesuk.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@albionvalvesuk.com
Weight104.8kg
Working Temperature-10°C to +110°C
