Compression - Coupling

Download Add to collection

Description

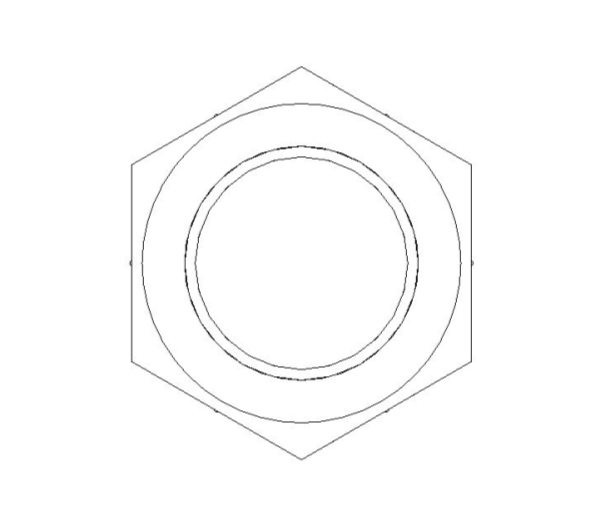

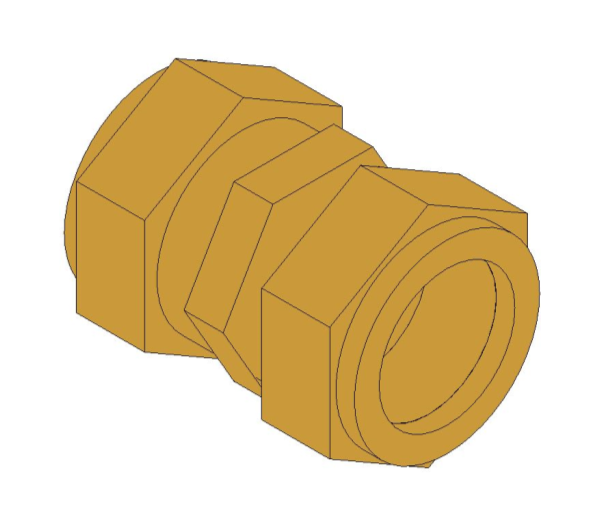

BOSS Compression Coupling

Object Data

1 Revision

Last Updated

28/01/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
AF117 mm
AirNo
ApplicationCopper Straight coupling
ApprovalWRAS approved.
Assembly CodeD2090800
Asset TypeFixed
BIM Object NameBOSS_PipeFittings_Compression_Coupling
BodyDZR
Classification NameUniclass2015
Classification ValuePr_65_52_63_18
Code PerformanceN/A
ColorCopper
ConnectionCapillary
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On27-12-2019 T09:00:00
D115 mm
D28 mm
D318 mm
DescriptionBOSS Compression Coupling 10mm
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesFittings made from CW617N European brass material, Available in sizes 8 to 54 mm, Quality assured in accordance with ISO9001:2008 from BSI,WRAS approved, BSI Kite Mark approved, Designed for jointing EN 1057 copper tubes, Manufactured to EN 1254 Part 2.
FinishDZR
Gas CombustibleNo
Gas CorrosiveNo
Gas InertNo
Gas OxygenNo
GPID CodeN/A
GradeN/A
Hex VisYes
Ifc Export AsIfcPipeFittingType.JUNCTION
Ifc Export TypeIfcPipeFittingType
K Coefficient0
K Coefficient TableReducer/Coupling/Union/Increaser
KeynoteS
L122 mm
L222 mm
L39 mm
L49 mm
L519 mm
L619 mm
L73 mm
L83 mm
Loss MethodNot Defined
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialDZR
Maximum Working Pressure16 Bar
Maximum Working Temperature110°C
ModelBOSS CompressionCoupling
Model Number62250008
Model ReferenceBOSS Compression Coupling 10mm
NBS DescriptionCopper pipeline fittings
NBS Object NameBSS BOSS Products -Copper pipeline fittings
NBS Office Master TagN/A
NBS Reference90-10-65/315
Nominal Depth17 mm
Nominal Dia10 mm
Nominal Height17 mm
Nominal Length24 mm
Nominal Width24 mm
Nut Left AF18 mm
Nut Right AF18 mm
Oct VisNo
OilNo
Pressure DropN/A
Production Year2019
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
Size15mm
Spare PartsBOSS Technical Team Tel 0116 245 5940
SteamNo
Tubing OptionsCopper
Type CommentsBOSS Compression Coupling
Type NameBOSS Compression Coupling
URLwww.bssindustrial.co.uk/products/boss
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
WeightN/A
Z11 mm
Z21 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
