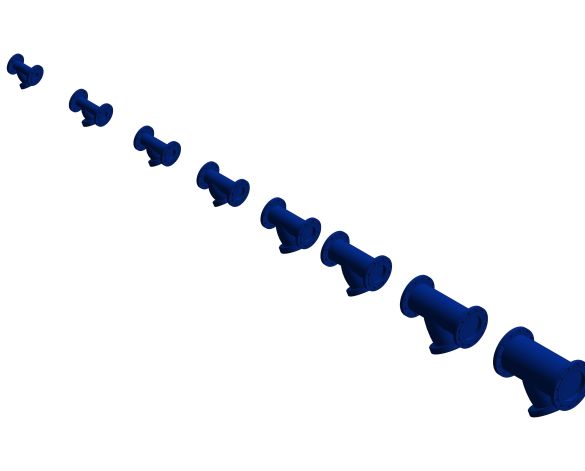

Epoxy Coated Cast Iron Y Strainer, Flanged [00/0210]

87
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

20/01/2025

Download BIM

Add to collection

Available for:

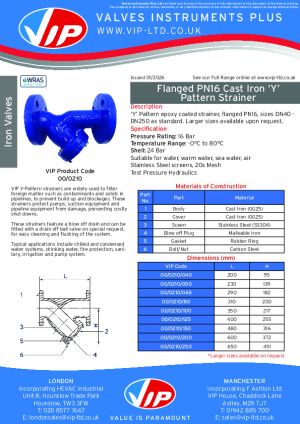

‘Y’ pattern epoxy coated strainer, flanged PN16.

Suitable for: water, oil, gas, steam.

Sizes: DN65 to DN300
(other sizes may be available upon request)

Stainless Steel Screens As Standard: 12s / 10s Mesh

Pressure / Temperature Rating: 16 Bar / -10 to 80°C

Test Pressure Hydraulic: Shell 24 Bar

End Connections: Flanged to BS 4504 PN16

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/56c257ec-a5a2-4e98-a8b0-cdec5d9556d8/document/object-user-guide
Accessibility Performancen/a
Assembly CodeC1030
Asset TypeFixed
Ball Valve Inside Diameter110 mm
Ball Valve Inside Radius55 mm
Ball Valve Outside Diameter116 mm
Ball Valve Outside Radius58 mm
BIM Object NameVIP_CastIronValve_YPatternStrainer_PN16_(00-0210)
Classification NameUniclass 2015
Classification ValuePr_65_57_96_99
Code Performancen/a
ColorBlue
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-01-13T09:00:00
Default Elevation0 mm
DescriptionVIP Y-Pattern strainers are widely used to filter foreign matter such as contaminants and solids in pipelines, to prevent build up and blockages. These strainers protect pumps, suction equipment and pipeline equipment from damage, preventing costly shut downs.
DN100 mm
Documentation Certificateswww.bimstore.co/products/56c257ec-a5a2-4e98-a8b0-cdec5d9556d8/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/56c257ec-a5a2-4e98-a8b0-cdec5d9556d8/document/installation-guide
Documentation Literaturewww.bimstore.co/products/56c257ec-a5a2-4e98-a8b0-cdec5d9556d8/document/product-literature
Documentation Maintenancewww.bimstore.co/products/56c257ec-a5a2-4e98-a8b0-cdec5d9556d8/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/56c257ec-a5a2-4e98-a8b0-cdec5d9556d8/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Flange Diameter220 mm
Flange End Radius80 mm
Flange Holes Center178 mm
Flange Holes Diameter18 mm
Flange Length21 mm
Flange Outside Diameter140 mm
Graden/a
H217 mm
Half Length175 mm
Holes Angle22.50 °
Ifc Export AsIfcFilterType
Ifc Export TypeIfcFilterType.STRAINER
KeynoteS
L13 mm
L2104 mm
L3124 mm
Length350 mm
ManufacturerVIP
Manufacturer NameVIP
Materialn/a
Max Working Pressure16 Bar
Max Working Temperature-10°C - 110°C
Model00/0210 VIP Epoxy Coated Cast Iron Y Strainer, WRAS Approved, Flanged PN16
Model Number00-0210-100
Model ReferenceCast Iron Y Strainer
NBS DescriptionY-type water strainers
NBS Noten/a
NBS Object NameVIP - Y-type water strainers
NBS Office Master Tagn/a
NBS Reference90-10-60/400
No Holes8
Nominal Depth220 mm
Nominal Height220 mm
Nominal Length350 mm
Primary MaterialVIP - Cast Iron - Epoxy Coated Blue
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Spare Partssales@vip-ltd.co.uk
Tee Angle54.42 °
Tee Centre98 mm
Tee Flange Tk38 mm
Tee Length181 mm
Type Comments00-0210-100
Type NameDN100
URLwww.vip-ltd.co.uk/Valves/VIP_Cast_Iron_Range/00_0210/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
