Compression - Male Female Adapter Tap Ext

by BOSS

Download Add to collection

Description

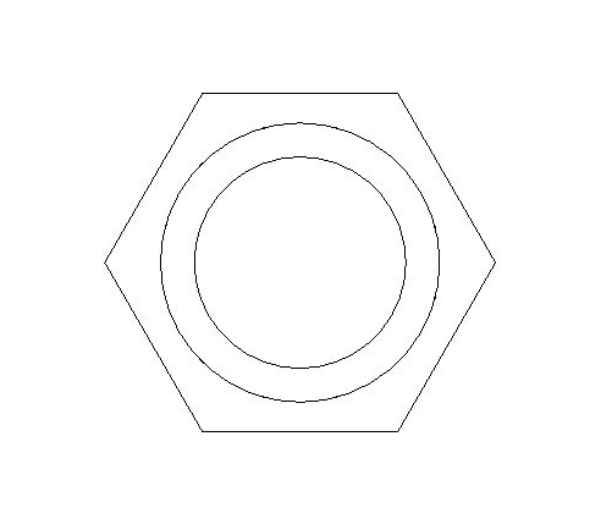

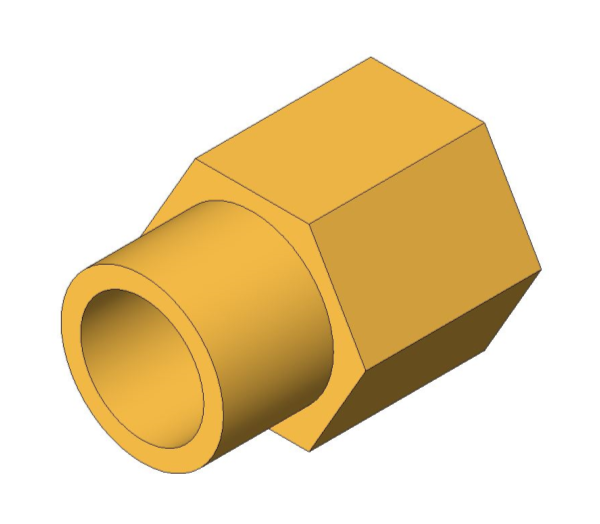

BOSS Compression Male x Female Adaptor for Tap Extension

Object Data

1 Revision

Last Updated

28/01/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
AF124 mm
AirNo
ApplicationCompression MxF Adapter for Tap Extension
ApprovalWRAS approved.
Assembly CodeD2090800
Asset TypeFixed
BIM Object NameBOSS_PipeFittings_Compression_MaleFemaleTapExt
BodyDZR
Classification NameUniclass2015
Classification ValuePr_65_52_63_18
Code PerformanceN/A
ColorDZR
ConnectionCompression
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On2019-12-27 T09:00:00
D121 mm
D515 mm
DescriptionBOSS Compression Male x Female Adaptor for Tap Extension 1/2"
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesFittings made from CW617N European brass material, Available in sizes 8 to 54 mm, Quality assured in accordance with ISO9001:2008 from BSI,WRAS approved, BSI Kite Mark approved, Designed for jointing EN 1057 copper tubes, Manufactured to EN 1254 Part 2.
FinishDZR
Gas CombustibleNo
Gas CorrosiveNo
Gas InertNo
Gas OxygenNo
GPID CodeN/A
GradeN/A
Ifc Export AsIfcPipeFittingType.CONNECTOR
Ifc Export TypeIfcPipeFittingType
K Coefficient0
K Coefficient TableReducer/Coupling/Union/Increaser
KeynoteS
L116 mm
L218 mm
Loss MethodNot Defined
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialDZR
Maximum Working Pressure16 Bar
Maximum Working Temperature110°C
ModelBOSS Compression Male x Female Adaptor for Tap Extension
Model Number62240002
Model ReferenceBOSS Compression Male x Female Adaptor for Tap Extension 1/2"
NBS DescriptionCopper pipeline fittings
NBS Object NameBSS BOSS Products -Copper pipeline fittings
NBS Office Master TagN/A
NBS Reference90-10-65/315
Nominal Depth28 mm
Nominal Dia15 mm
Nominal Height28 mm
Nominal Length35 mm
Nominal Thread Dia20 mm
Nominal Width35 mm
OilNo
Pressure DropN/A
Production Year2019
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
Size1/2"x1/2"
Spare PartsBOSS Technical Team Tel 0116 245 5940
SteamNo
Thread Pos7 mm
Tubing OptionsCopper
Type CommentsBOSS Compression Male x Female Adaptor for Tap Extension
Type NameBOSS Compression Male x Female Adaptor for Tap Extension
URLwww.bssindustrial.co.uk/products/boss
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
WeightN/A
