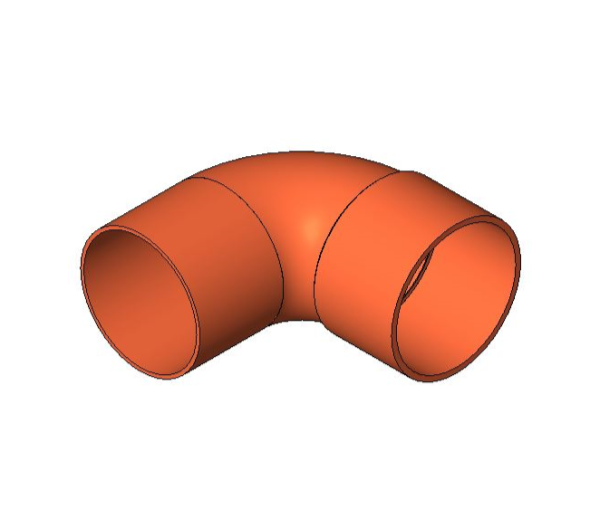

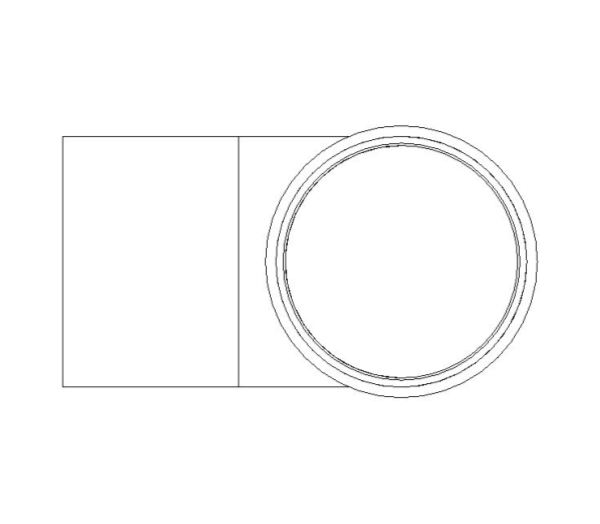

End Feed Fitting - Street Elbow

Download Add to collection

Description

BOSS Endfeed Street Elbow

Object Data

1 Revision

Last Updated

30/01/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
AirYes
ApplicationCopper Capillary Fittings
ApprovalWRAS approved.
Assembly CodeD2090800
Asset TypeFixed
BIM Object NameBOSS_PipeFittings_EndFeedFittings_StreetElbow
BodyCopper
Classification NameUniclass2015
Classification ValuePr_65_52_63_18
Code PerformanceN/A
ColorCopper
ConnectionCapillary
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On2019-11-17 T09:00:00
D117 mm
D213 mm
D413 mm
DescriptionBOSS Endfeed Street Elbow 15mm
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesFittings are manufactured to EN 1254. Available on sizes 6-54 mm. Quality assured in accordance with ISO9001:2008 from BSI. Copper fittings has been engineered for performance and backed by independent kitemark certification and WRAS approvals.
FinishCopper
Gas CombustibleYes
Gas CorrosiveYes
Gas InertNo
Gas OxygenNo
GPID CodeN/A
GradeN/A
Ifc Export AsIfcPipeFittingType.BEND
Ifc Export TypeIfcPipeFittingType
Inner Rad6 mm
K Coefficient0
K Coefficient TableRegular 45, 90 and 180 Elbow
KeynoteS
L123 mm
L226 mm
Loss MethodNot Defined
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialCopper
Maximum Working Pressure25 Bar
Maximum Working Temperature110°C
ModelBOSS Endfeed Street Elbow 15mm
Model Number62250447
Model ReferenceBOSS Endfeed Street Elbow 15mm
NBS DescriptionCopper pipeline fittings
NBS Object NameBSS BOSS Products -Copper pipeline fittings
NBS Office Master TagN/A
NBS Reference90-10-65/315
Nominal Depth58 mm
Nominal Dia15 mm
Nominal Height93 mm
Nominal Length93 mm
Nominal Rad8 mm
Nominal Width93 mm
OilYes
Pressure DropN/A
Production Year2019
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
Size15mm
Spare PartsBOSS Technical Team Tel 0116 245 5940
SteamYes
Tubing OptionsN/A
Type CommentsBOSS Endfeed Street Elbow 15mm
Type NameBOSS Endfeed Street Elbow 15mm
URLwww.bssindustrial.co.uk/products/boss
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
WeightN/A
Z111 mm
Z211 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
