Bronze – FIG 25SMLS Lockshield Pattern BS 5154/B PN20 [Gate Valves]

Download Add to collection

Description

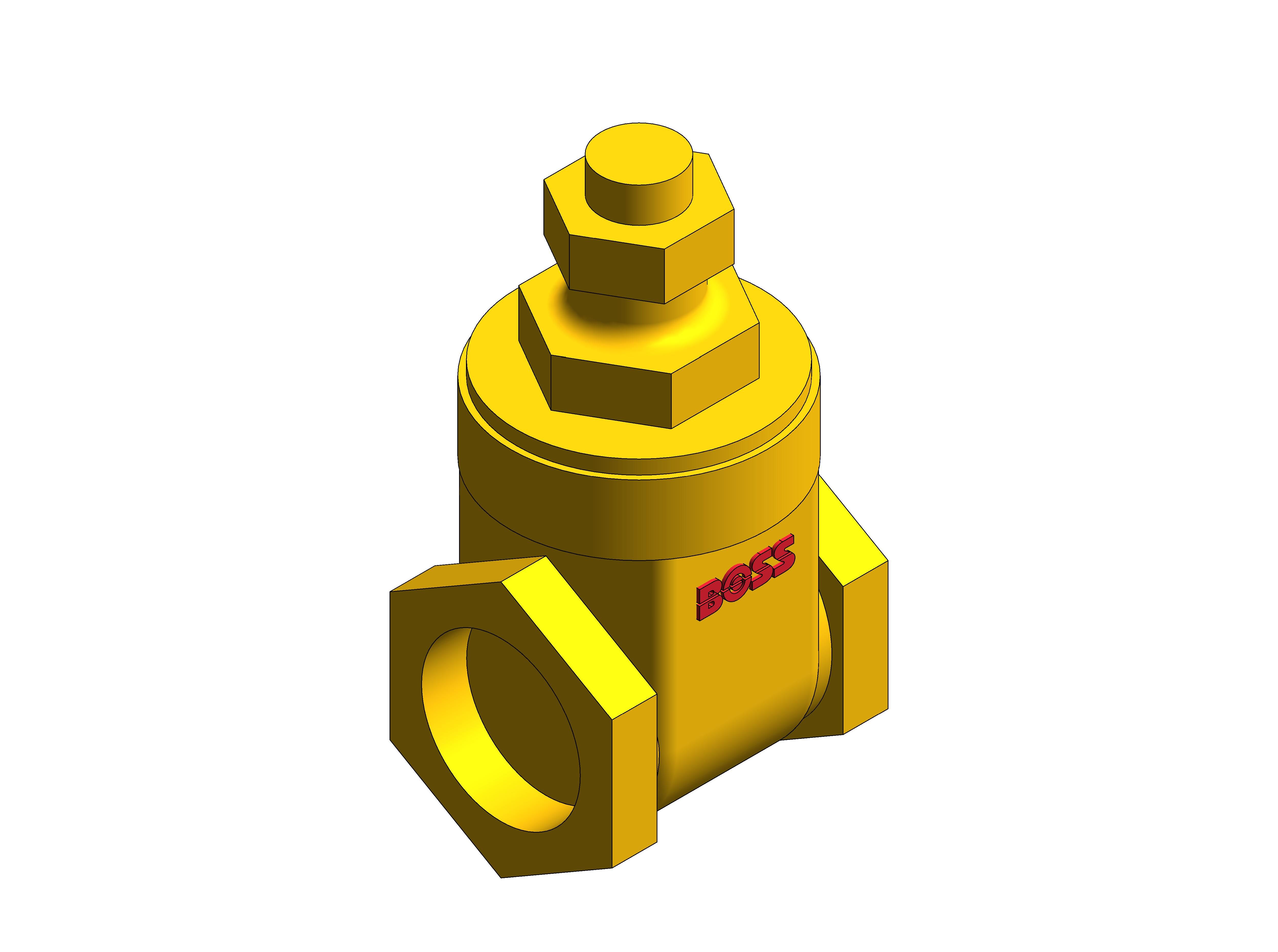

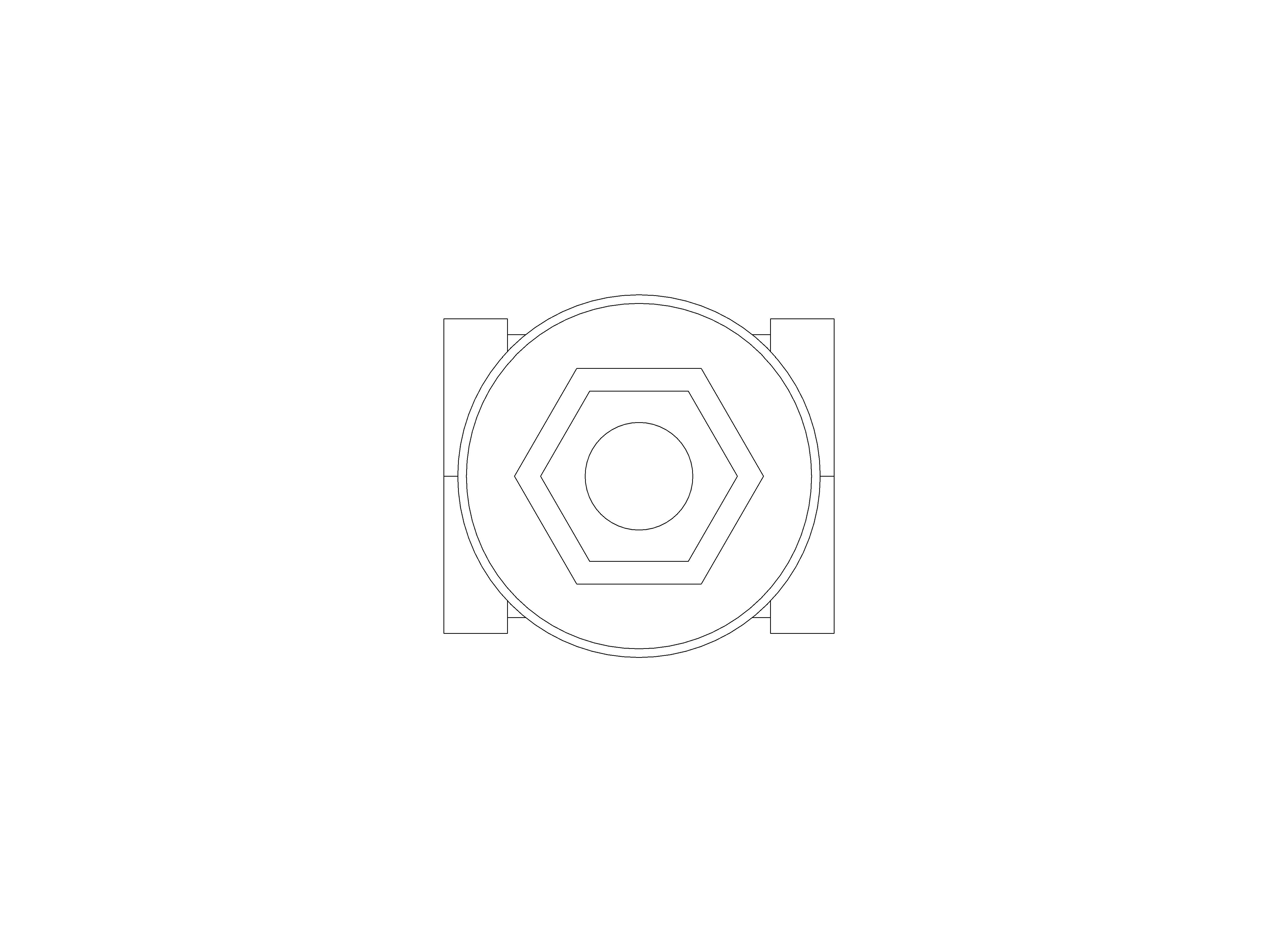

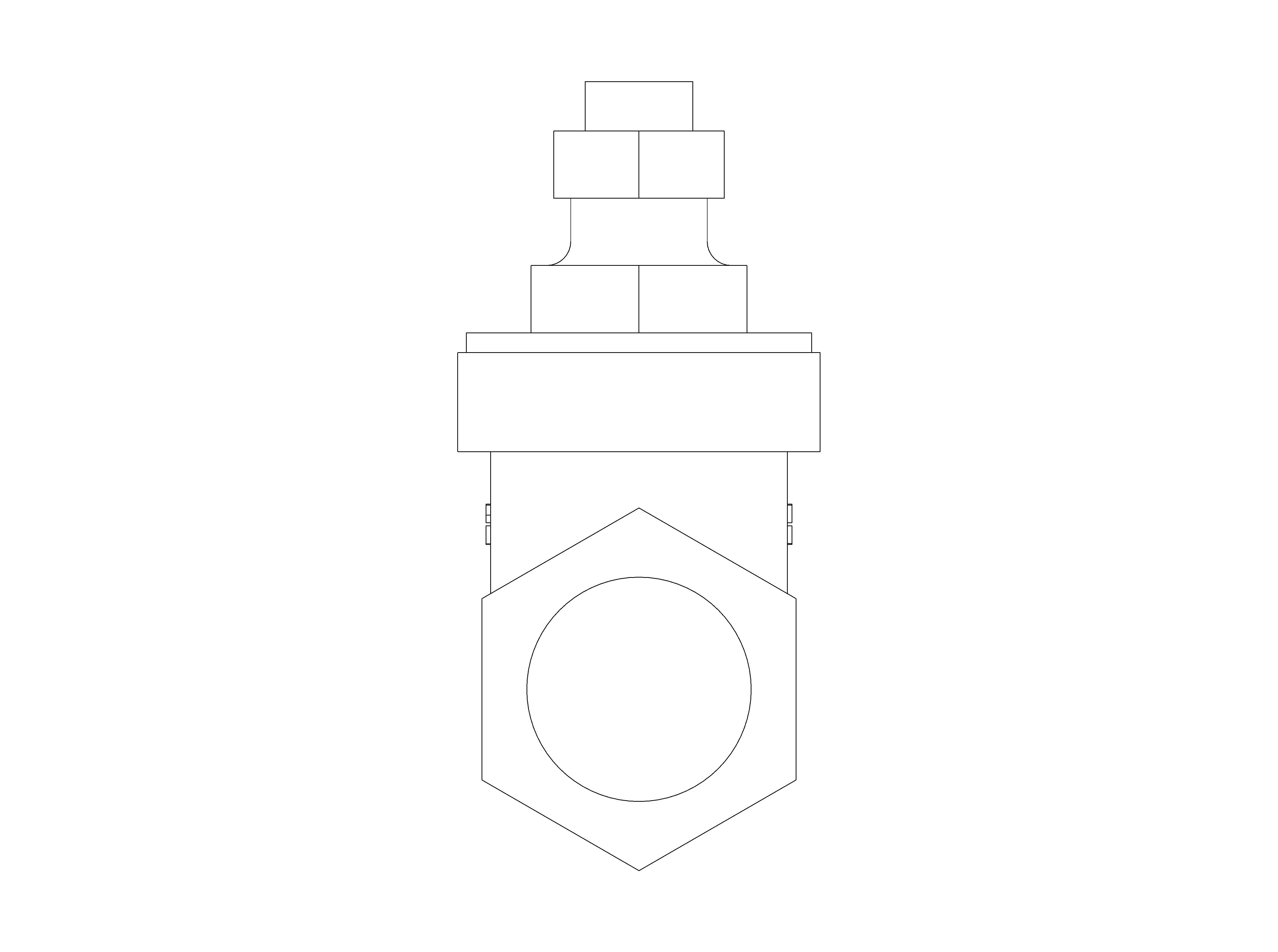

Bronze Gate Valve - 25SMLS

This download is for the Bronze Gate Valve - 25SMLS from BOSS Valves. A BSS Company.

The download includes 1no Revit Pipe Accessory family (.rfa file), 1no Type Catalogue (.txt file) containing 6no SKUs and 1no Userguide (.pdf file). Ensure the Userguide is read and understood prior to loading the Pipe Accessory family to an MEP System.

Object Data

1 Revision

Last Updated

21/05/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRL
_Authorized ByKA
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD30
Asset TypeFixed
BIM Object NameBOSS_PipeAccessory-GateValve-Bronze-25SMLS
BodyBronze BS EN 1982 CC491K
Body Centre Corner Radius4.409090910000 mm
Body Centre Depth54.810000000000 mm
Body Centre Width40.563636372000 mm
Body Lower Curve Radius27.405000000000 mm
Body Radius26.100000000000 mm
Body Width44.090909100000 mm
BonnetBronze BS EN 1982 CC491K
Bonnet Lower Radius33.647727270000 mm
Bonnet Lower Thickness17.000000000000 mm
Bonnet Upper Radius32.045454542857 mm
Bonnet Upper Thickness3.400000000000 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_15
Code Performancen/a
ColorBronze
ConnectionsScrewed BSPT Female
Connection Size40.000000000000 mm
Connection Size Radius20.000000000000 mm
Constituentsn/a
Created Byenquiries@bssgroup.com
Created On1900-12-31T23:59:59
DescriptionBronze Gate Valve 25SMLS PN20 from BOSS
DiscBronze BS EN 1982 CC491K
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2079
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
End Connector Diameter58.000000000000 mm
End Connector Thickness14.204545450000 mm
Expected Life0
Extidentifiern/a
Featuresn/a
FinishBronze
Flow0.000000000000 L/s
GlandBrass BS EN 12164 CW614N
Graden/a
H115.000000000000 mm
Ifc Export AsIfcValve
Ifc Export Typen/a
K Coefficient161.93
KeynoteS
L72.500000000000 mm
Lock NutBrass BS EN 12164 CW614N
LockshieldBrass BS EN 12164 CW614N
Loss Method2
ManufacturerBOSS
Manufacturer NameBOSS
MaterialBronze
Model25SMLS - Gate Valve
Model Number22065559
Model Reference25SMLS - Gate Valve
NBS DescriptionCopper alloy gate valves
NBS Noten/a
NBS Object NameBOSS - Copper alloy gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/342
Nominal Depth0.000000000000 mm
Nominal Height115.000000000000 mm
Nominal Length72.500000000000 mm
PackingGRAPHITE
Packing Nut Diameter25.000000000000 mm
Packing Nut Height15.000000000000 mm
Packing Ring Diameter40.056818178571 mm
Packing Ring Height15.000000000000 mm
Packing Ring Neck Diameter10.000000000000 mm
Packing Ring Neck Height11.300000000000 mm
Pressure Rating9bar @ 180degC / 20bar @ -10 to 100degC
Product Code22065559
Production Year2017
Referenced StandardBS5154/B
Replacement Costn/a
Shapen/a
Size1 1/2"
Spare Partsn/a
StemBrass BS EN 12164 CW614N
Stem Diameter8.000000000000 mm
Stem Height12.000000000000 mm
Tag Number22065559
Topof Stem41.000000000000 mm
Type Comments1 1/2"
Type Name1 1/2"
URLwww.bssindustrial.co.uk/Product-Centre/Valves-Filtration
Valve MaterialBOSS_Bronze
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Weight_Kg1.11

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
