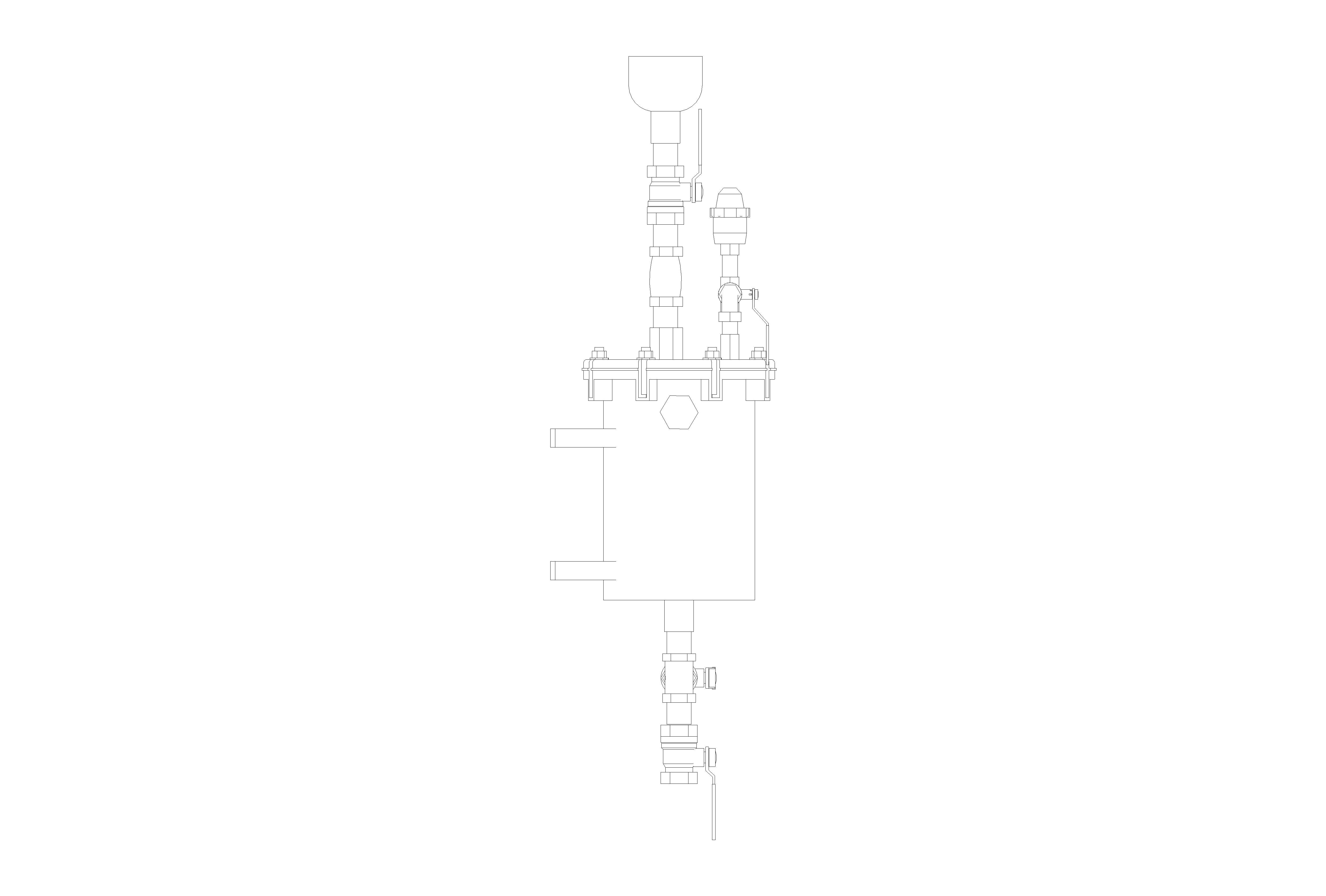

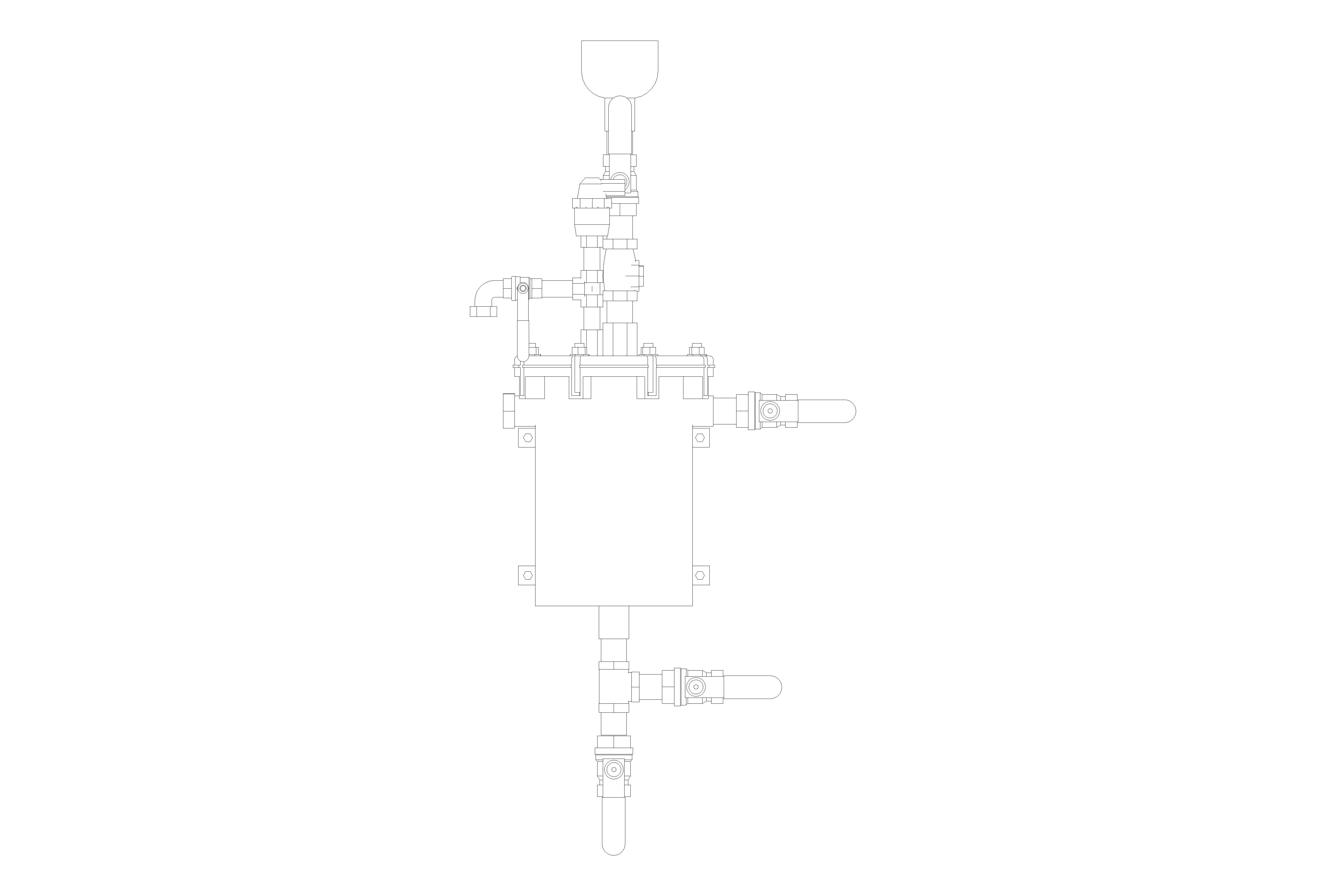

Side Stream Water Filters - Xpot6

by BOSS

Download Add to collection

Description

This download is for the Side Stream Water Filters - Xpot6 from BOSS Valves. A BSS Company.

The download includes 1no Revit Pipe Accessory family (.rfa file), 1no Type Catalogue (.txt file) containing 1no SKUs and 1no Userguide (.pdf file). Ensure the Userguide is read and understood prior to loading the Pipe Accessory family to an MEP System.

Object Data

1 Revision

Last Updated

29/05/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorCL
_Bim Spec Guid0
_Bimstore Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD30
Asset TypeFixed
BIM Object NameBOSS_PipeAccessory_SideStreamWaterFilters_Xpot6
Classification NameUniclass 2015
Classification ValuePr_65_57_96_77
Code Performancen/a
ColorGrey
Connection Size15 mm
Constituentsn/a
Created Byenquiries@bssgroup.com
Created On1900-12-31T23:59:59
Default Elevation1219 mm
DescriptionThe X-POT Range originates from the X-POT Compact, a 3 in 1 alternative to a air and dirt separator, magnetic filter and dosing pot.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2079
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
Expected Life0
Featuresn/a
FinishVessel: Polished Inside and Out
Flow Rate0.0 L/s
Graden/a
Ifc Export AsIfcFlowControllerType
Ifc Export TypeIfcFlowMeterTypeEnum.WATERMETER
KeynoteS
ManufacturerBOSS
Manufacturer NameBOSS
MaterialVessel: 304 S/S. Internal Magnet Grate: 316 S/S
ModelXPOT-6 - 16910626
Model Number16910626
Model ReferenceXPOT-6
NBS DescriptionSide stream water filters
NBS Object NameBOSS - Filtration units
NBS Reference90-15-95/370
Nominal Depth305 mm
Nominal Height915 mm
Nominal Length460 mm
Product Code16910626
Production Year2018
Referenced Standardn/a
Replacement Cartridge Filter 0.5 Micron(Boxed 4 to a box) - 16910541
Replacement Cartridge Filter 20 Micron(Boxed 4 to a box) - 16910264
Replacement Cartridge Filter 50 Micron(Boxed 4 to a box) - 16910253
Replacement Cartridge Filter 5 Micron(Boxed 4 to a box) - 16910530
Replacement Costn/a
Replacement Inhibitor 10 L Drum16910574
Replacement Inhibitor 20 L Drum16910840
Replacement Inhibitor 5 L Drum16910563
Shapen/a
Sizen/a
Spare Partsn/a
Temperature Deg C0 to 95
Type CommentsXpot-6 water treatment
Type NameXPOT-6
URLwww.bssindustrial.co.uk/Product-Centre/Valves-Filtration
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Weight_Kg34 full / 21 empty
