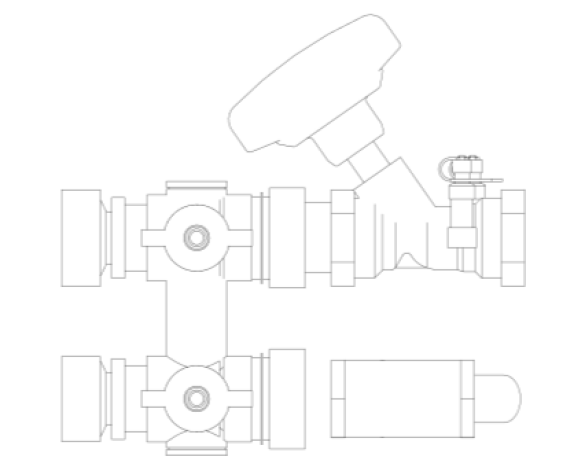

C266 / H266 - Hook-Up Valve

by Hattersley

Download Add to collection

Description

C266 and H266 - Ultra compact, prefabricated unit. Provides flow control, measurement, flushing and isolation. Can be tailored to customers specifications.

Features & Benefits:

The Hook-Up is compact and lightweight
The standardised components with guaranteed tested performance
Integrated union joints allow for custom alignment
80mm supply/return centres allow for ease of lagging
Simple on-site connection
Fast connection of one complete assembly Comprising of two T-ported ball valves
Allows easy back flushing, forward flushing and isolation
The position of the T-handle gives clear indication of flow/bypass mode
Designed around 3/4" full bore ball for optimum flow
Can be adapted to 1/2", 3/4" and 1" end connections
Simple attachment to existing hanger

Object Data

1 Revision

Last Updated

28/03/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Authorized ByRyan Lashley
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Annual MaintenanceStrainer & Drain cleaned
Assembly CodeD2090800
Asset TypeFixed
BIM Object NameHattersley_PipeAccessory_HookUpValve_(C266-H266)
CE ApprovalPressure Equipment Directive 2014/68/EU. Product is for use on Group 2 liquids only, and therefore falls into Article 4 Paragraph 3 'Sound Engineering Practice'.
Classification NameUniclass2015
Classification ValuePr_65_54_40_16
Code Performancen/a
Colorn/a
Connection Diameter15 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On03-01-2018T09:00:00
DescriptionFlow management system for fan coil units. Combines the essential control components and connecting pipework into one compact, fully assembled unit ready to connect. The Z3000 is compact and lightweight. The bypass valve unit comprises two T Ball valves. The strainer unit has integral filter and pressure test point, plus drain cock/vent facility. Balancing valve is of proven high quality and accuracy.
Dim A200 mm
Dim B175 mm
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2449
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2449
Duration UnitYears
Expected Life0
FeaturesThe Hook-Up is compact and lightweight. The standardised components with guaranteed tested performance. Integrated union joints allow for custom alignment. 80mm supply/return centres allow for ease of lagging. Simple on-site connection. Fast connection of one complete assembly.
FinishBronze to BSEN 1982 CC49IK
FittingC266-H266 : DN15 x DN15
FODRV_A87 mm
FODRV_DN15
Graden/a
Gross Weight1.65 kg
H Body_DN15
H Body Connection Dia15 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.MIXING
KeynoteS12
ManufacturerHattersley
Manufacturer NameHattersley
MaterialBronze to BSEN 1982 CC49IK
ModelHook-Up Valve - C266 / H266
Model NumberDN15 x DN15
Model ReferenceHook-Up Valve - C266 / H266
NBS DescriptionControl valves
NBS Object NameHattersley - Control valves
NBS Office Master Tagn/a
NBS Reference90-15-40/329
Nominal Depth135 mm
Nominal Height110 mm
Nominal Length200 mm
Operation And Maintenance Manualhattersley-futureflow.com/product/hook-up/366p
Production Year2018
Product Literaturehattersley-futureflow.com/product/hook-up/c266-h266cranefs-probalance.com/product/dominator/z300hattersley-futureflow.com/product/hook-up/c266-h266
Product Model NumberC266 & H266
Product RangeManual Hook-Up II (With drain and strainer)
Referenced Standardn/a
Reference StandardBS EN 1567
Replacement Costn/a
Shapen/a
Shipping Weight2kg
Sizen/a
Spare Partsn/a
Strainer_A71 mm
Strainer_DN15
T Height16 mm
T Width19 mm
Text Height14 mm
Text Size15 mm
Text Width7 mm
Type CommentsDN15 x DN15
Type NameHook-Up Valve - C266 / H266
URLwww.hattersley.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@hattersley.com
