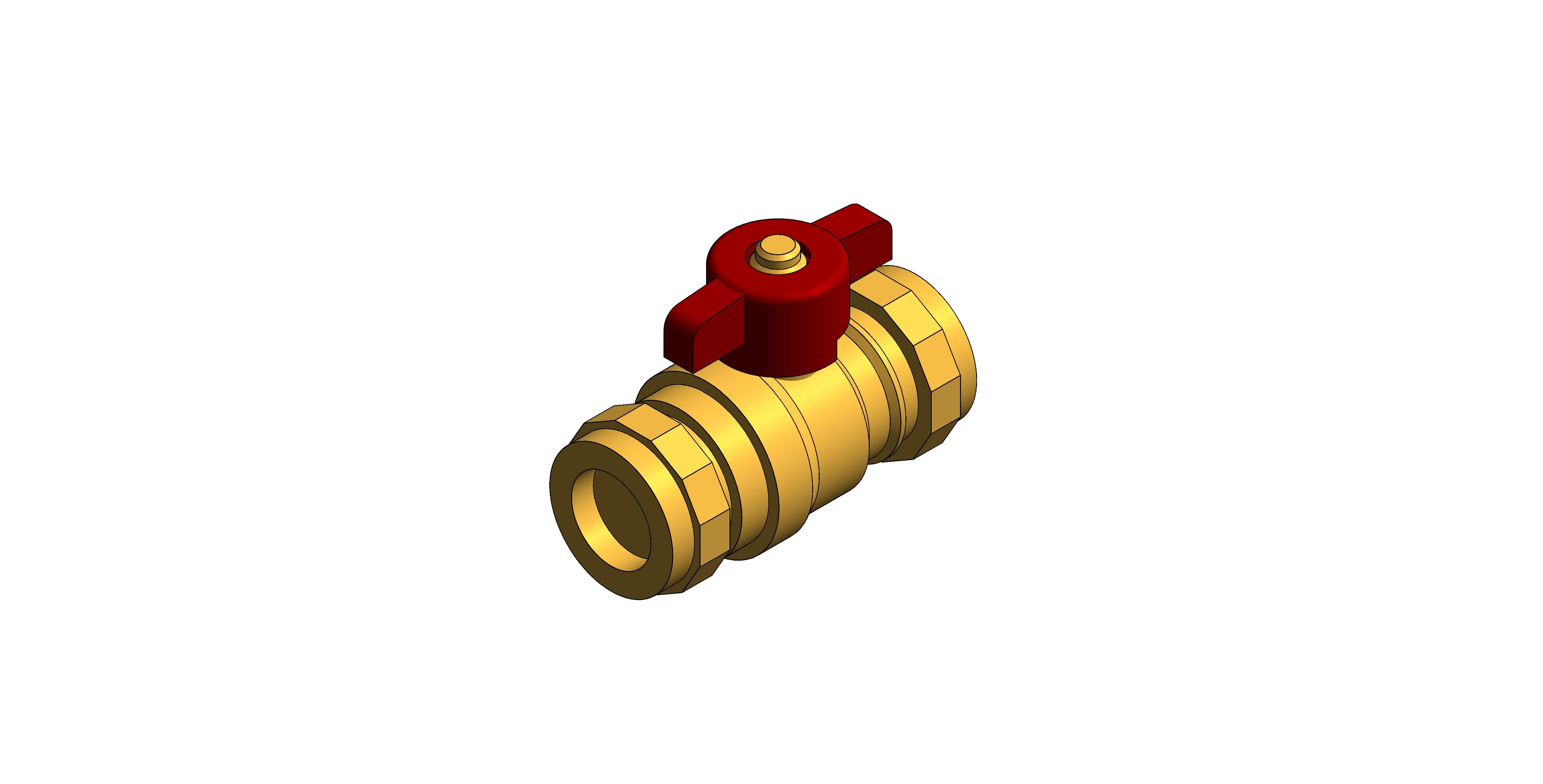

D171CT - T-Handle Ball Valve - Bronze

by Crane Fluid Systems

Download Add to collection

Description

D171CT - 15mm to 28mm

T-Handle Ball Valve - Bronze

PN16 Compression Ended T-Handle Ball Valve

Features & Benefits

Designed to be light, compact and easy to install and operate
WRAS approved
Features improved leak resistance and reduced risk of damage from over tightening.

Size	15mm to 28mm
Pressure Rating	PN16
End Connections	Compression ends to suit BS EN 1057: Half hard R250 copper tube
Material	Bronze

Object Data

1 Revision

Last Updated

06/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Certificates

Installation Guide

Maintenance Information

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-d171ct/document/object-user-guide
15mmYes
22mmNo
28mmNo
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameCraneFS_BallValve_THandle_D171CT
BSYes
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
Colorn/a
Connection Calc14 mm
Connection Size15 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
DescriptionD171CT - T-Handle Ball Valve - Bronze
Dmm55 mm
Documentation Certificateswww.bimstore.co/products/crane-fs-d171ct/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-d171ct/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-d171ct/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-d171ct/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-d171ct/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handle Turning Calc28 mm
Hmm42 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient20
KeynoteS
L1mm6 mm
L2mm55 mm
Lmm80 mm
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD171CT - T-Handle Ball Valve - Bronze
Model NumberD171CT
Model ReferenceD171CT - T-Handle Ball Valve - Bronze
NBS DescriptionBall valves
NBS Noten/a
NBS Object NameCrane FS - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size15mm
Sizemm8 mm
Spare Partsn/a
Type CommentsD171CT - T-Handle Ball Valve - Bronze
Type NameD171CT - T-Handle Ball Valve - Bronze
URLwww.cranefs.com/
Valve MaterialBrass, Soft Yellow
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
