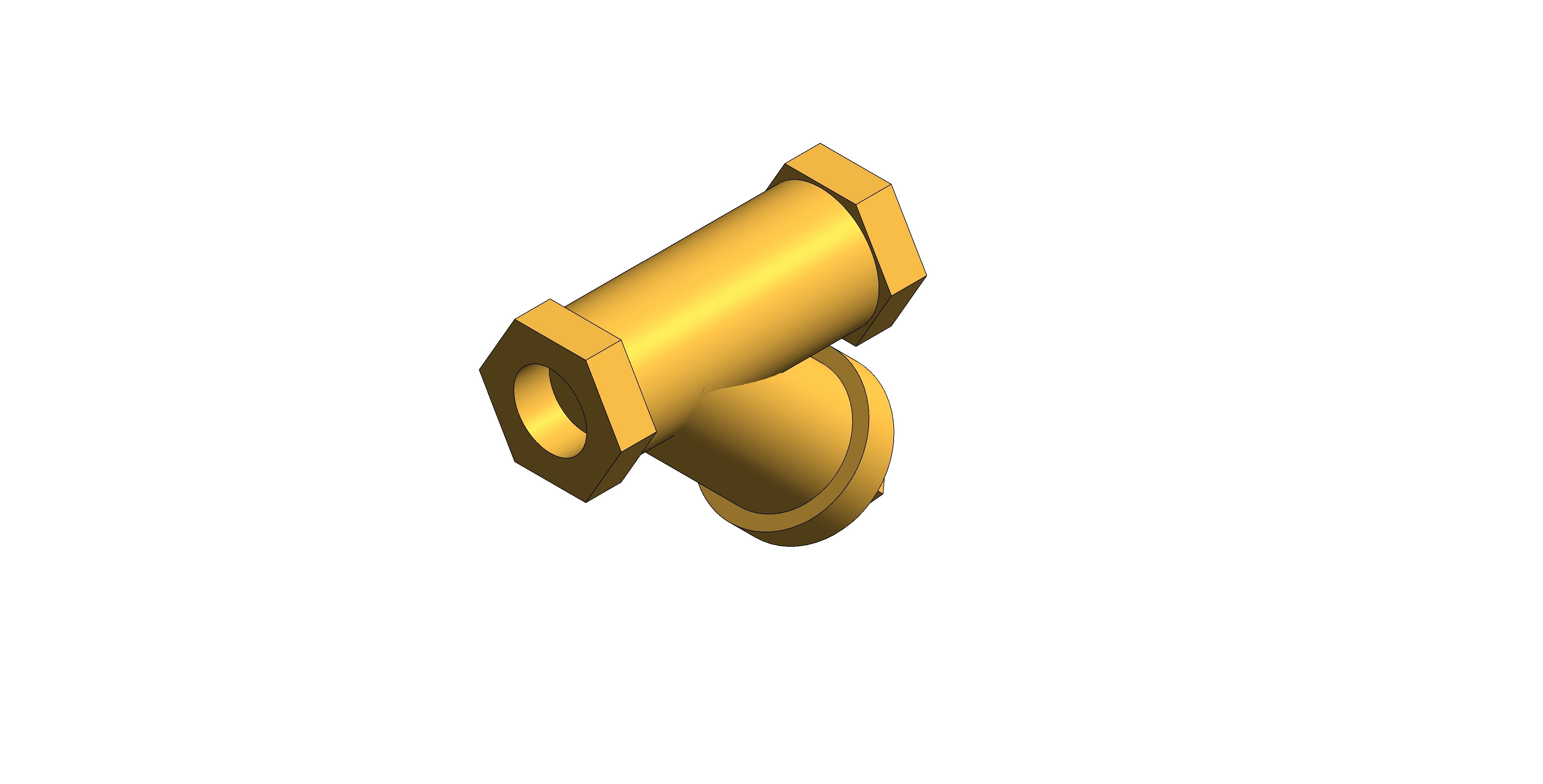

D297 - Strainer - Bronze

by Crane Fluid Systems

Download Add to collection

Description

D297

Strainer - Bronze

PN32 Bronze Strainer

Features & Benefits

Eliminate the problems caused by foreign matter within piping systems
Perforated stainless steel screen with robust design, low flow resistance and high quality materials
WRAS approved for use on hot and cold water systems up to 85˚C
0.75mm screen perforations

Pressure Rating	PN32
End Connections	UK: Taper threaded to BS EN 10226-2 US: ANSI B1.20.1
Material	Bronze

Object Data

1 Revision

Last Updated

06/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Certificates

Installation Guide

Maintenance Information

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-d297/document/object-user-guide
A148.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B63.0 mm
Base Hex Thickness11.0 mm
BIM Object NameCraneFS_Strainer_D297
Body Calc30.0 mm
C87.0 mm
Cap Dia15.7 mm
Cap Thickness2.7 mm
Classification NameUniclass 2015
Classification ValuePr_65_55_86_99
Code Performancen/a
Colorn/a
Connection Size40.0 mm
Connection Size Calc20.0 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
D103.0 mm
DescriptionD297 - Strainer - Bronze
Documentation Certificateswww.bimstore.co/products/crane-fs-d297/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-d297/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-d297/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-d297/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-d297/document/technical-data-sheet
Downstand Body Dia29.9 mm
Downstand Hex Dia54.8 mm
Downstand Hex Dia Calc27.4 mm
Downstand Length120.0 mm
Downstand Offset26.0 mm
Duration UnitYear
E134.0 mm
Expected Life0
Featuresn/a
Finishn/a
G73.0 mm
G Rad36.5 mm
Graden/a
H322.0 mm
Hex Dia Calc63.0 mm
Hex Thickness16.9 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcFilterTypeEnum.STRAINER
K Coefficient0
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD297 - Strainer - Bronze
Model NumberD297
Model ReferenceD297 - Strainer - Bronze
NBS DescriptionY-type strainers
NBS Noten/a
NBS Object NameCrane FS - Y-type strainers
NBS Office Master Tagn/a
NBS Reference90-20-80/320
Nominal Depth73.0 mm
Nominal Height135.0 mm
Nominal Length148.0 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Spare Partsn/a
Type CommentsD297 - Strainer - Bronze
Type NameD297 - Strainer - Bronze
URLwww.cranefs.com/
Valve MaterialCrane - Metal - Bronze
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.

Comments

You must log in to write a comment

Login or Join

Ermintrude Bimstore Cow on 03 November 2016

Tom,
thanks for your query. This valve is available in 1/2", 3/4", 1", 1 1/4", 1 1/2", 2". We will update the listing to reflect this.

Thanks Tom - happy downloading!
