D340 - Draining Tap - DZR Brass

5.3k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

13/09/2022

Download BIM

Add to collection

Available for:

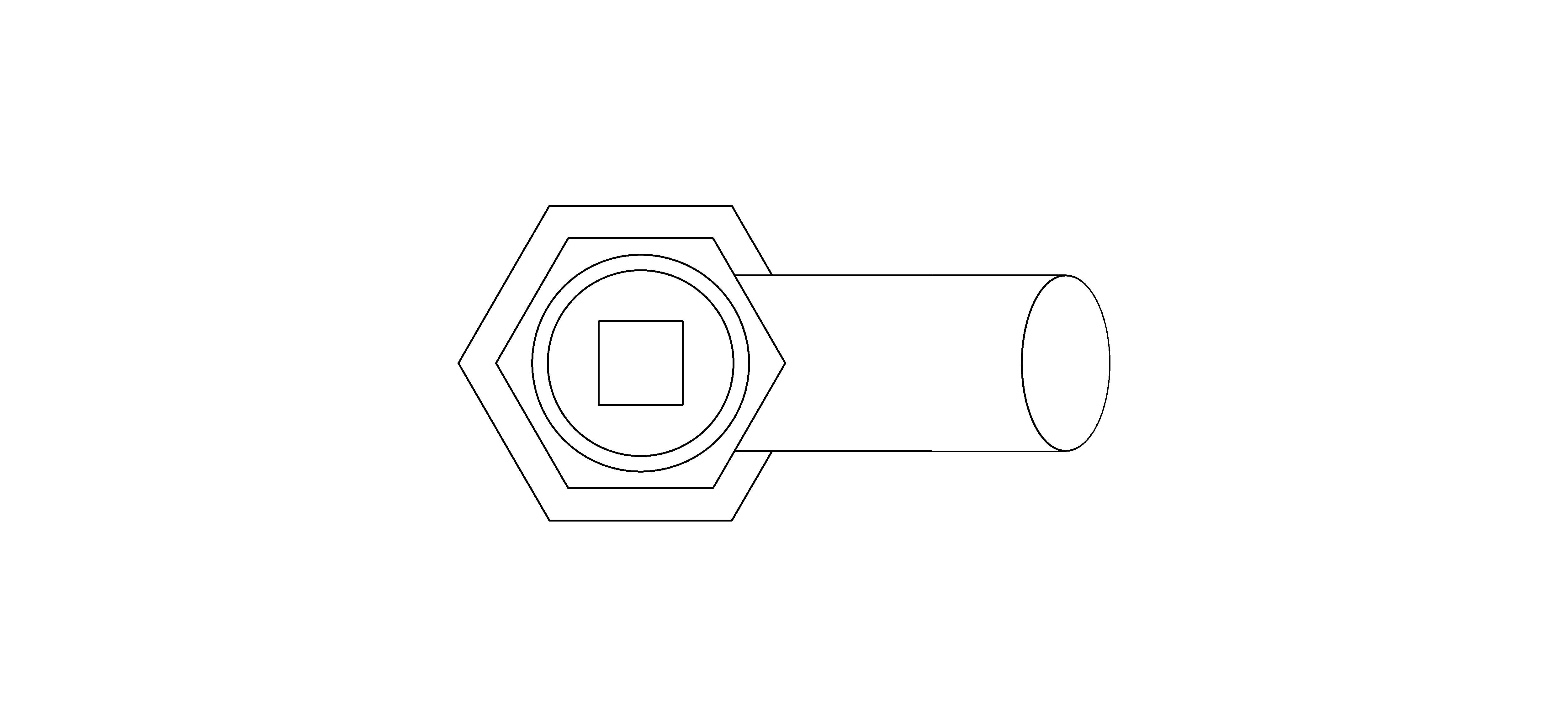

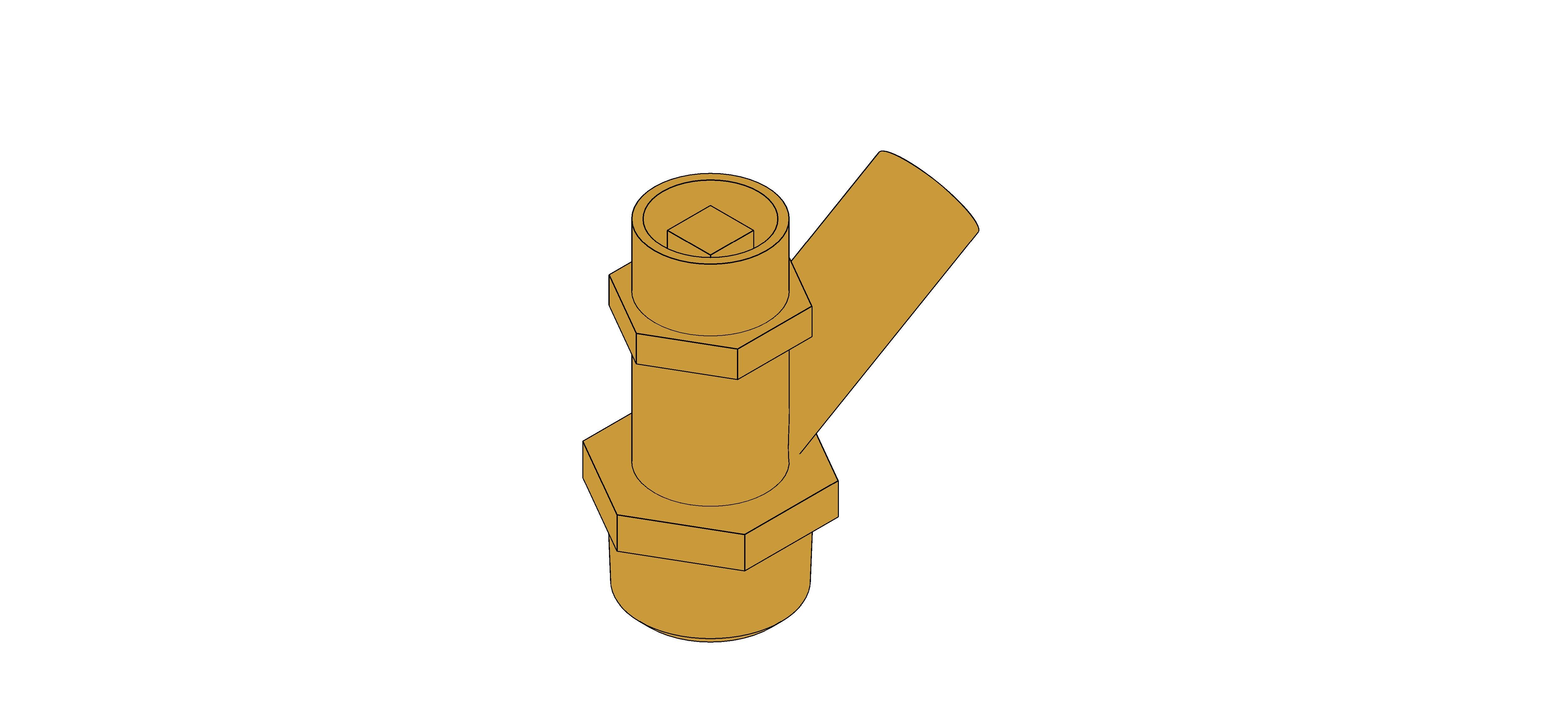

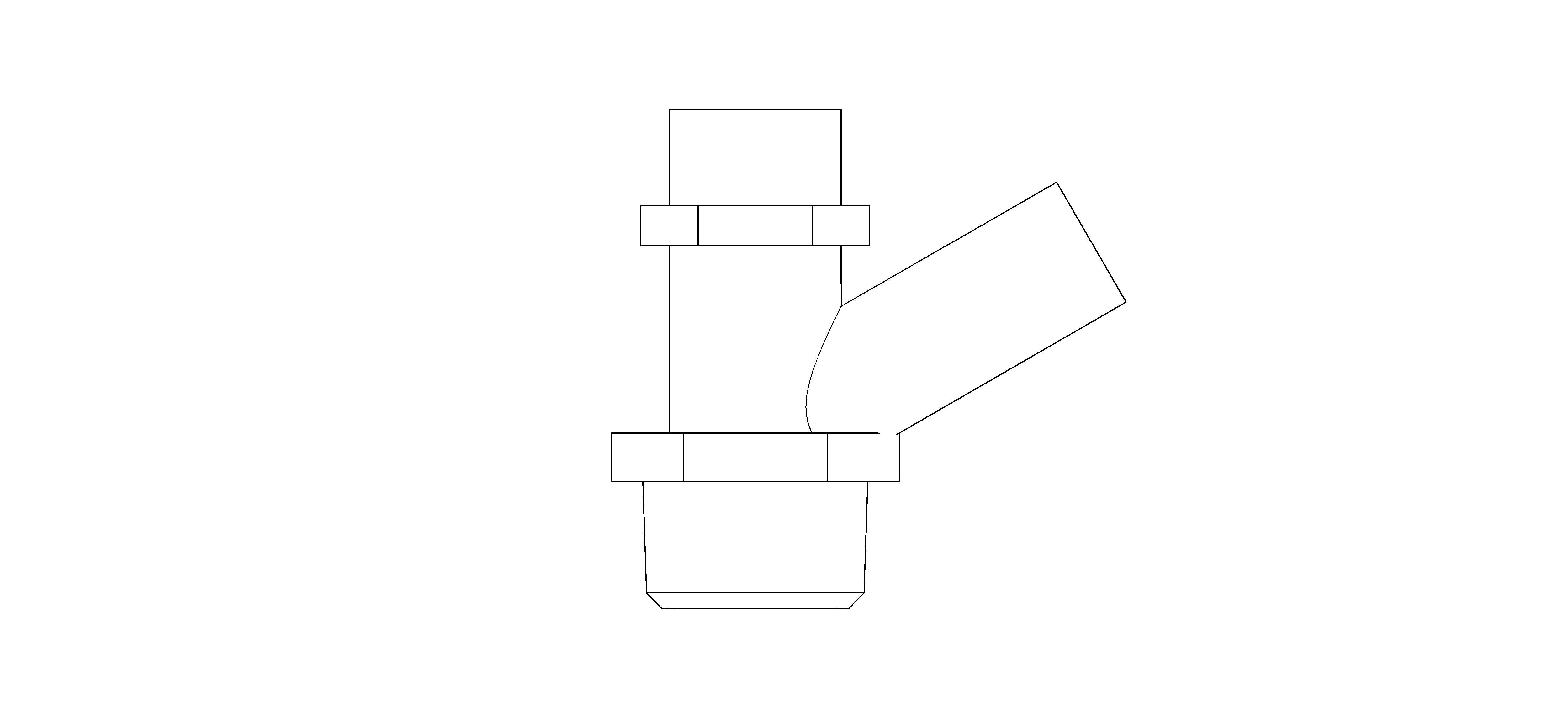

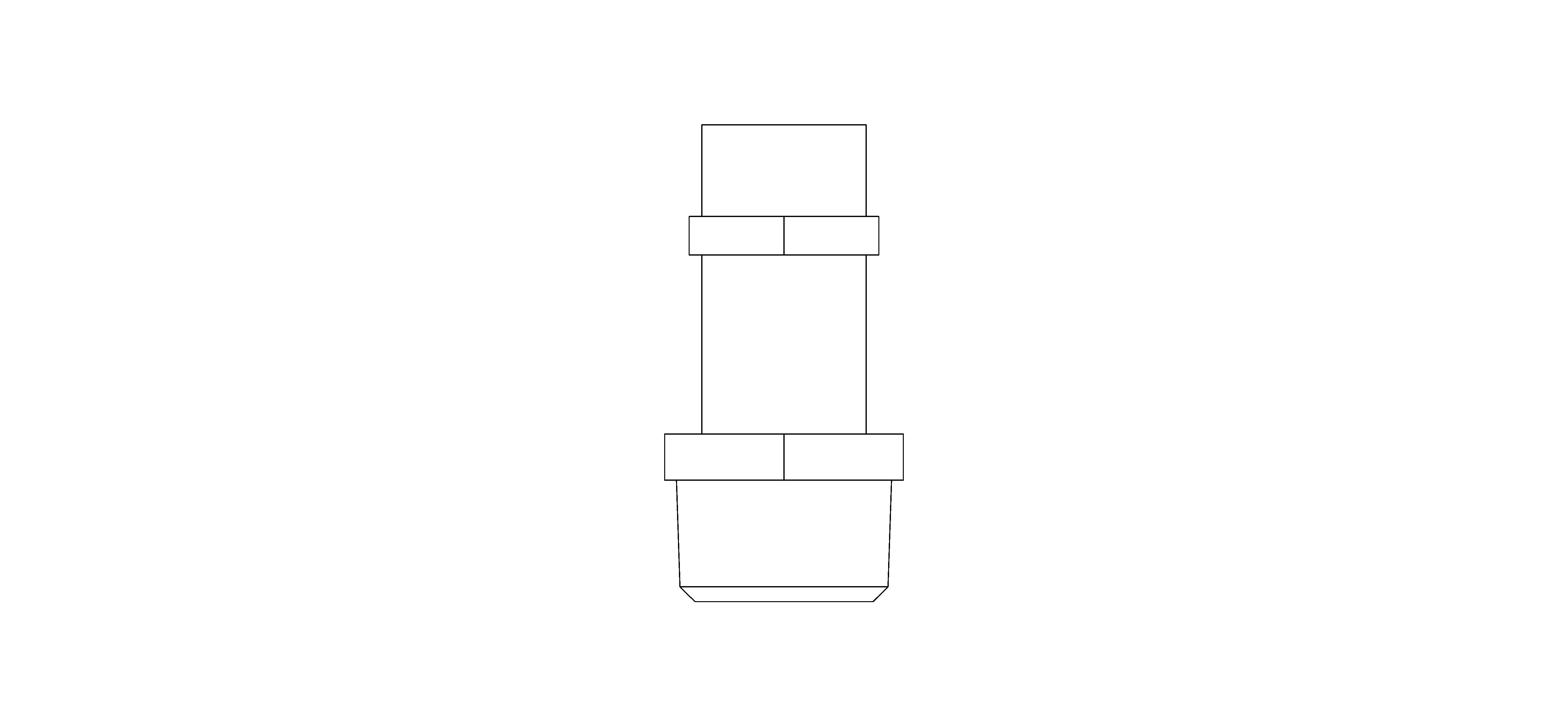

D340- 1/2" to 1"

Draining Tap - DZR Brass

Features & Benefits

Integrated shroud gives a tamper resistant design
DZR Brass draining taps are suitable for use on hot and cold water up to 16bar, at temperatures up to 110°C
Enables system to be drained without removing pipework
The inlet is a threaded taper male connection to BS EN 10226-2
The outlet is ribbed for hose connection
WRAS Approved up to 85°C

Size	1/2" to 1"
Pressure Rating	PN16
Material	DZR Brass

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-d340/document/object-user-guide
A40.00 mm
Accessibility Performancen/a
Assembly CodeD2090800
Asset TypeFixed
B62.89 mm
B265.55 mm
BIM Object NameCraneFS_DrainingTap_DZRBrass_D340
BodyDZR Brass BS EN 12165 CW602N
BonnetBrass BS EN 12164 CW614N
C9.50 mm
CD16.30 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_27
Code Performancen/a
ColorBronze
Connection Radius12.50 mm
Connection Size25.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2022-08-01T:09:00:00
D74.80 mm
DescriptionD340 - Draining Tap - DZR Brass
Disc HolderBrass BS EN 12164 CW614N
Documentation Certificateswww.bimstore.co/products/crane-fs-d340/document/product-certificates

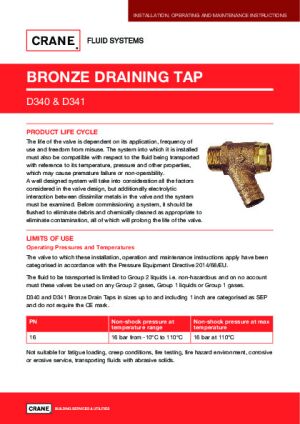

Documentation Installation Guidewww.bimstore.co/products/crane-fs-d340/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-d340/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-d340/document/maintenance-information

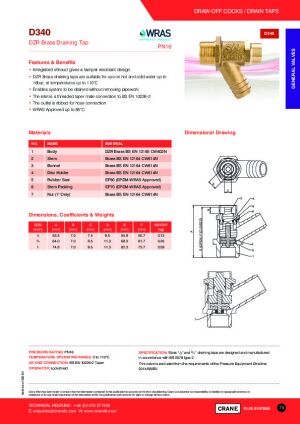

Documentation Technicalwww.bimstore.co/products/crane-fs-d340/document/technical-data-sheet
Duration UnitYear
E19.10 mm
E28.80 mm
End Connection(UK)BS EN 10226-2 Taper
End Connection(US)TBC
Expected Life0
Featuresn/a
Finishn/a
F Max8.90 mm
F Min8.00 mm
G58.60 mm
G26.50 mm
Graden/a
H27.23 mm
I1.00 mm
I21.94 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveType.DRAWOFFCOCK
Inch Size1 Inch
J9.50 mm
K Coefficient0
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
MaterialBrass
ModelD340 - Draining Tap - DZR Brass
Model NumberD340
Model ReferenceD340 - Draining Tap - DZR Brass
N140.00 mm
N237.90 mm
NBS DescriptionDraining taps
NBS Noten/a
NBS Object NameCrane FS - Draining taps
NBS Office Master Tagn/a
NBS Reference90-10-90/374
Nominal Depth40.00 mm
Nominal Height82.89 mm
Nominal Length74.80 mm
NutBrass BS EN 12164 CW614N
OperatorLockshield
Pressure RatingPN16
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Rubber SeatEP80 (EPDM-WRAS Approved)
Shapen/a
Size1" - DN25
Spare Partsn/a
Specification NotesSizes 1/2” and 3/4” draining taps are designed and manufactured in accordance with BS 2879 type 2.This valve is excluded from the requirements of the Pressure Equipment Directive 2014/68/EU.
StemBrass BS EN 12164 CW614N
Stem PackingEP70 (EPDM-WRAS Approved)
Temperature Operating Range0 to 110°C
Type CommentsD340 - Draining Tap - DZR Brass
Type NameD340 - Draining Tap - DZR Brass
URLwww.cranefs.com/
Valve MaterialCrane - Metal - Bronze
W124.60 mm
W233.00 mm
W338.40 mm
W431.40 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
Weight0.59 kg
