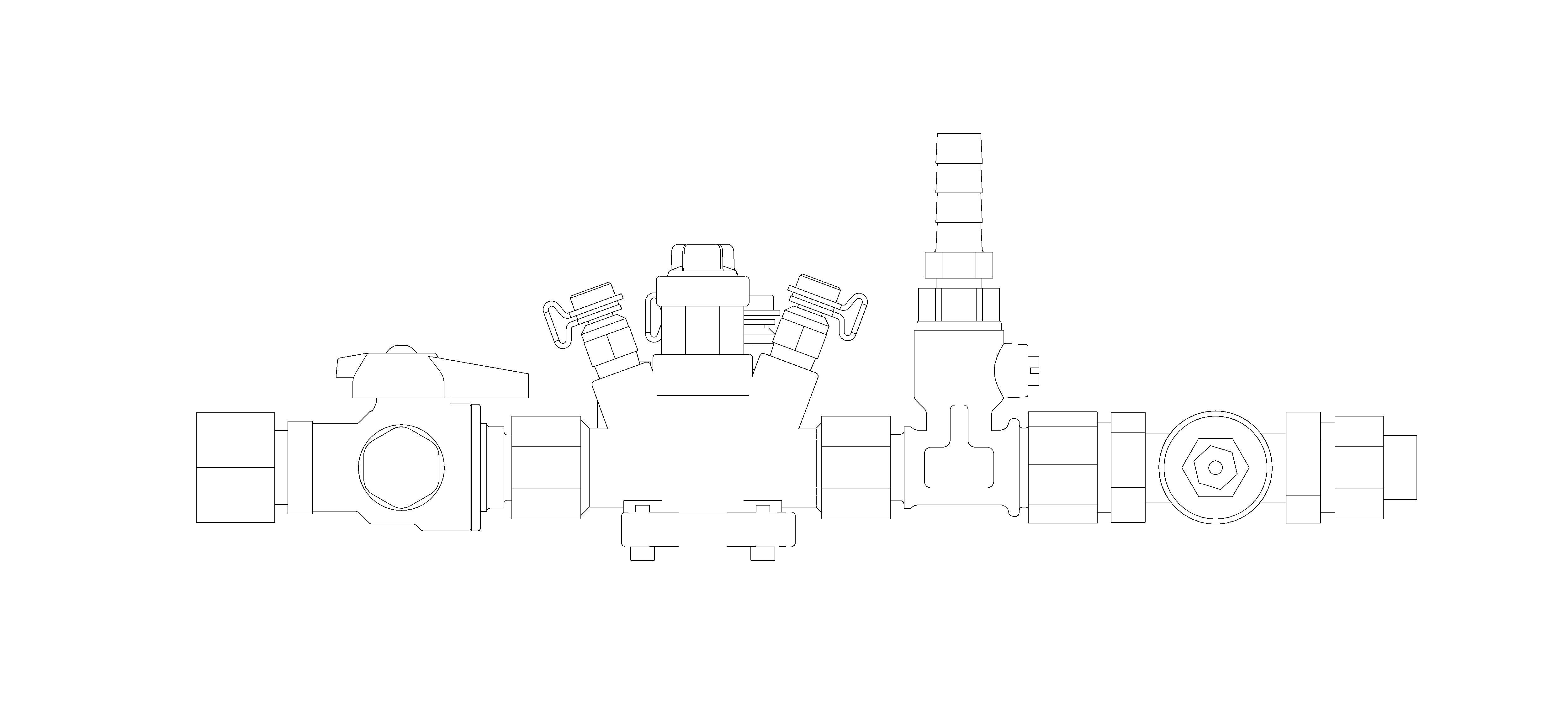

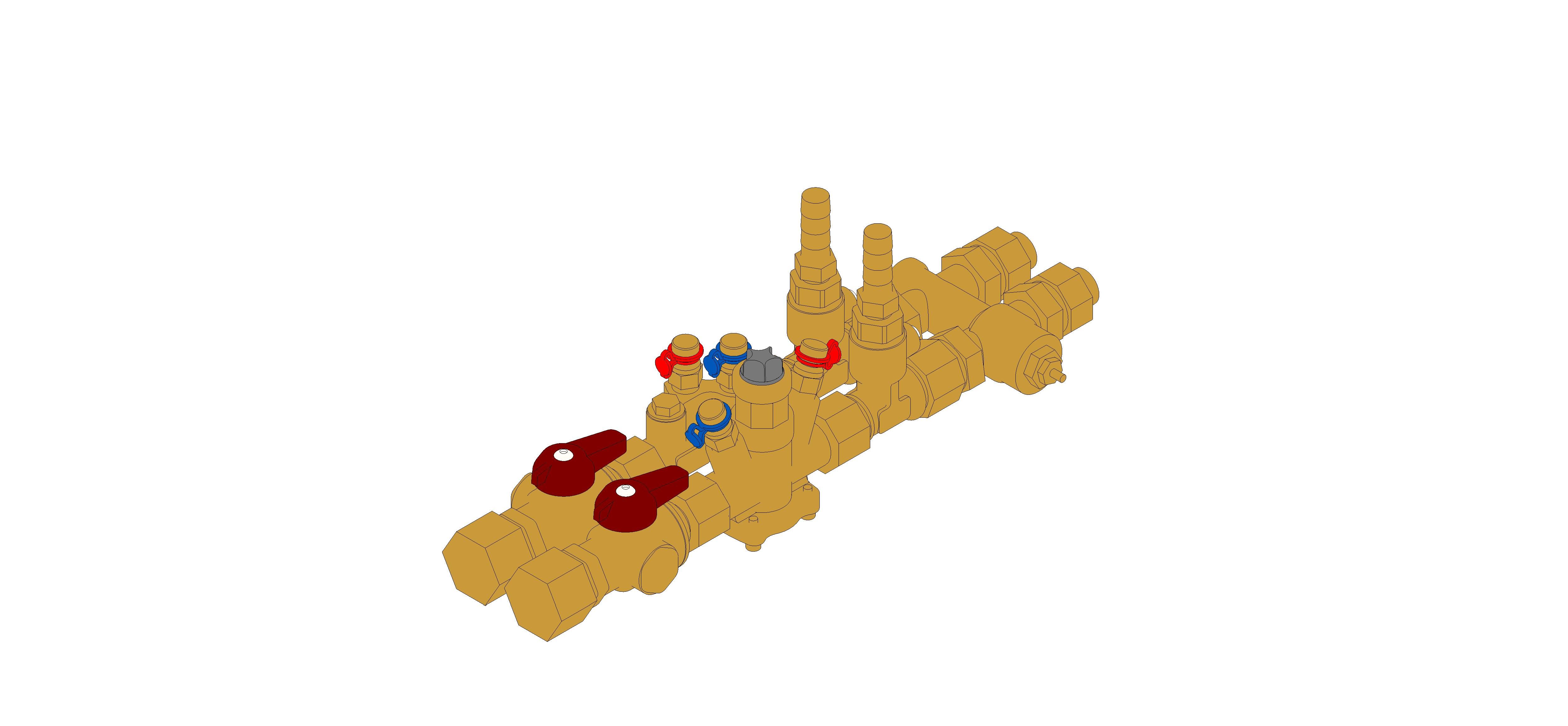

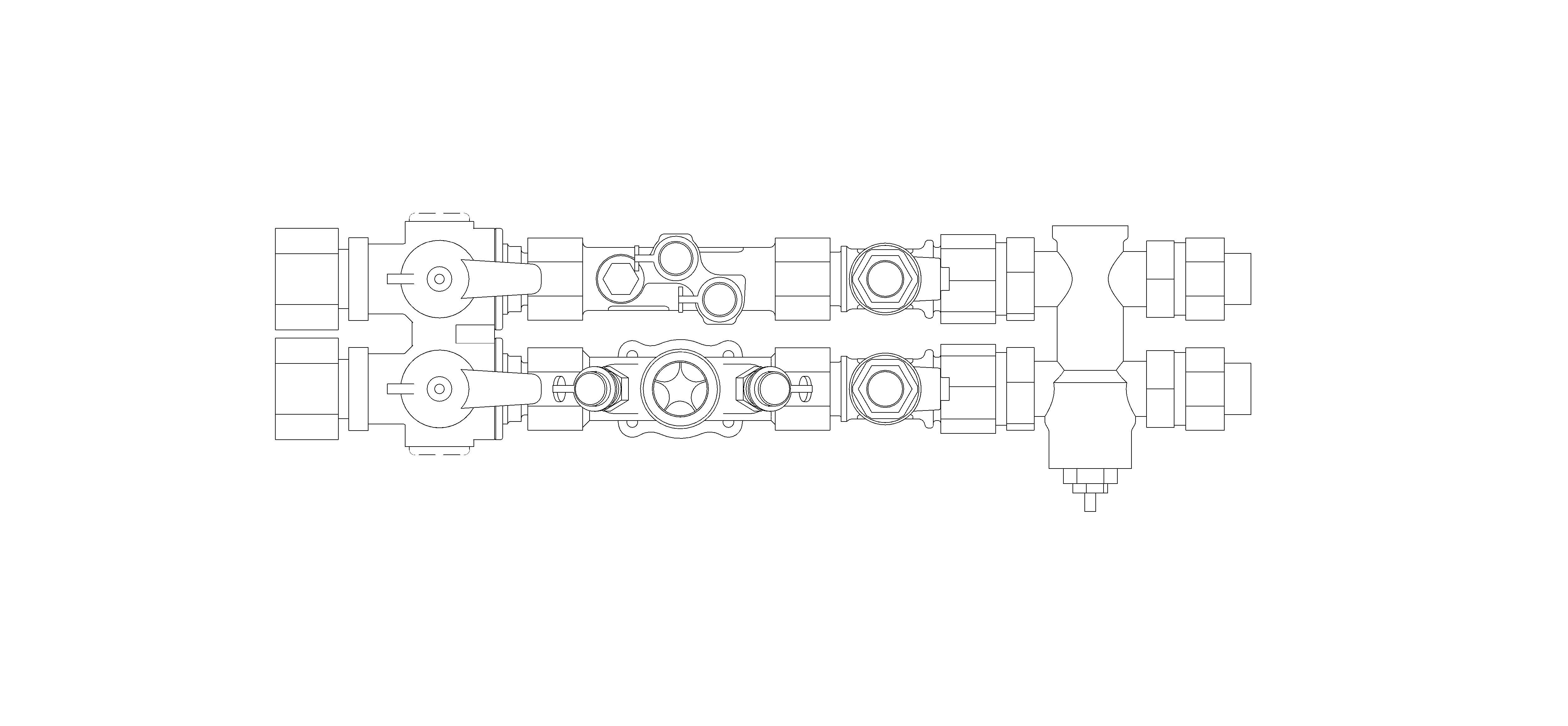

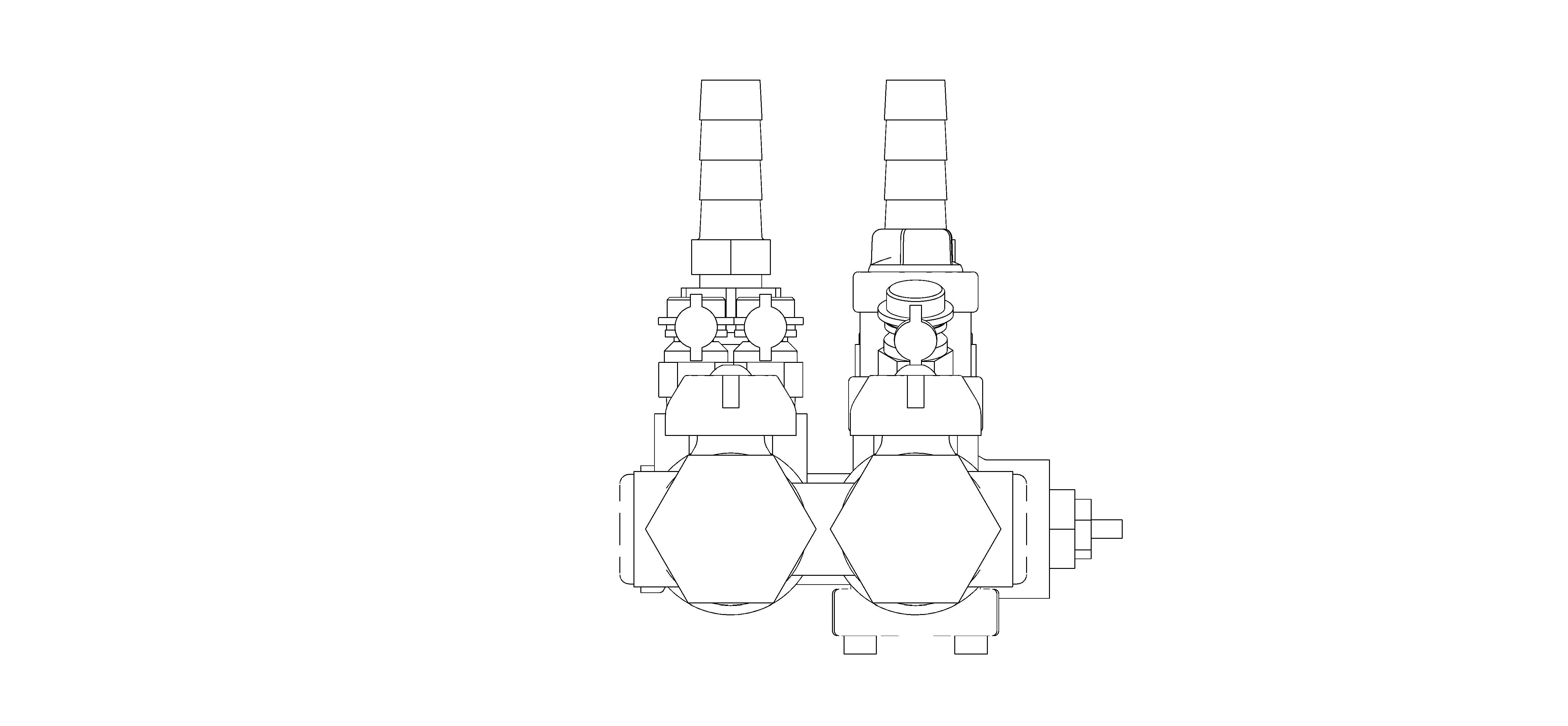

DD40BSS4B- DN15/15

Dominator Peak Pro with PICV, BSRIA Flushing Drain & 4-Port



Features & Benefits

  • Compact design, with flow and return legs at equal lengths, for simple direct mounting onto terminal unit

  • Fitted with Peak Pro with a wide range of settable flows to suit all applications

  • Includes Venturi metering station for improved accuracy and pressure drop recovery

  • All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve

  • Bypass unit with integrated 3-way isolation valves

  • Flushing valves on flow and return - in accordance with BSRIA BG29

  • Integrated dial allowing for calibrated setting of the PICV with integrated test points allowing for ΔP verification

  • 4-Port valve included to provide a constant flow rate irrespective of load demand. Suitable for minimum flow and end-of-line applications



Size

DN15/15
Centre Size40mm

Pressure Rating

PN16
Temperature Rating0 to 90°C

End Connections

H-Body - BSP Taper
Terminal end - Compression/Solder
