DM925LW - Lever Operated Double Regulating Valve

6k
0
- / 5
Rate this product

Object Data

1 Revision

Last Updated

13/09/2022

Download BIM

Add to collection

Available for:

DM925LW - DN65 to DN150

Lever Operated Double Regulating Valve (DRV) - Ductile Iron

In two unit systems the DM925 has sufficient authority to give effective regulation over the range of flows covered by matching flow measurement devices/valves.

Features & Benefits

WRAS approved Double Regulating Valves consists of a fully lugged, WRAS approved EPDM liner butterfly valve with a Double Regulating Lever
The Double Regulating feature allows the valve to be used for isolation and to be reopened to its pre-set position to maintain required flow rate
Use the DM925LW with Orifice plate Fig.DM900 for Commissioning Set

Size	DN65 to DN150
Pressure Rating	PN16
Temperature Rating	-10 - 80°C
Material	Ductile Iron

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-dm925lw/document/object-user-guide
1148.00 mm
272.00 mm
383.00 mm
448.00 mm
525.00 mm
657.10 mm
A202.00 mm
A1343.00 mm
Accessibility Performancen/a
Angle 122.50 °
Angle 222.50 °
Angle 322.50 °
Assembly CodeD2090800
Asset TypeFixed
B108.00 mm
BIM Object NameCraneFS_ButterflyValve_FullyLuggedLeverOperated_DM925LW
C52.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
ColorBlack
Connection Size100.00 mm
Connection Size Radius50.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2022-08-04T:09:00:00
DescriptionDM925LW - Lever Operated Double Regulating Valve (DRV) - Ductile Iron
Disc MaterialCrane - Metal - Bronze
Documentation Certificateswww.bimstore.co/products/crane-fs-dm925lw/document/product-certificates

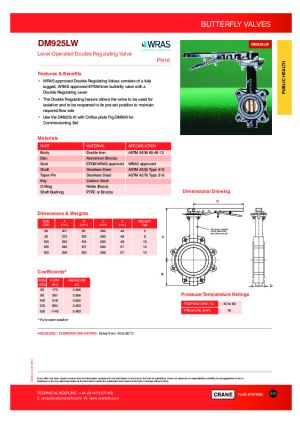

Documentation Installation Guidewww.bimstore.co/products/crane-fs-dm925lw/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-dm925lw/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-dm925lw/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-dm925lw/document/technical-data-sheet
Duration UnitYear
E212.50 mm
Expected Life0
F0.00 mm
Featuresn/a
Finishn/a
G104.40 mm
Graden/a
H157.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inner Radius50.00 mm
K180.00 mm
K Coefficient512
KeynoteS
Lever MaterialCrane - Metal - Iron - Ductile Epoxy Paint
Loss MethodK Coefficient
Lug Hole Offset90.00 mm
Lug Hole Radius8.00 mm
Lug Inner Radius78.00 mm
Lug Outer Radius14.00 mm
ManufacturerCrane FS
Manufacturer NameCrane FS
MaterialDuctile Iron
Mid Radius68.25 mm
ModelDM925LW - Lever Operated Double Regulating Valve (DRV) - Ductile Iron
Model NumberDM925LW
Model ReferenceDM925LW - Lever Operated Double Regulating Valve (DRV) - Ductile Iron
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameCrane FS - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth52.00 mm
Nominal Height343.00 mm
Nominal Length302.50 mm
Outer Radius78.00 mm
Production Year2022
Referenced StandardASTM A536 65-45-12
Replacement Costn/a
Shapen/a
SizeDN100
Spare Partsn/a
Symbol Length60.00 mm
Type CommentsDM925LW - Lever Operated Double Regulating Valve (DRV) - Ductile Iron
Type NameDM925LW - Lever Operated Double Regulating Valve (DRV) - Ductile Iron
URLwww.cranefs.com/
Valve MaterialCrane - Metal - Iron - Ductile Epoxy Paint
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
