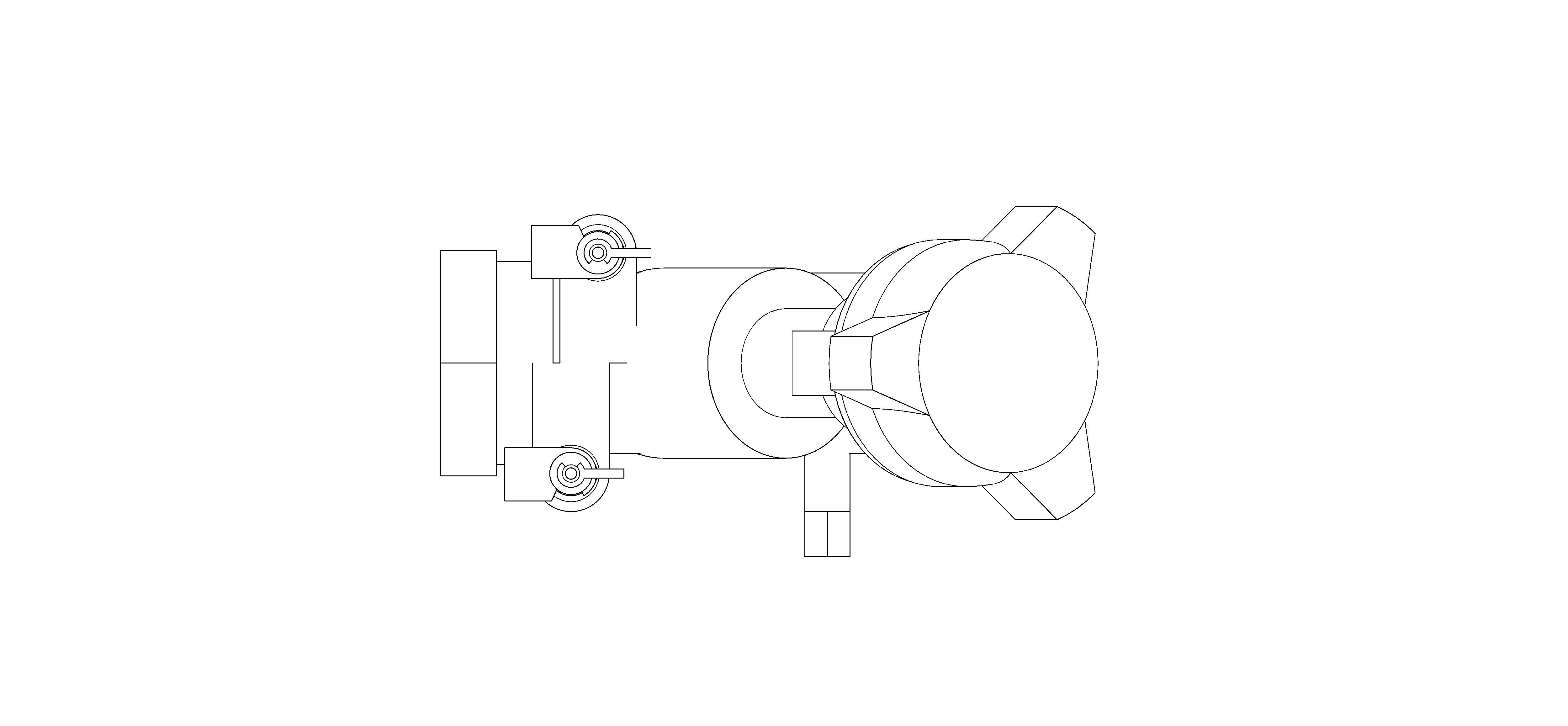

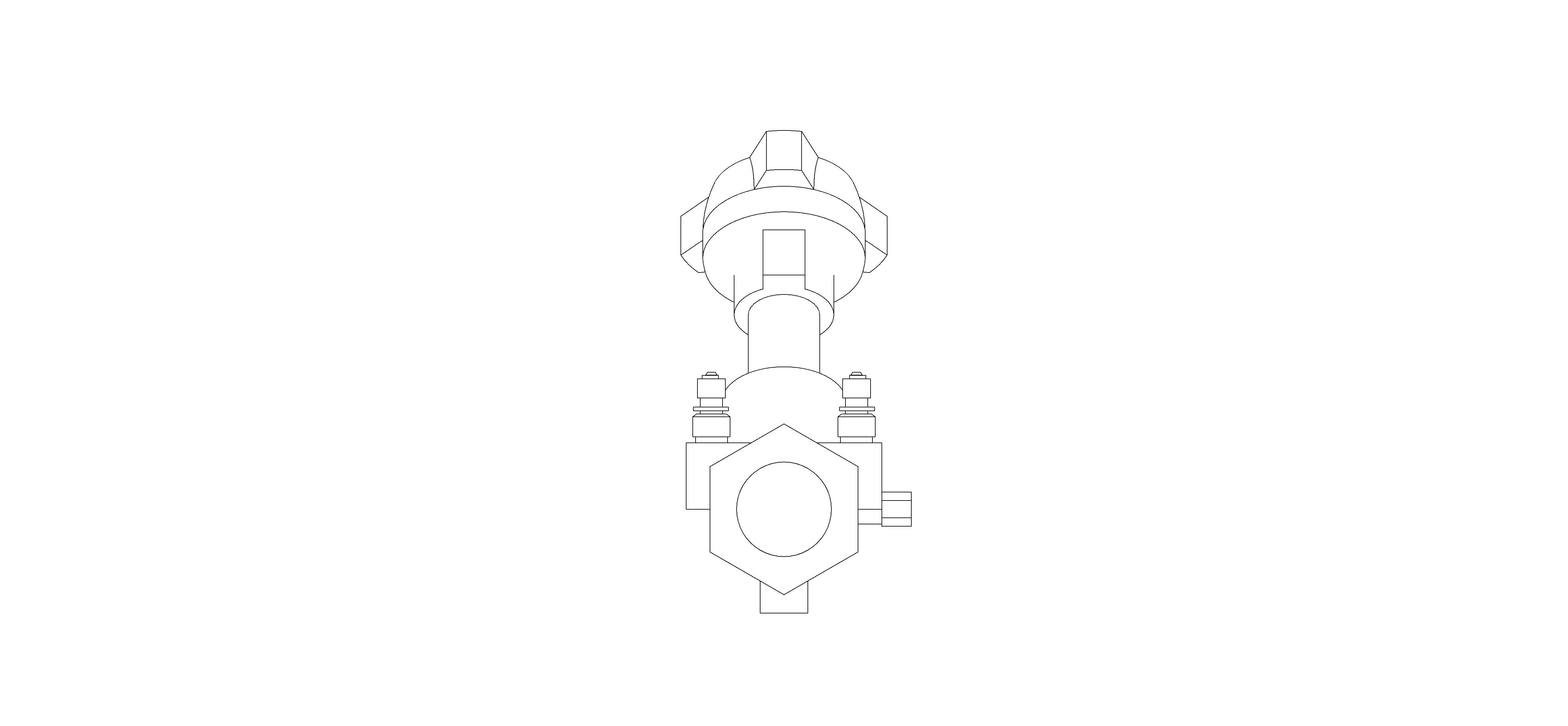

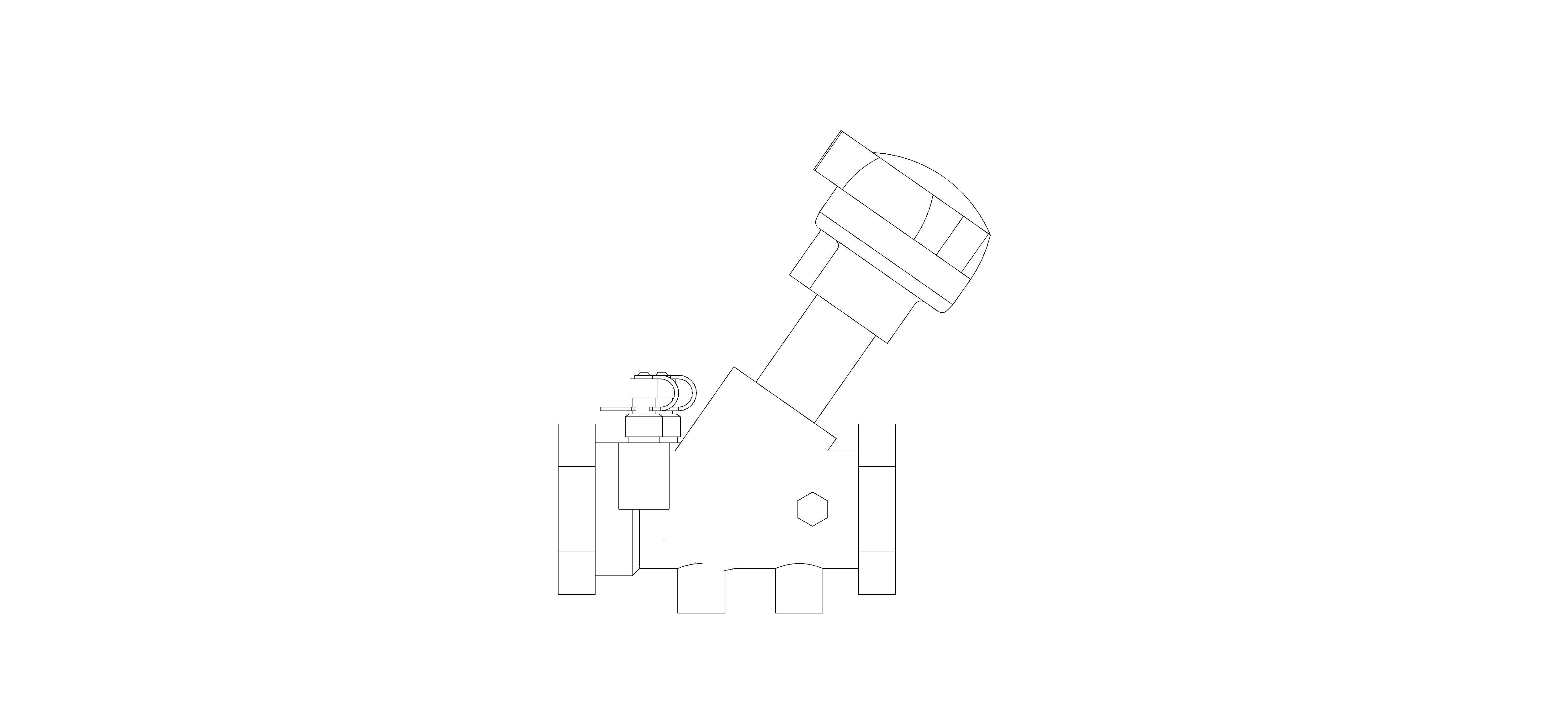

DPF931 - Companion Valve suitable for female ended DPCV

  • Product: DPF931 - Companion Valve suitable for female ended DPCV
  • Product: DPF931 - Companion Valve suitable for female ended DPCV
  • Product: DPF931 - Companion Valve suitable for female ended DPCV
  • Product: DPF931 - Companion Valve suitable for female ended DPCV
  • Product: DPF931 - Companion Valve suitable for female ended DPCV
  • Views 5.4k
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

13/09/2022

DownloadDownload Download BIM Add to collectionAdd to collection Add to collection
Available for:
  • Logo: Autodesk Revit

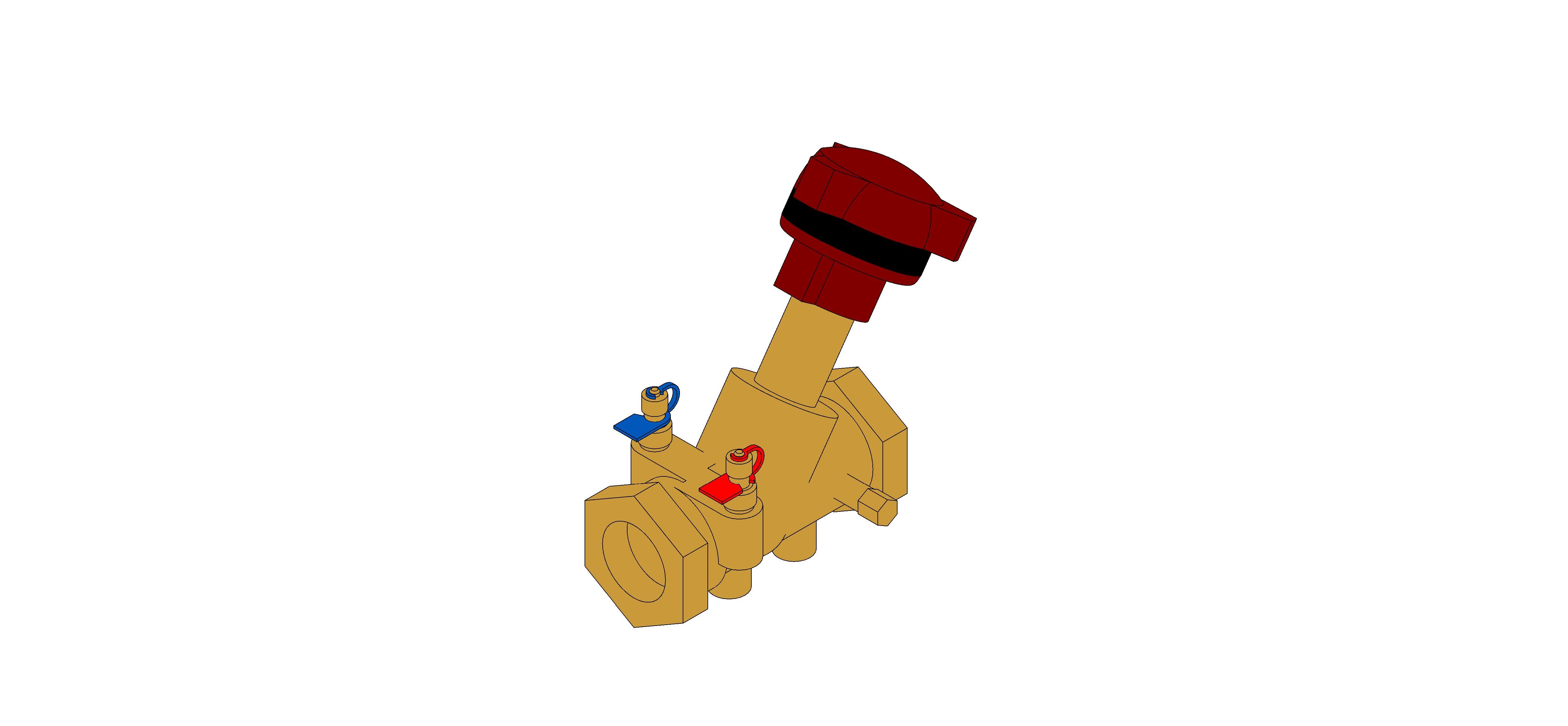

DPF931 - DN15 to DN50

Companion Valve - suitable for female ended DPCV - Bronze

To meet the growing use of variable speed pumps for HVAC applications, Crane Fluid Systems has launched a range of Differential Pressure Control Valves (DPCV) specifically aimed at optimising system performance.

Extremely efficient, the DPCV is set to a maximum differential pressure which ensures flow cannot exceed a desired rate. It therefore helps reduce energy consumption, the risk of noise and simplifies the commissioning process

Features & Benefits

  • Has an integral tapping point for the impulse tube to link with the Crane Fluid System DPCV.

  • Integral orifice & test points provide precise and accurate flow measurement.

  • Positive flow control at all handwheel settings.

  • Easy to operate with Double Regulating handwheel and numerical position indicator.

  • Can be used plugged, as supplied, for PN25 applications or with an impulse tube for PN16 applications.

  • Characterised regulating disk tends towards equal percentage performance.

  • Male threaded ends for easy connection to all pipework systems.



Size

DN15 to DN50

Pressure Rating

PN16
Temperature Rating-10 to 100°C

End Connections

DN15 & DN20 End Connections: Rp Parallel

DN25 to DN50 End Connections: Rc Taper

Material

Bronze



Read more

Object metadata

  • _AuthorAM
  • _Authorized Bybimstore
  • _Bim Spec Guid0
  • _BS Bible Version16
  • _Created Bywww.bimstore.co/
  • _Current Revision1
  • _Distributed Bywww.bimstore.co/
  • _Object User Guidewww.bimstore.co/products/crane-fs-dpf931/document/object-user-guide
  • A87 mm
  • Accessibility Performancen/a
Report an issue with this object

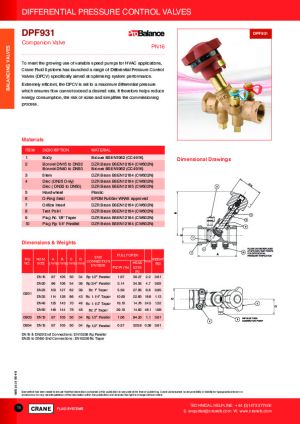

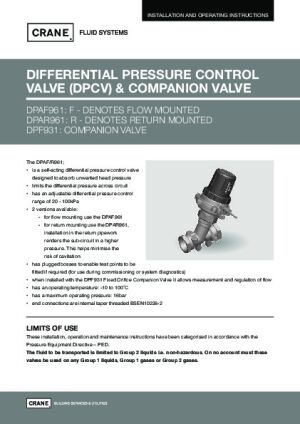

Accompanying literature
