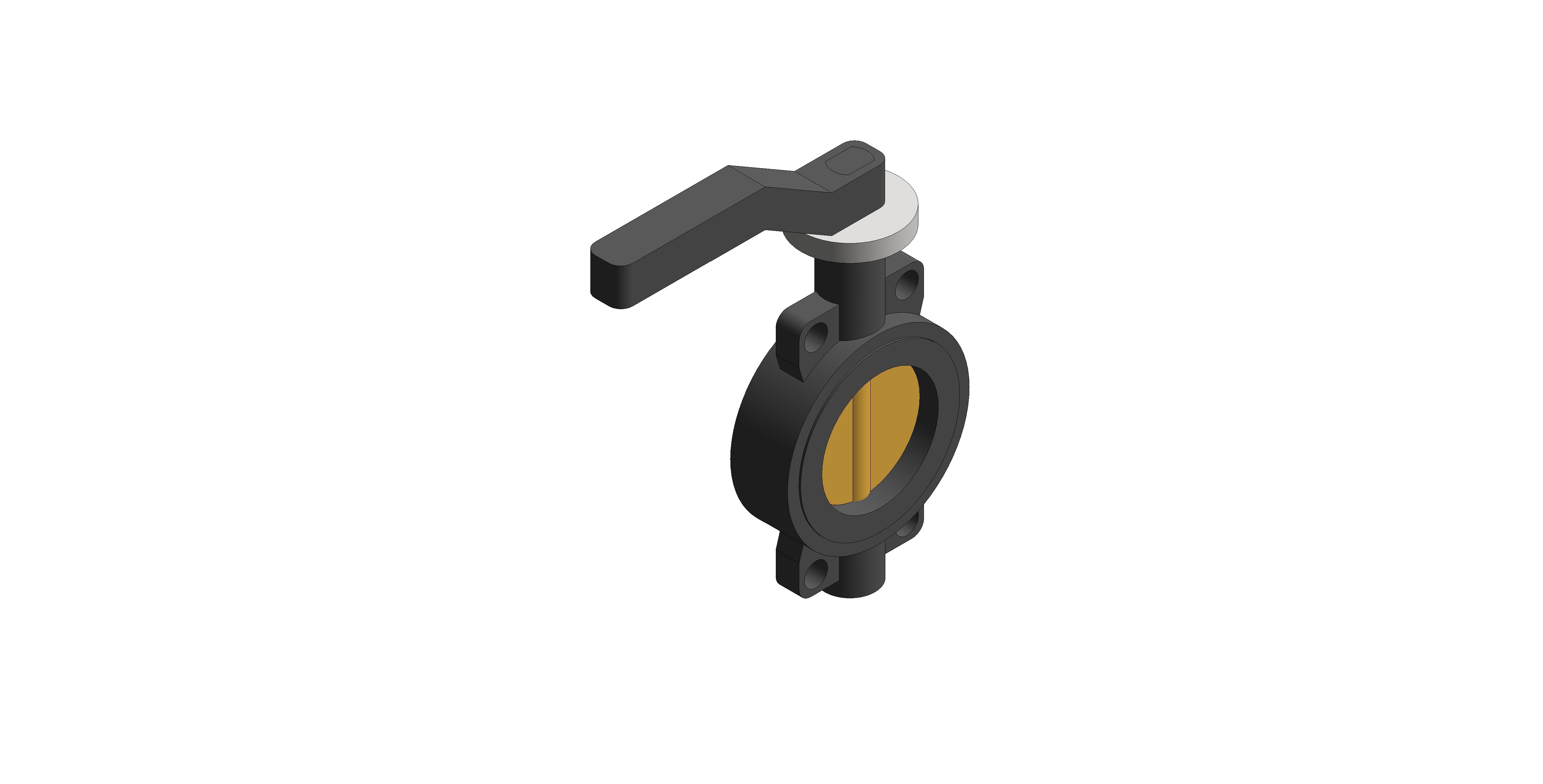

F611 - Semi-Lugged Lever Operated Butterfly Valves - Ductile Iron

24k
2
4.5 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

22/03/2022

Download BIM

Add to collection

Available for:

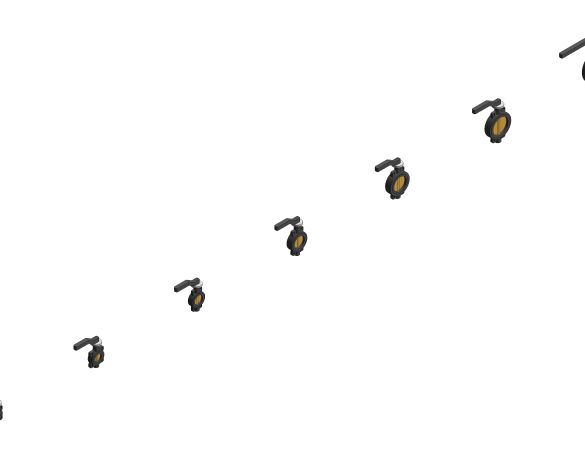

F611 - 50mm to 200mm

Semi-Lugged Lever Operated Butterfly Valves - Ductile Iron

Features & Benefits

Robust, ductile iron valve body for long life service
Valve body semi-lugged to fit PN16 or ANSI Class 125 flanges
The anti-blow out stem design provides a safe and secure operation
Integrated notch plate for a more compact design and aluminium lever to reduce risk of corrosion
Fully bonded epoxy paint system for superior corrosion resistance
Suitable for applications where Level 3 C3 (Medium) corrosion protection is required
Maintenance free valve design, reducing downtime
Suitable for a wide temperature range -10°C to 130°C
Suitable for use with flanges conforming to BS EN 1092-2 PN10 or PN16 and ANSI B16.1 Class 125.

Size	50mm to 200mm
Pressure Rating	PN16 / Class 125
End Connections	To suit flange connections BS EN 1092-2 PN10 or PN16 and ANSI B16.1 Class 125.
Material	Ductile Iron

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/

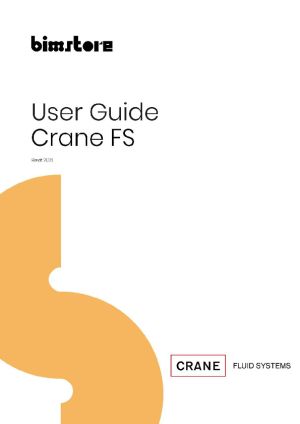

_Object User Guidewww.bimstore.co/products/crane-fs-f611/document/object-user-guide
265.00 mm
383.00 mm
443.00 mm
525.00 mm
657.10 mm
7205.00 mm
8107.00 mm
964.20 mm
A163.00 mm
A1343.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B115.00 mm
BIM Object NameCraneFS_ButterflyValve_SemiLuggedLeverOperated_F611
BodyDuctile Iron ASTM A536 64-45-12 (Epoxy Paint)
BushingPTFE
C52.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
Colorn/a
Connection Size100.00 mm
Connection Size Radius50.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2022-03-01T:09:00:00
D32.00 mm
DescriptionF611 - Semi-Lugged Lever Operated Butterfly Valves - Ductile Iron
DiscAluminium Bronze C954 ASTM B148
Documentation Certificateswww.bimstore.co/products/crane-fs-f611/document/product-certificates

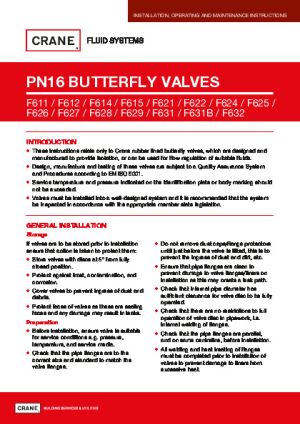

Documentation Installation Guidewww.bimstore.co/products/crane-fs-f611/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-f611/document/product-literature

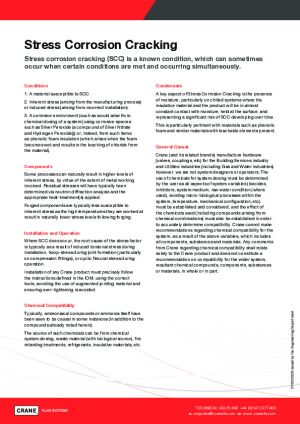

Documentation Maintenancewww.bimstore.co/products/crane-fs-f611/document/maintenance-information

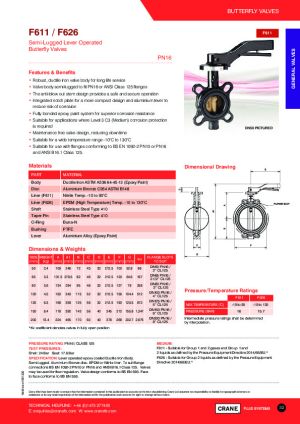

Documentation Technicalwww.bimstore.co/products/crane-fs-f611/document/technical-data-sheet
Duration UnitYear
E212.50 mm
Expected Life0
F156.00 mm
Featuresn/a
Finishn/a
G104.40 mm
Graden/a
H157.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inner Radius50.00 mm
K Coefficient512
KeynoteS
LeverAluminium Alloy (Epoxy Paint)
LinerNitrile Temp. -10 to 90°C
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
Maximum Temperature-10 to 90°C
MediumSuitable for Group 1 and 2 gases and Group 1 and 2 liquids as defined by the Pressure Equipment Directive 2014/68/EU.
Mid Radius68.25 mm
ModelF611 - Semi-Lugged Lever Operated Butterfly Valves - Ductile Iron
Model NumberF611
Model ReferenceF611 - Semi-Lugged Lever Operated Butterfly Valves - Ductile Iron
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameCrane FS - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth52.00 mm
Nominal Height343.00 mm
Nominal Length291.00 mm
O-RingBuna-N
Outer Radius78.00 mm
Pressure RatingPN16 / CLASS 125
Production Year2022
Referenced Standardn/a
Replacement Costn/a
ShaftStainless Steel Type 410
Shapen/a
SizeDN100
Spare Partsn/a
Specification NotesLever operated epoxy coated Ductile Iron Body. Semi-lugged. Aluminium Bronze disc. EPDM or Nitrile liner. To suit flange connections BS EN 1092-2 PN10 or PN16 and ANSI B16.1 Class 125. Valves may be used for flow regulation. Valve design conforms to BS EN 593. Face to face conforms to BS EN 558.
Symbol Length60.00 mm
Taper PinStainless Steel Type 410
Test PressuresShell: 24 Bar; Seat: 17.6 Bar
Type CommentsF611 - Semi-Lugged Lever Operated Butterfly Valves - Ductile Iron
Type NameF611 - Semi-Lugged Lever Operated Butterfly Valves - Ductile Iron
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
