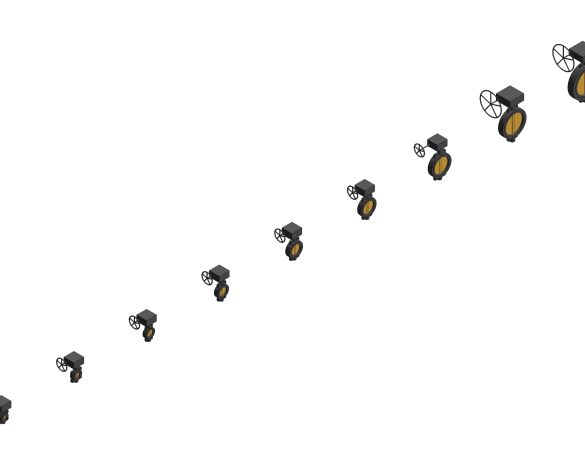

F612 - Semi-Lugged Gearbox Operated Butterfly Valves - Ductile Iron

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/

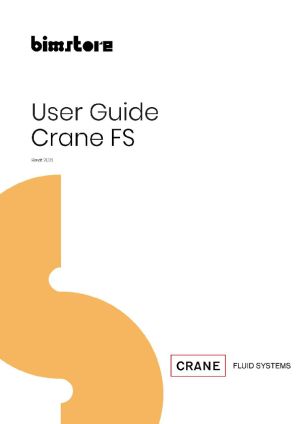

• _Object User Guidewww.bimstore.co/products/crane-fs-f612/document/object-user-guide
• 10202.00 mm
• 284.00 mm
• 383.00 mm
• 443.00 mm
• 570.00 mm
• 625.00 mm
• 7205.00 mm
• 8107.00 mm
• 964.20 mm
• A163.00 mm
• Accessibility Performancen/a
• Assembly CodeD20
• Asset TypeFixed
• B115.00 mm
• BIM Object NameCraneFS_ButterflyValve_SemiLuggedGearboxOperated_F612
• BodyDuctile Iron ASTM A536 64-45-12 (Epoxy Paint)
• BushingPTFE
• C52.00 mm
• Classification NameUniclass 2015
• Classification ValuePr_65_54_95_08
• Code Performancen/a
• Colorn/a
• Connection Size100.00 mm
• Connection Size Radius50.00 mm
• Constituentsn/a
• Created Byenquiries@cranefs.com
• Created On2022-03-01T:09:00:00
• D32.00 mm
• DescriptionF612 - Semi-Lugged Gearbox Operated Butterfly Valves - Ductile Iron
• DiscAluminium Bronze C954 ASTM B148
• Documentation Certificateswww.bimstore.co/products/crane-fs-f612/document/product-certificates

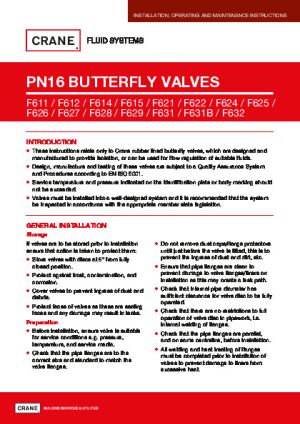

• Documentation Installation Guidewww.bimstore.co/products/crane-fs-f612/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/crane-fs-f612/document/product-literature

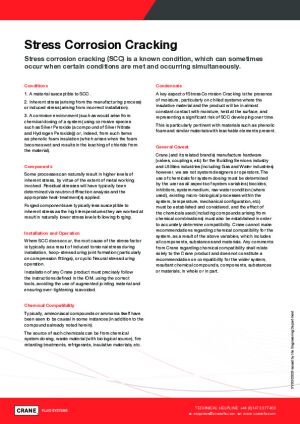

• Documentation Maintenancewww.bimstore.co/products/crane-fs-f612/document/maintenance-information

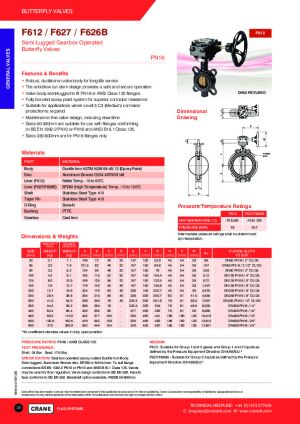

• Documentation Technicalwww.bimstore.co/products/crane-fs-f612/document/technical-data-sheet
• Duration UnitYear
• E157.00 mm
• Expected Life0
• F150.00 mm
• Featuresn/a
• Finishn/a
• G104.40 mm
• GearboxCast Iron
• Graden/a
• H45.00 mm
• h54.00 mm
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.CHECK
• Inner Radius50.00 mm
• K Coefficient512
• KeynoteS
• LinerNitrile Temp. -10 to 90°C
• Loss MethodK Coefficient
• M39.00 mm
• ManufacturerCrane FS
• Manufacturer NameCrane FS
• Materialn/a
• Maximum Temperature-10 to 90°C
• MediumSuitable for Group 1 and 2 gases and Group 1 and 2 liquids as defined by the Pressure Equipment Directive 2014/68/EU.
• Mid Radius68.25 mm
• ModelF612 - Semi-Lugged Gearbox Operated Butterfly Valves - Ductile Iron
• Model NumberF612
• Model ReferenceF612 - Semi-Lugged Gearbox Operated Butterfly Valves - Ductile Iron
• NBS DescriptionButterfly valves
• NBS Noten/a
• NBS Object NameCrane FS - Butterfly valves
• NBS Office Master Tagn/a
• NBS Reference90-10-90/332
• Nominal Depth52.00 mm
• Nominal Height392.00 mm
• Nominal Length235.00 mm
• O-RingBuna-N
• Outer Radius78.00 mm
• Pressure RatingPN16 / ANSI CLASS 125
• Production Year2022
• Referenced Standardn/a
• Replacement Costn/a
• ShaftStainless Steel Type 410
• Shapen/a
• SizeDN100
• Spare Partsn/a
• Specification NotesGearbox operated epoxy coated Ductile Iron Body. Semi-lugged. Aluminium Bronze disc. EPDM or Nitrile liner. To suit flange connections BS EN 1092-2 PN10 or PN16 and ANSI B16.1 Class 125. Valves may be used for flow regulation. Valve design conforms to BS EN 593. Face to face conforms to BS EN 558. Bareshaft option available, F626B 50-600mm.
• Symbol Length60.00 mm
• Taper PinStainless Steel Type 410
• Test PressuresShell: 24 Bar; Seat: 17.6 Bar
• Type CommentsF612 - Semi-Lugged Gearbox Operated Butterfly Valves - Ductile Iron
• Type NameF612 - Semi-Lugged Gearbox Operated Butterfly Valves - Ductile Iron
• URLwww.cranefs.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborenquiries@cranefs.com
• Warranty Guarantor Partsenquiries@cranefs.com
