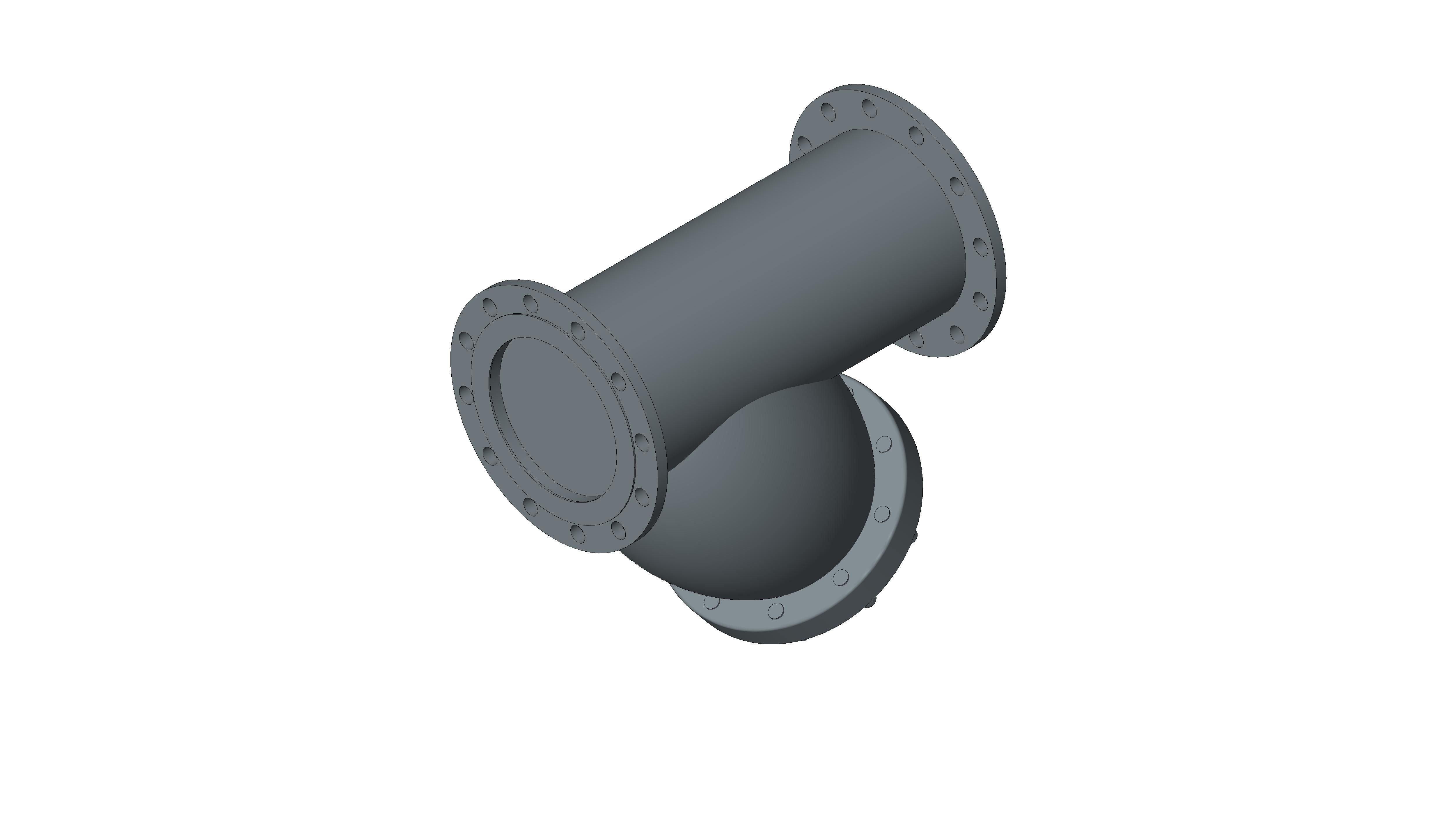

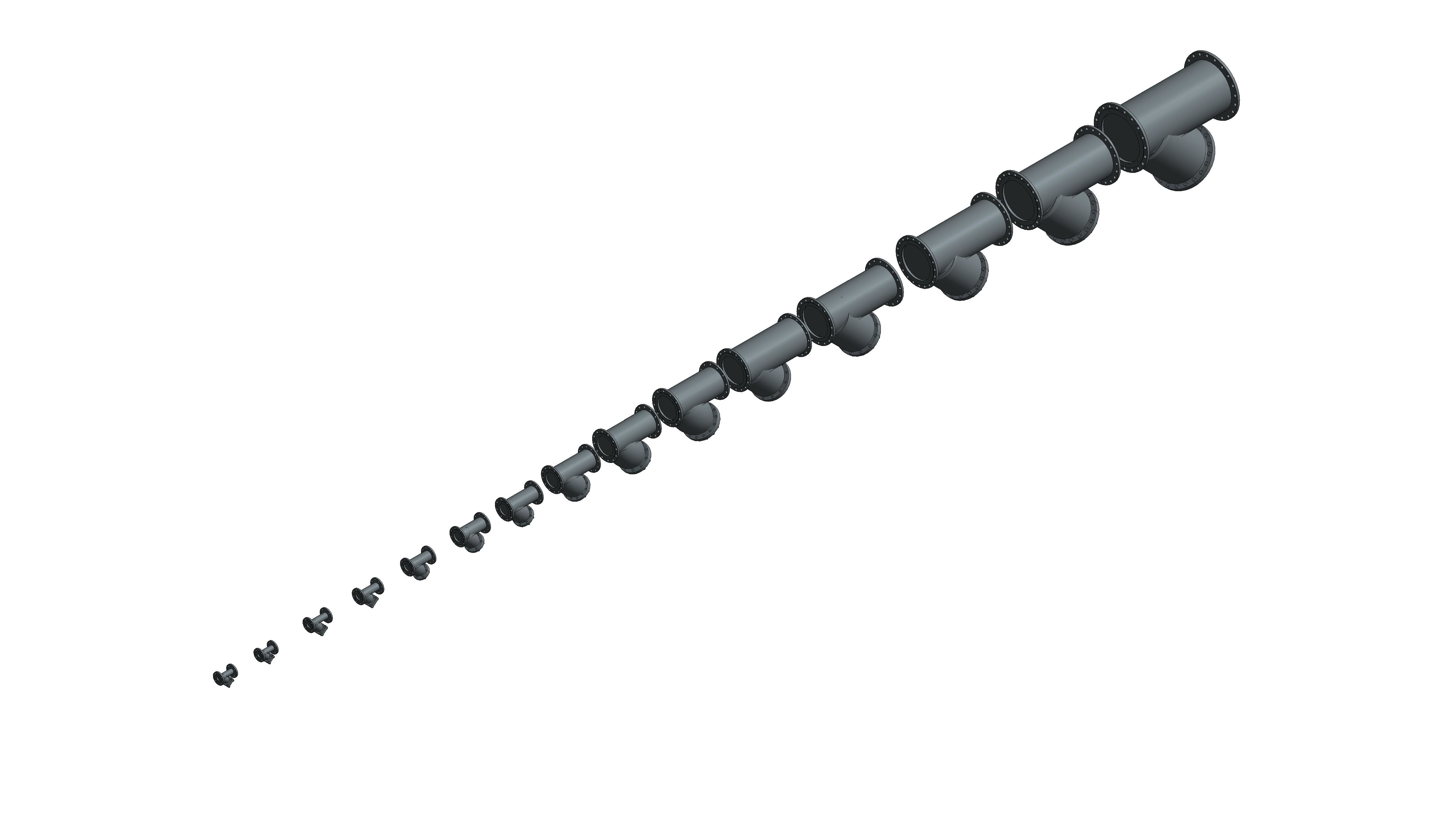

FM276 - Strainer - Ductile Iron

35.7k
0
4.7 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

06/10/2021

Download BIM

Add to collection

Available for:

FM276

Strainer - Ductile Iron

Features & Benefits

Scale and dirt in piping systems causes endless trouble and frequently serious damage to pipeline equipment.
Installation of Crane strainers will help eliminate the problems caused by foreign matter within piping systems
The FM276 offers the integrity of manufacture, quality and reliability which are the hallmarks of all Crane products
Cap tapped and plugged for drain
Stainless Steel Strainer elements

Pressure Rating	PN16
End Connections	UK: Flanged BS EN 1092-2: PN16 US: Flanged Class 125 BS1560 - section 3.2 / ANSI B16.1 Flat Face
Material	Ductile Iron

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-fm276/document/object-user-guide
12 HolesNo
16 HolesNo
20 HolesNo
4 HolesNo
8 HolesYes
A220 mm
Accessibility Performancen/a
Angled Piece Origin 188 mm
Angled Piece Origin 2147 mm
Assembly CodeD20
Asset TypeFixed
B24 mm
BIM Object NameCraneFS_Strainer_FM276
Body Plate Length158 mm
Body Plate Offset75 mm
Body Plate Thickness6 mm
Body Sec Rad79 mm
C158 mm
Classification NameUniclass 2015
Classification ValuePr_65_55_86_99
Code Performancen/a
Colorn/a
Connection Size100 mm
Connection Size Radius50 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
D3 mm
DescriptionFM276 - Strainer - Ductile Iron
Documentation Certificateswww.bimstore.co/products/crane-fs-fm276/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-fm276/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-fm276/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-fm276/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-fm276/document/technical-data-sheet
Drain Angle79 mm
Drain Flange Radius182 mm
Drain Plug Rad18 mm
Drain Sec Diameter158 mm
Drain Sec Length140 mm
Drain Sec Radius79 mm
Duration UnitYear
E350 mm
Expected Life0
F198 mm
Featuresn/a
Finishn/a
Flange Hole Centres180 mm
Flange Hole Diameter19 mm
G293 mm
Graden/a
H35 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcFilterTypeEnum.STRAINER
K Coefficient232
KeynoteS
Length302 mm
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelFM276 - Strainer - Ductile Iron
Model NumberFM276
Model ReferenceFM276 - Strainer - Ductile Iron
NBS DescriptionY-type strainers
NBS Noten/a
NBS Object NameCrane FS - Y-type strainers
NBS Office Master Tagn/a
NBS Reference90-20-80/320
Nominal Depth220 mm
Nominal Height308 mm
Nominal Length350 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size100mm
Spare Partsn/a
Test Point Offset70 mm
Type CommentsFM276 - Strainer - Ductile Iron
Type NameFM276 - Strainer - Ductile Iron
URLwww.cranefs.com/
Valve MaterialCrane - Metal - Ductile Iron
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
