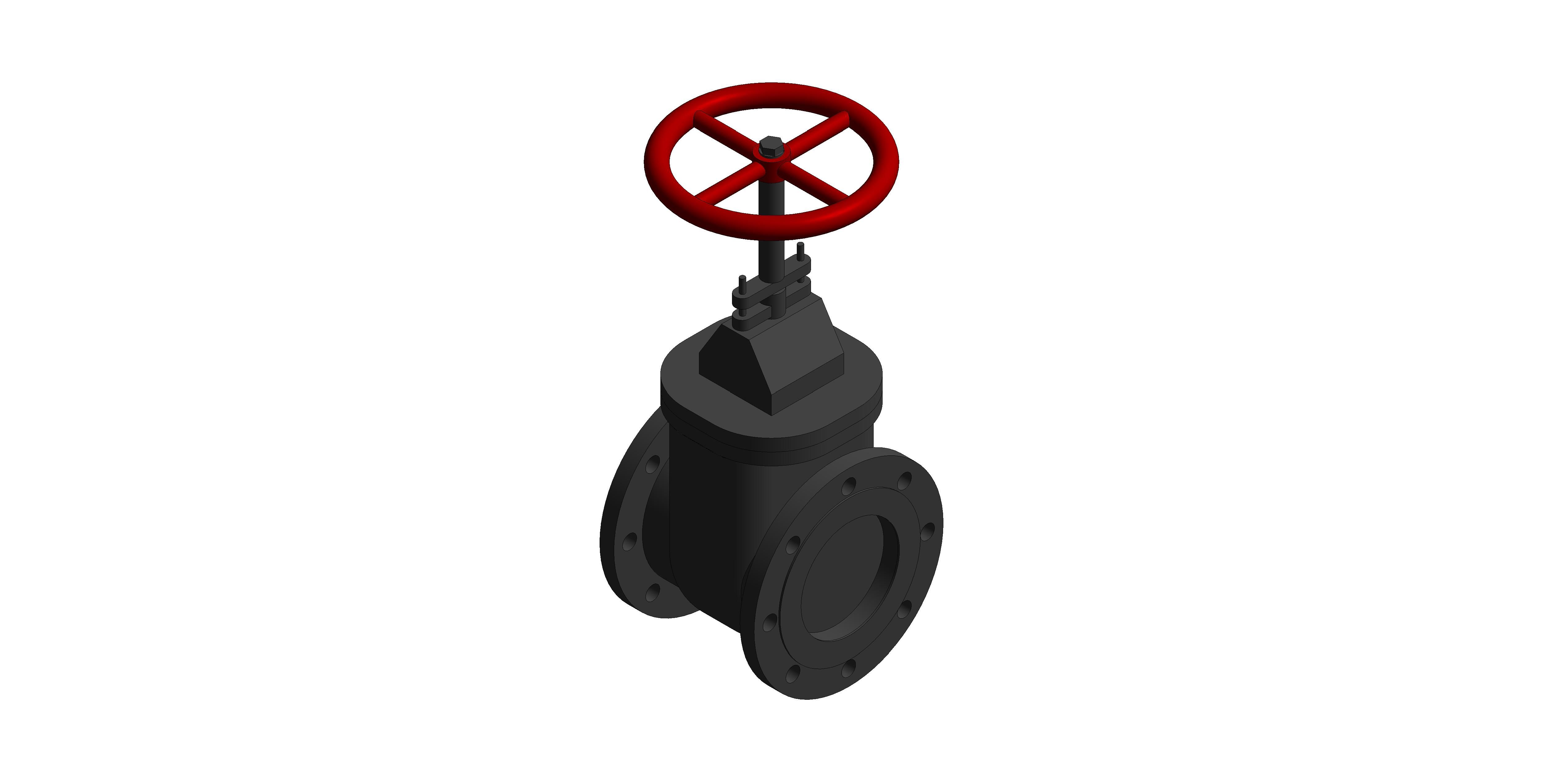

FM52 - Gate Valve - Cast Iron

13.3k
0
5 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

06/10/2021

Download BIM

Add to collection

Available for:

FM52 - 50mm to 300mm

Gate Valve - Cast Iron

PN6 Cast Iron Gate Valve

Features & Benefits

Crane cast iron gate valves offer the ultimate in dependable service wherever minimum pressure drop is important
Complete with Bronze trim
Each valve is hydrostatically tested to BS EN 12266-1: 2003
Manufactured in accordance with BS EN 1171: 2002

Size	50mm to 300mm
Pressure Rating	PN6
End Connections	Flanged BS EN 1092-2 PN6
Material	Cast Iron

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-fm52/document/object-user-guide
12 HolesNo
4 HolesYes
8 HolesNo
Accessibility Performancen/a
Amm190 mm
Assembly CodeD20
Asset TypeFixed
BIM Object NameCraneFS_GateValve_FM52
Bmm18 mm
Body Radius74 mm
Body Width154 mm
Bonnet Base Height22 mm
Bonnet Disk Depth15 mm
Bonnet Disk Diameter177 mm
Bonnet Gap0 mm
Bonnet Length89 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Cmm210 mm
Code Performancen/a
Colorn/a
Connection Size100 mm
Connection Size Radius50 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
DescriptionFM52 - Gate Valve - Cast Iron
Dmm369 mm
Documentation Certificateswww.bimstore.co/products/crane-fs-fm52/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-fm52/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-fm52/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-fm52/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-fm52/document/technical-data-sheet
Duration UnitYear
Emm203 mm
End Connector Hole Centre170 mm
End Connector Hole Diameter18 mm
End Connector Raised Height2 mm
Expected Life0
Featuresn/a
Finishn/a
Flange Cut Out Centres179 mm
Flange Cut Out Radius5 mm
Flange Protrusion Radius74 mm
Fmm148 mm
Graden/a
Handle MaterialPVC, Maroon
Handlewheel Radius102 mm
Handwheel Nut Diameter17 mm
Handwheel Nut Height8 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient1125.41
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelFM52 - Gate Valve - Cast Iron
Model NumberFM52
Model ReferenceFM52 - Gate Valve - Cast Iron
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameCrane FS - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size100mm
Spare Partsn/a
Stem Corner Radius32 mm
Stem Height103 mm
Stem Loop Depth162 mm
Stem Loop Width112 mm
Stem Lower Circle Radius81 mm
Stem Radius10 mm
Top Of Stem126 mm
Type CommentsFM52 - Gate Valve - Cast Iron
Type NameFM52 - Gate Valve - Cast Iron
URLwww.cranefs.com/
Valve MaterialCast Iron - Black
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
