D171A - Ball Valve - DZR Brass

66.8k
0
3 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

31/08/2021

Download BIM

Add to collection

Available for:

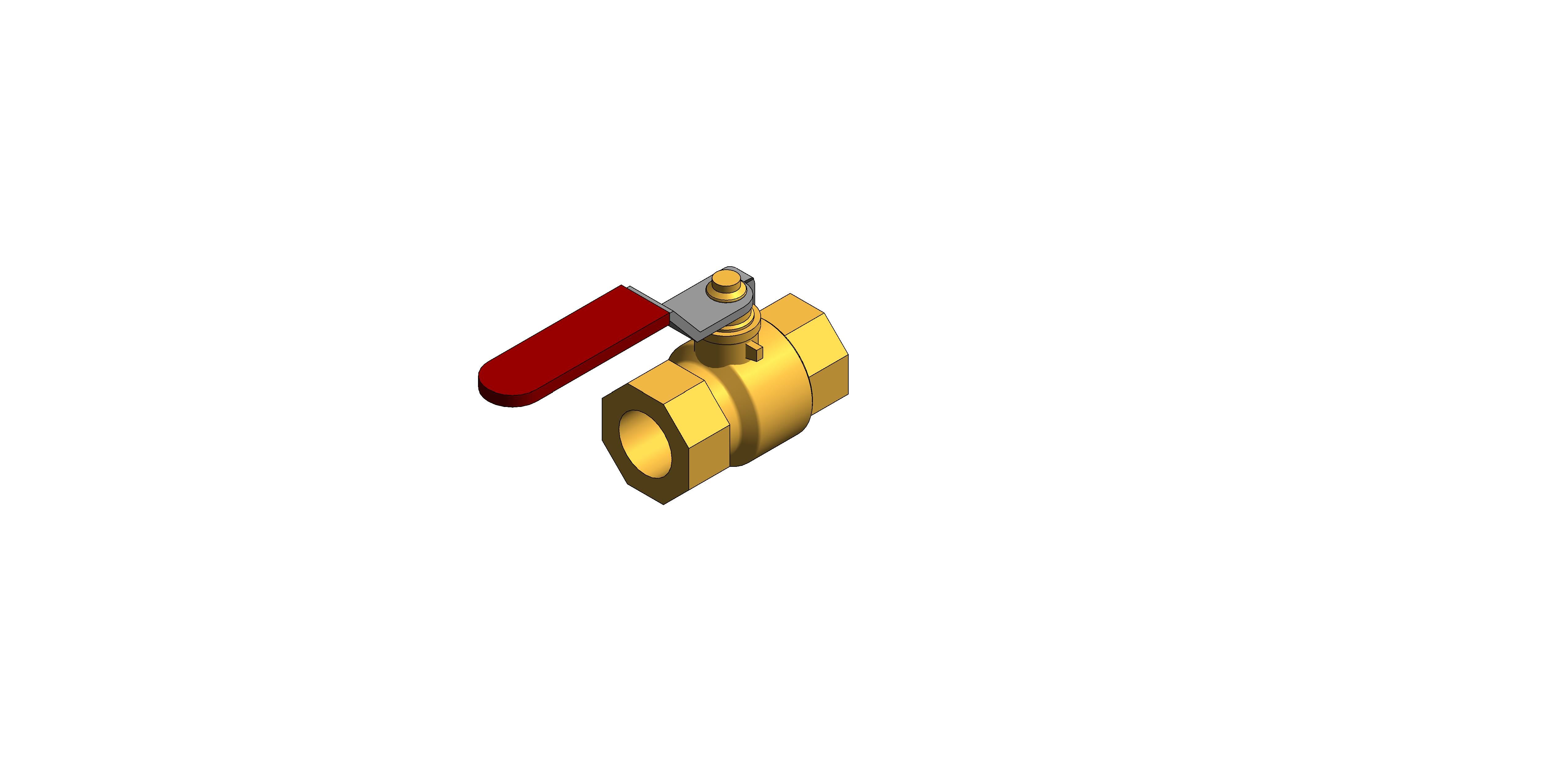

D171A - 1/4" to 2"

Ball Valve - DZR Brass

PN25 DZR Ball Valve

Features & Benefits

Crane D171A Ball Valves are light, compact units which are easy to install and operate, yet their robust construction ensures long, trouble free service life. In addition the D171A is WRAS approved.

Size	1/4" to 2"
Pressure Rating	PN25
End Connections	Taper threaded to BS EN 10226-2 (ISO 7-1) formerly BS 21
Material	DZR Brass

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/cranefs-d171a/document/object-user-guide
130.40 mm
230.40 mm
324.40 mm
420.31 mm
520.31 mm
611.31 mm
74.53 mm
85.30 mm
a1.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b25.00 mm
BIM Object NameCraneFS_BallValve_D171A
Brake Downstand21.00 mm
c27.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
Colorn/a
Connection Size42.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
d14.20 mm
DescriptionD171A - Ball Valve - DZR Brass
Dim X15.00 mm
Dim XX17.00 mm

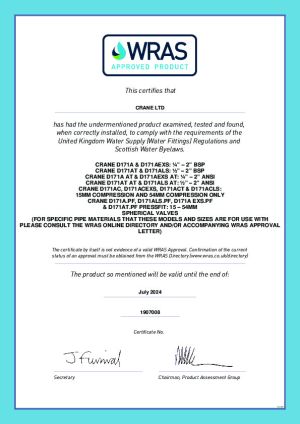

Documentation Certificateswww.bimstore.co/products/cranefs-d171a/document/product-certificates

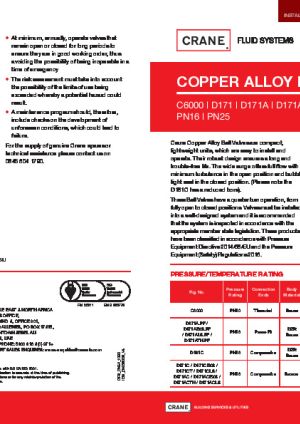

Documentation Installation Guidewww.bimstore.co/products/cranefs-d171a/document/installation-guide
Documentation Literaturewww.bimstore.co/products/cranefs-d171a/document/product-literature
Documentation Maintenancewww.bimstore.co/products/cranefs-d171a/document/maintenance-information

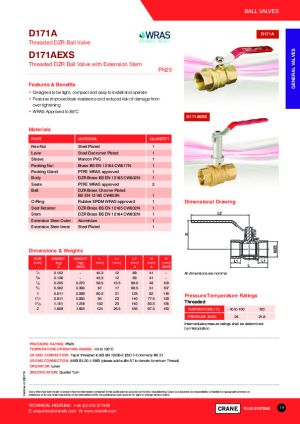

Documentation Technicalwww.bimstore.co/products/cranefs-d171a/document/technical-data-sheet
Duration UnitYear
e7.25 mm
Expected Life0
f7.00 mm
Featuresn/a
Finishn/a
g10.00 mm
Graden/a
h15.49 mm
H85.05 mm
Handle Collar Length42.00 mm
Handle Downstand24.40 mm
Handle Length90.00 mm
Handle MaterialCrane - PVC - Maroon
Handle Width20.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient96
KeynoteS
L102.00 mm
L123.00 mm
L2140.00 mm
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD171A - Ball Valve - DZR Brass
Model NumberD171A
Model ReferenceD171A - Ball Valve - DZR Brass
NBS DescriptionBall valves
NBS Noten/a
NBS Object NameCrane FS - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth72.30 mm
Nominal Height121.20 mm
Nominal Length191.00 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Sizemm21.00 mm
Spare Partsn/a
Symbol Length31.50 mm
Type CommentsD171A - Ball Valve - DZR Brass
Type NameD171A - Ball Valve - DZR Brass
URLwww.cranefs.com/
Valve Hex Calc57.00 mm
Valve Hex Calc 259.00 mm
Valve MaterialCrane - Metal - Brass
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
