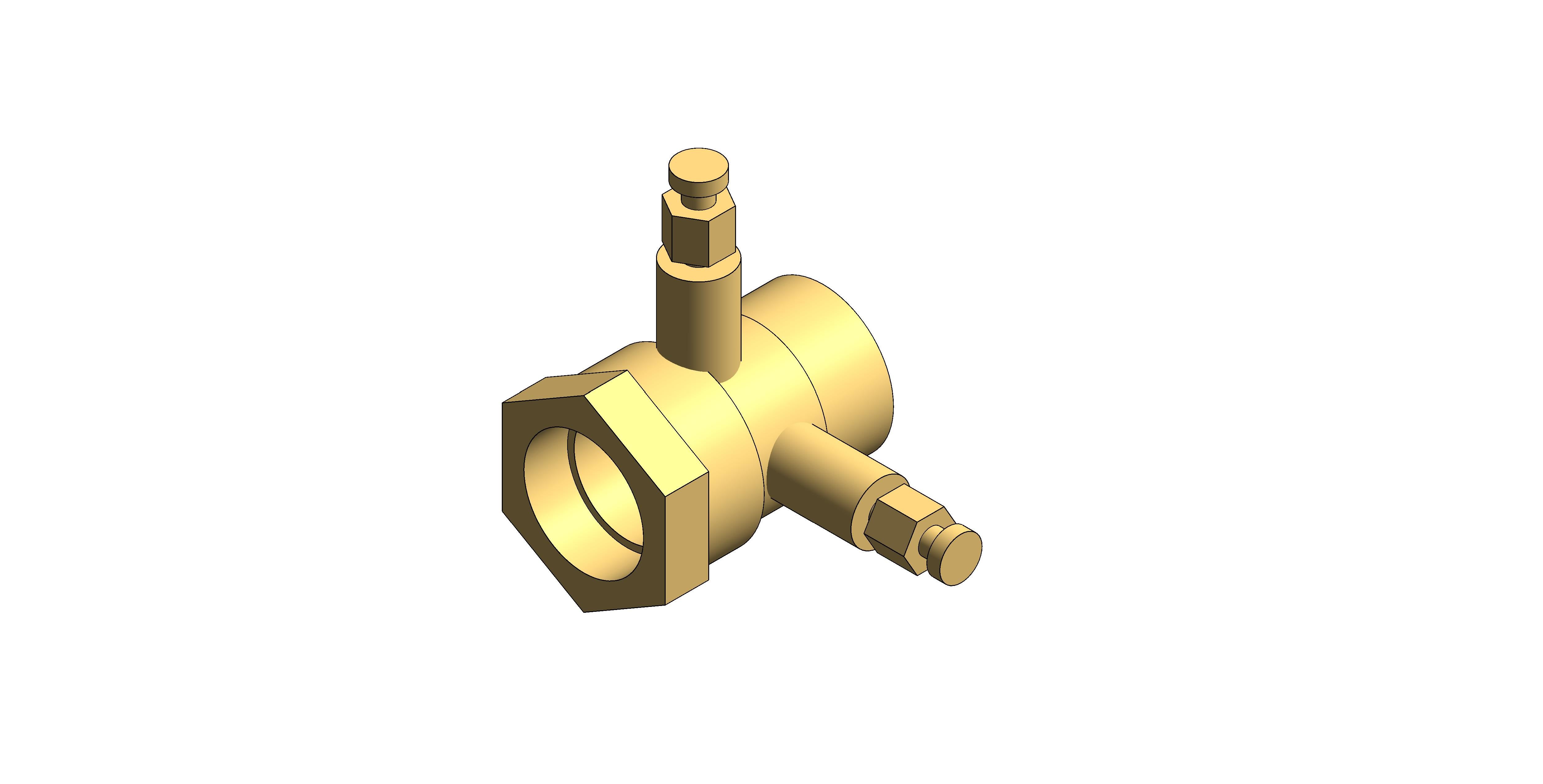

D901 - Flow Measurement Device (FMD) - DZR Copper Alloy

by Crane Fluid Systems

Download Add to collection

Description

D901 - DN15 to DN50

Flow Measurement Device (FMD) - DZR Copper Alloy

Features & Benefits

D901 Flow Measurement Device is suitable for systems where pipes have been sized on the basis that pipe frictional losses lie in the range 100 to 400 Pa/m
Square edged entrance orifice plates with tappings for P84 insertion style test points
Flow measurement accuracy of ±5%

Size	DN15 to DN50
Pressure Rating	PN25
Temperature Rating	10 - 120°C
End Connections	D901 - Sizes 3/4" to 2" Inlet - Female Outlet - BS EN 10226 formerly taper male
Material	DZR Copper Alloy

Object Data

1 Revision

Last Updated

31/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

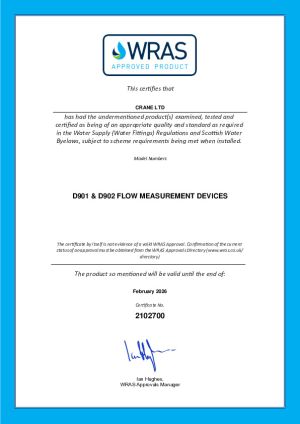

Product Certificates

Technical Data Sheet

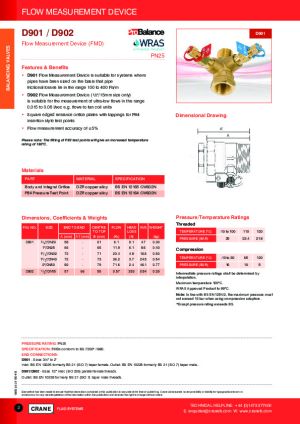

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/cranefs-d901/document/object-user-guide
A58 mm
A10 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B61 mm
BIM Object NameCraneFS_FlowMeasurementDevice_D901
Centre Left Length13 mm
Centre Left Radius16 mm
Centre Right Radius13 mm
Classification NameUniclass 2015
Classification ValuePr_40_70_96_31
Code Performancen/a
Colorn/a
Connection Size20 mm
Connection Size Radius10 mm
Connector Length37 mm
Connector Radius9 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
DescriptionD901 - Flow Measurement Device (FMD) - DZR Copper Alloy
Documentation Certificateswww.bimstore.co/products/cranefs-d901/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/cranefs-d901/document/installation-guide
Documentation Literaturewww.bimstore.co/products/cranefs-d901/document/product-literature
Documentation Maintenancewww.bimstore.co/products/cranefs-d901/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/cranefs-d901/document/technical-data-sheet
Duration UnitYear
End Nut Diameter33 mm
End Nut Thickness10 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Has Compression AdaptorNo
Ifc Export AsIfcFlowControllerType
Ifc Export TypeIfcFlowMeterType
K Coefficient6.1
KeynoteS
Left Offset23 mm
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD901 - Flow Measurement Device (FMD) - DZR Copper Alloy
Model NumberD901
Model ReferenceD901 - Flow Measurement Device (FMD) - DZR Copper Alloy
NBS DescriptionFlow control devices
NBS Noten/a
NBS Object NameCrane FS - Flow control devices
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth78 mm
Nominal Height80 mm
Nominal Length58 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Right Offset29 mm
Shapen/a
SizeDN20 - 3/4"
Spare Partsn/a
Test Point Length24 mm
Threaded Nut Length15 mm
Threaded Nut Radius13 mm
Type CommentsD901 - Flow Measurement Device (FMD) - DZR Copper Alloy
Type NameD901 - Flow Measurement Device (FMD) - DZR Copper Alloy
URLwww.cranefs.com/
Valve MaterialCrane - Metal - DZR Copper Alloy
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
