D995 (DN40 & DN50) - Pressure Independent Control Valve (PICV)

by Crane Fluid Systems

Download Add to collection

Description

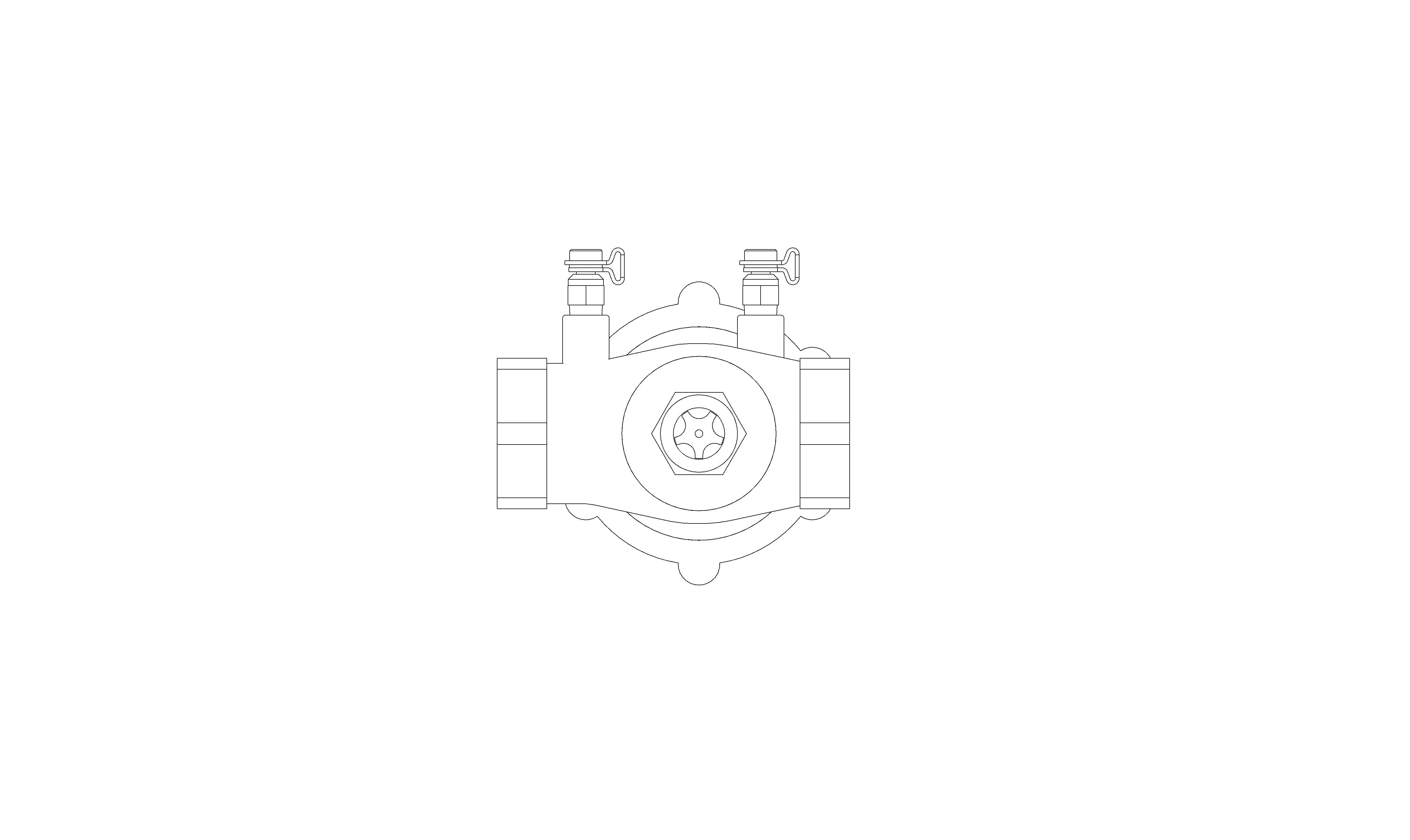

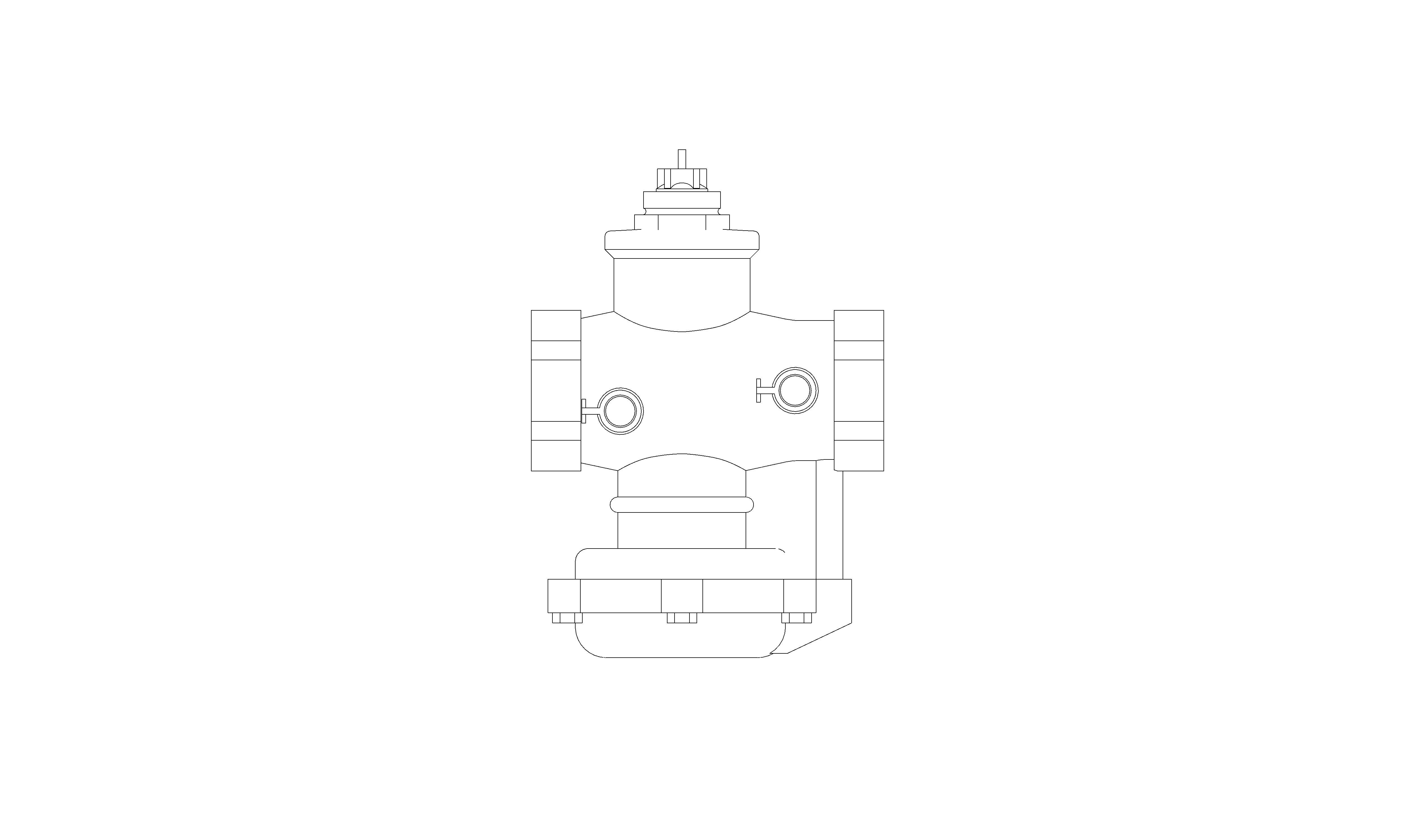

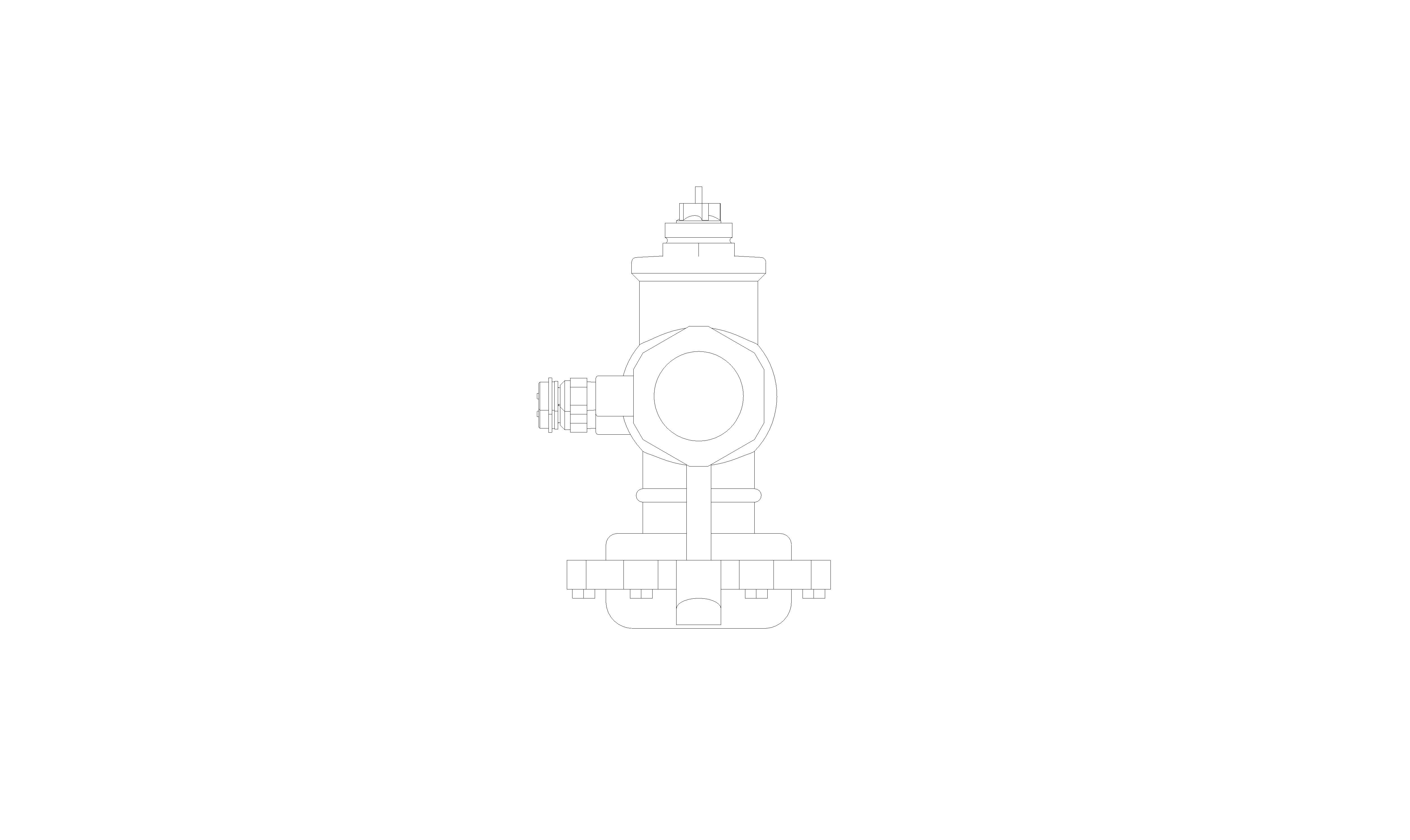

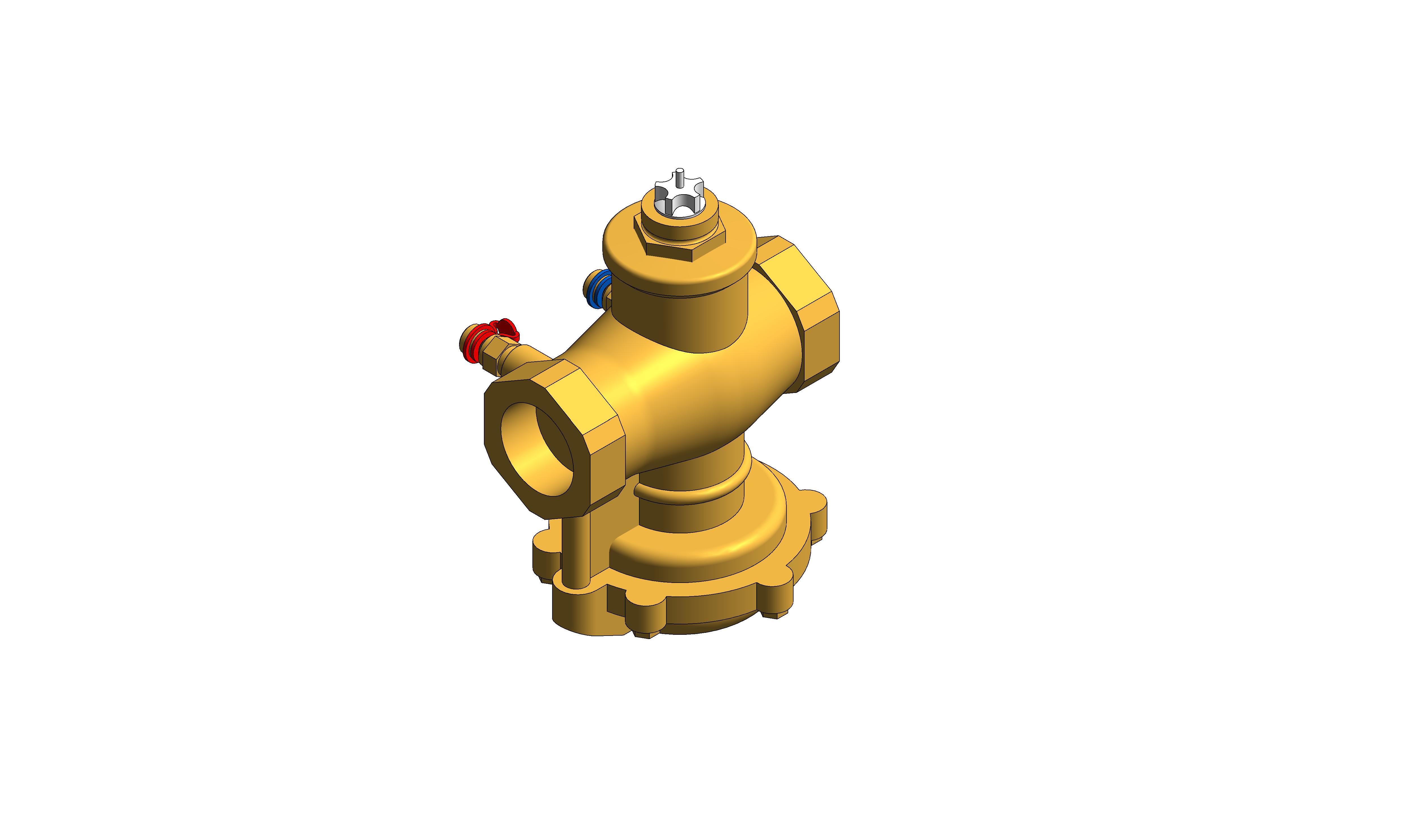

D995 - DN40 & DN50

Pressure Independent Control Valve (PICV)

Features & Benefits

Comprehensive flow range available, allowing for cost effective valve selections. The PICV Peak Pro has up to 25% higher max flow compared to the previous model
Accurate over a wide ΔP range - up to 800kPa
Class IV leakage
PN16 rated product, suitable for high pressure applications
Design validation testing to BSRIA BTS01. As per Cyclic Testing requirements, valve subjected to 10,000 cycles (equivalent to 15 years* of typical service)
Comprehensive testing undertaken for each valve - pressure tested to BS EN 12266-1
Integral test points for verification of

Object Data

1 Revision

Last Updated

08/09/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

Maintenance Information

Technical Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/cranefs-d995-dn40-dn50/document/object-user-guide
A137.10 mm
Accessibility Performancen/a
Assembly CodeD2090800
Asset TypeFixed
B93.80 mm
BIM Object NameCrane_PipeAccessories_PressureIndependentControlValve_D995
BodyBronze
BonnetBronze
C103.90 mm
Classification NameUniclass2015
Classification ValuePr_65_54_40_16
Code Performancen/a
ColorBronze
Connection Size40.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-06-23 T:09:00:00
D71.60 mm
DescriptionDeveloped in the UK, tested to BSRIA PICV standards and utilising high quality materials, these valves can provide equal percentage performance which delivers optimum control valve authority. Crane FS go further to give you the flexibility, offering various actuator options and measuring points, along with a wide differential pressure and flow rate range available. All of these factors combine to ensure our product will help you to design, deliver and maintain a system which closes the performance gap and enables an energy and cost reduction over its lifetime.
DialPlastic Nylon
DiaphragmRubber EPDM
DN40Yes
DN50No
Documentation Certificateswww.bimstore.co/products/cranefs-d995-dn40-dn50/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/cranefs-d995-dn40-dn50/document/installation-guide
Documentation Literaturewww.bimstore.co/products/cranefs-d995-dn40-dn50/document/product-literature
Documentation Maintenancewww.bimstore.co/products/cranefs-d995-dn40-dn50/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/cranefs-d995-dn40-dn50/document/technical-data-sheet
DP ControllerStainless Steel
Duration UnitYear
E58.94 mm
End CapBronze
End ConnectionBSP Female Taper to BS EN 10226
Expected Life0
F78.50 mm
FeaturesMaintains equal percentage control characteristic at all flow rate settings; Pressure independent control of flow; Simple flow rate setting; Adjustable over wide range of flow rates; Activation DP 25-40kPa (DN40) and 25-50 kPa (DN50) dependent on setting; Integral test points for Dp verification.
FinishBronze
Flow0.0 L/s
G58.60 mm
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.MIXING
KeynoteS12
ManufacturerCrane
Manufacturer NameCrane
MaterialBronze, DZR Brass, Acetyl Copolymer, Rubber EDPM
MediumGroup 2 Liquids
ModelD995
Model NumberD995
Model ReferenceDN40
NBS DescriptionControl valves
NBS Object NameCrane - Control valves
NBS Office Master Tagn/a
NBS Reference90-15-40/329
Nominal Depth130.54 mm
Nominal Height197.70 mm
Nominal Length137.10 mm
O-Ring SealEPDM
Operating Pressure Range Across Valve800KPA
OperatorActuator
Pressure RatingPN16
Production Year2021
Referenced StandardBS EN 1982 (CC491K), BS EN 12164 (CW602N), BS EN 10226
Replacement Costn/a
Shapen/a
SizeDN40
Spare PartsLocking cap (for commissioning)
Specification NotesThe PICV shall have a constant control characteristic at all flow settings and control flow rates at differential pressures up to 800 kPa. Flow rates will be externally adjustable, and set point recordable. Integral test points will be fitted to verify setting pressure allowing pumps to be set at optimum speed to maximise energy savings. Shall be manufactured from Bronze, with Stainless Steel springs, and an EPDM diaphragm. Shall be rated to PN16 and operate at temperatures to 100°C.
SpringStainless Steel
Temperature Rating-10°C to 100°C
Type CommentsDN40
Type NameDN40
URLwww.cranefs.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
Weight3.75 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
