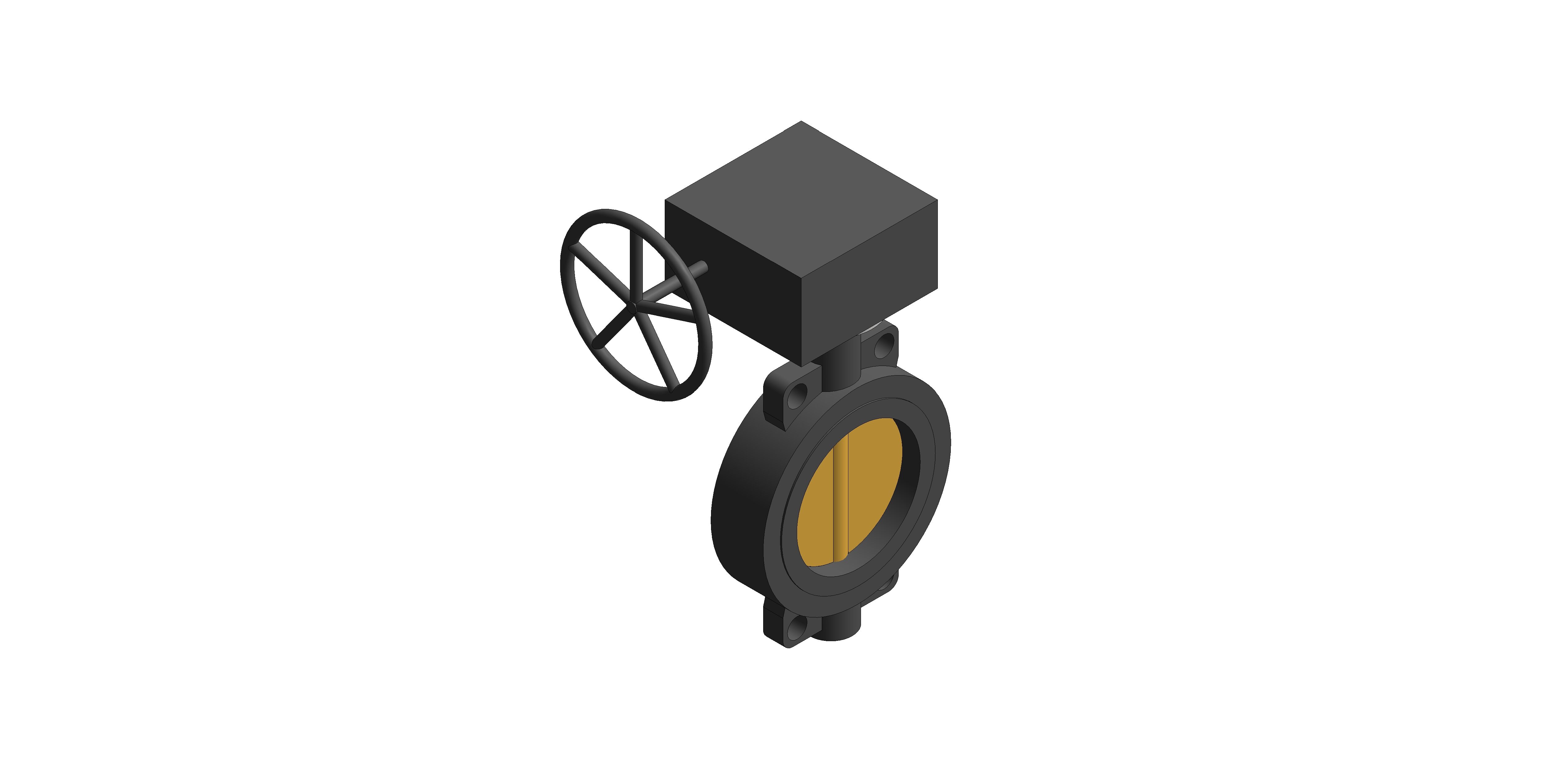

F627 - Semi-Lugged Gearbox Operated Butterfly Valves - Ductile Iron

16.7k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

11/08/2021

Download BIM

Add to collection

Available for:

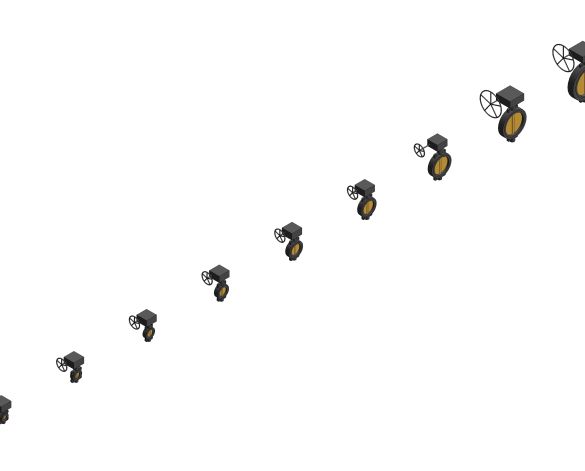

F627 - 50mm to 600mm

Semi-Lugged Gearbox Operated Butterfly Valves - Ductile Iron

Features & Benefits

Robust, ductile iron valve body for long life service
The anti-blow out stem design provides a safe and secure operation
Valve body semi-lugged to fit PN16 or ANSI Class 125 flanges
Fully bonded epoxy paint system for superior corrosion resistance
Suitable for applications where Level 3 C3 (Medium) corrosion protection is required
Maintenance free valve design, reducing downtime
Sizes 50-300mm are suitable for use with flanges conforming to BS EN 1092-2 PN10 or PN16 and ANSI B16.1 Class 125.
Sizes 350-600mm are for PN16 flanges only

Size	50mm to 600mm
Pressure Rating	PN16 / Class 125
End Connections	To suit flange connections BS EN 1092-2 PN10 or PN16 and ANSI B16.1 Class 125.
Material	Ductile Iron

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/

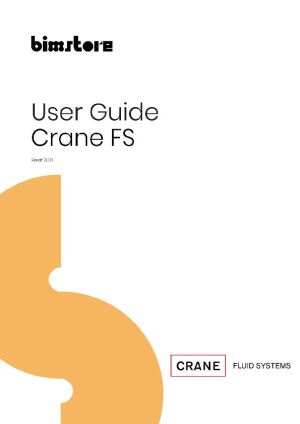

_Object User Guidewww.bimstore.co/products/cranefs-f627/document/object-user-guide
10202.00 mm
284.00 mm
383.00 mm
443.00 mm
570.00 mm
625.00 mm
7205.00 mm
8107.00 mm
964.20 mm
A163.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B115.00 mm
BIM Object NameCraneFS_ButterflyValve_SemiLuggedGearboxOperated_F627
C52.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
Colorn/a
Connection Size100.00 mm
Connection Size Radius50.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-10T:09:00:00
D32.00 mm
DescriptionF627 - Semi-Lugged Gearbox Operated Butterfly Valves - Ductile Iron
Disc MaterialCrane - Metal - Bronze
Documentation Certificateswww.bimstore.co/products/cranefs-f627/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/cranefs-f627/document/installation-guide
Documentation Literaturewww.bimstore.co/products/cranefs-f627/document/product-literature

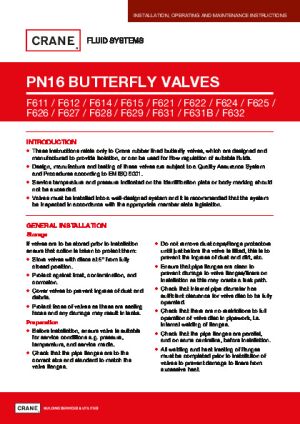

Documentation Maintenancewww.bimstore.co/products/cranefs-f627/document/maintenance-information

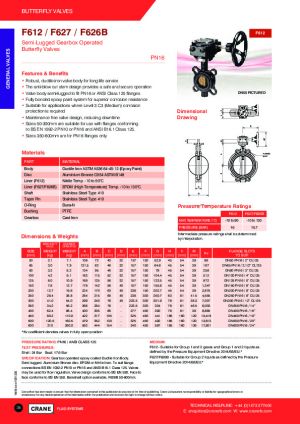

Documentation Technicalwww.bimstore.co/products/cranefs-f627/document/technical-data-sheet
Duration UnitYear
E157.00 mm
Expected Life0
F150.00 mm
Featuresn/a
Finishn/a
G104.40 mm
Graden/a
H45.00 mm
h54.00 mm
Handwheel MaterialCrane - Metal - Iron - Ductile Epoxy Paint
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inner Radius50.00 mm
K Coefficient512
KeynoteS
Loss MethodK Coefficient
M39.00 mm
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
Mid Radius68.25 mm
ModelF627 - Semi-Lugged Gearbox Operated Butterfly Valves - Ductile Iron
Model NumberF627
Model ReferenceF627 - Semi-Lugged Gearbox Operated Butterfly Valves - Ductile Iron
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameCrane FS - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth52.00 mm
Nominal Height392.00 mm
Nominal Length235.00 mm
Outer Radius78.00 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Spare Partsn/a
Symbol Length60.00 mm
Type CommentsF627 - Semi-Lugged Gearbox Operated Butterfly Valves - Ductile Iron
Type NameF627 - Semi-Lugged Gearbox Operated Butterfly Valves - Ductile Iron
URLwww.cranefs.com/
Valve MaterialCrane - Metal - Iron - Ductile Epoxy Paint
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
