FM463W - Check Valves - PN16 - Ductile Iron

by Crane Fluid Systems

Download Add to collection

Description

Features & Benefits

Check valves permit flow in one direction only and close automatically if flow reverses, depending upon pressure and velocity of flow to perform the functions of the opening and closing.
Non-Slam design as a result of rubber seat and spring-assisted closure.
EPDM rubber seat to facilitate quiet operation and improve disk seating.
Eyebolt tapped holes in sizes DN200 and above, to fit bolts to BS EN ISO 3226:2010 (eyebolts are not supplied with product).
Design and construction lends itself to pump duty applications.
WRAS approved model FM463W DN50 - DN300 for potable water applications rated PN16

Object Data

1 Revision

Last Updated

09/06/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

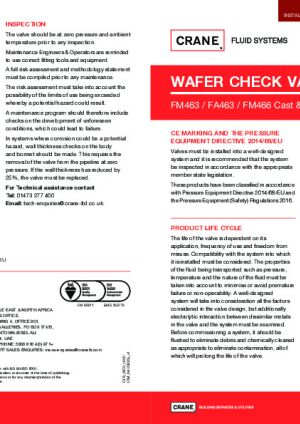

Installation Guide

Maintenance Information

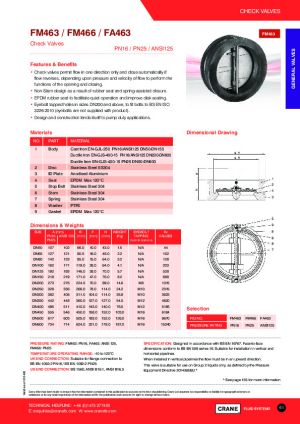

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/cranefs-fm463w/document/object-user-guide
A171 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B119 mm
Back Ring T16 mm
BIM Object NameCraneFS_CheckValve_PN16_FM463W
C83 mm
Center Detail Offset27 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_40_13
Code Performancen/a
Colorn/a
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2022-06-09T:09:00:00
D26 mm
DescriptionFM463W - Check Valves - PN16 - Ductile Iron
Dia100 mm
Disc MaterialCrane - Metal - Stainless Steel
Disc Thickness10 mm
Documentation Certificateswww.bimstore.co/products/cranefs-fm463w/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/cranefs-fm463w/document/installation-guide
Documentation Literaturewww.bimstore.co/products/cranefs-fm463w/document/product-literature
Documentation Maintenancewww.bimstore.co/products/cranefs-fm463w/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/cranefs-fm463w/document/technical-data-sheet
Duration UnitYear
E48 mm
Expected Life0
F28 mm
Featuresn/a
Finishn/a
G11 mm
Graden/a
H64 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Internal A149 mm
KeynoteS
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelFM463W - Check Valves - PN16 - Ductile Iron
Model NumberFM463W
Model ReferenceFM463W - Check Valves - PN16 - Ductile Iron
NBS DescriptionCheck valves
NBS Noten/a
NBS Object NameCrane FS - Check valves
NBS Office Master Tagn/a
NBS Reference90-15-40/323
Nominal Depth171 mm
Nominal Height171 mm
Nominal Length64 mm
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Spare Partsn/a
Stem 1 Offset8 mm
Stem 1 Radius4 mm
Stem 2 Radius8 mm
Top Thickness16 mm
Type CommentsFM463W - Check Valves - PN16 - Ductile Iron
Type NameFM463W - Check Valves - PN16 - Ductile Iron
URLwww.cranefs.com/
Valve MaterialCrane - Metal - Cast Iron
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
