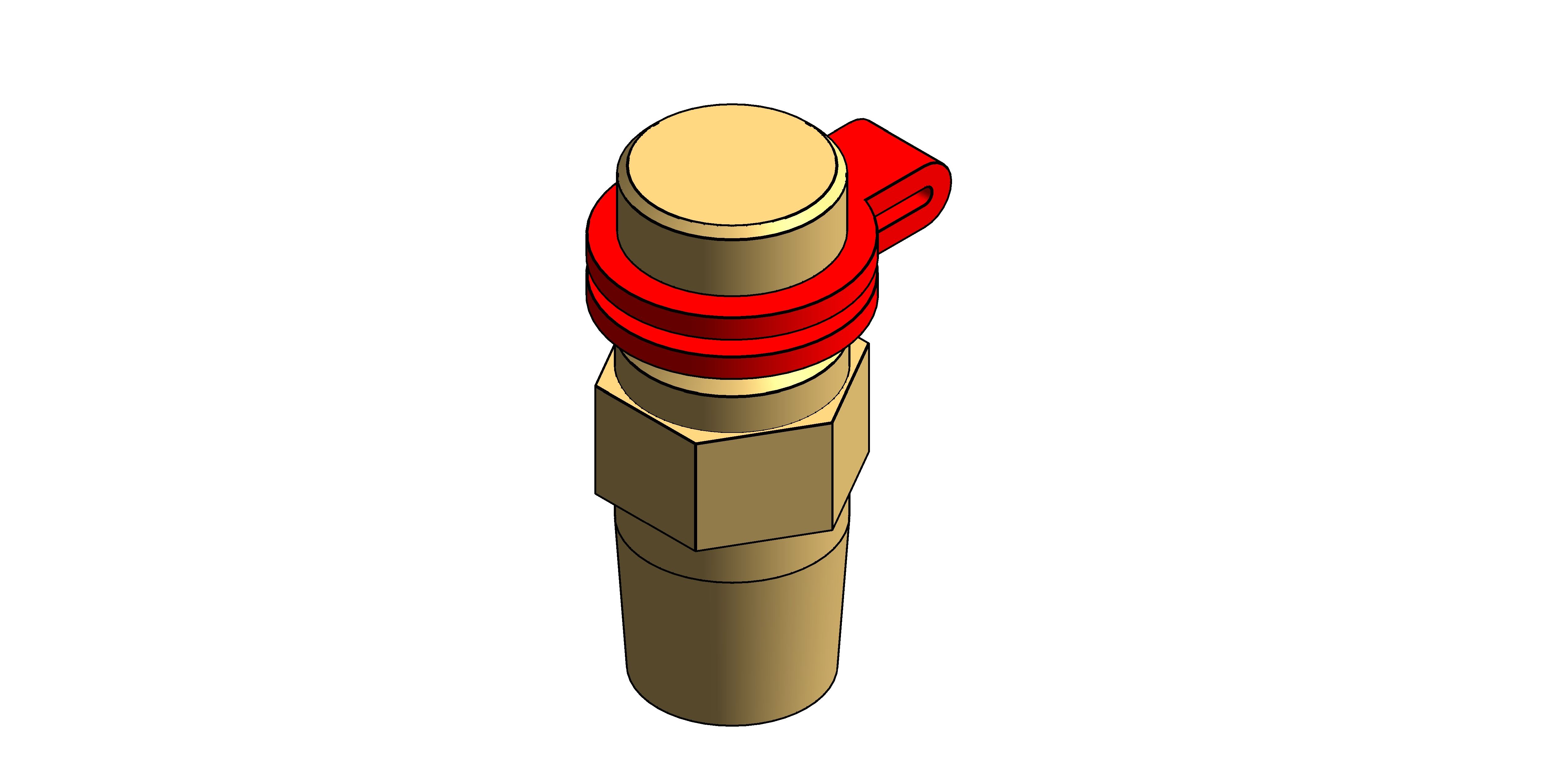

P84 - Pressure Test Point

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/cranefs-p84/document/object-user-guide
• Accessibility Performancen/a
• Assembly CodeD20
• Asset TypeFixed
• BIM Object NameCraneFS_PressureTestPoint_P84
• Cap MaterialCrane - PVC - Red
• Classification NameUniclass 2015
• Classification ValuePr_65_54_93_87
• Code Performancen/a
• Colorn/a
• Connection Size0.00 mm
• Constituentsn/a
• Created Byenquiries@cranefs.com
• Created On2021-08-31T:09:00:00
• Default Elevation0.00 mm
• DescriptionP84 - Pressure Test Point
• Diameter14.00 mm

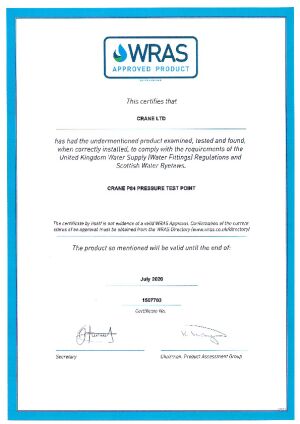

• Documentation Certificateswww.bimstore.co/products/cranefs-p84/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/cranefs-p84/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/cranefs-p84/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/cranefs-p84/document/maintenance-information

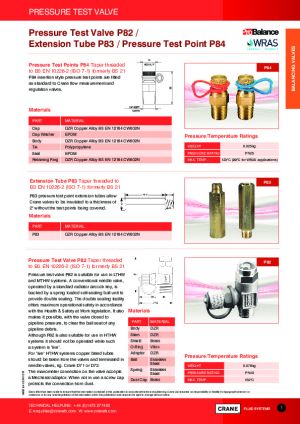

• Documentation Technicalwww.bimstore.co/products/cranefs-p84/document/technical-data-sheet
• Duration UnitYear
• Expected Life0
• Featuresn/a
• Finishn/a
• Graden/a
• Height35.00 mm
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.ISOLATING
• K Coefficient0
• KeynoteS
• Loss MethodK Coefficient
• ManufacturerCrane FS
• Manufacturer NameCrane FS
• Materialn/a
• ModelP84 - Pressure Test Point
• Model NumberP84
• Model ReferenceP84 - Pressure Test Point
• NBS DescriptionTest points
• NBS Noten/a
• NBS Object NameCrane FS - Test points
• NBS Office Master Tagn/a
• NBS Reference90-10-90/360
• Nominal Depth14.00 mm
• Nominal Height35.00 mm
• Nominal Length14.00 mm
• Production Year2021
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare Partsn/a
• Test Point MaterialCrane - Metal - DZR Copper Alloy
• Type CommentsP84 - Pressure Test Point
• Type NameP84 - Pressure Test Point
• URLwww.cranefs.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborenquiries@cranefs.com
• Warranty Guarantor Partsenquiries@cranefs.com
