D14 - Globe Valve - Series A

by Crane Fluid Systems

Download Add to collection

Description

PN32* Bronze Globe Valve

Features & Benefits:

Crane bronze globe valves are highly efficient for throttling because seat and disc designs provide flow characteristics with proportionate relationships between valve lift and flow rate.
*Sizes 21/2" & 3" rated PN25

Object Data

1 Revision

Last Updated

22/03/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

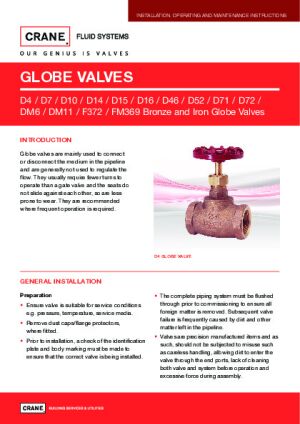

Installation Guide

Product Literature

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/d14-globe-valve-series-a/document/object-user-guide
A115.00 mm
a18.98 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b25.00 mm
B159.00 mm
BIM Object NameCraneFS_GlobeValve_SeriesA_D14
BodyBronze BS EN 1982 (CC491K)
BonnetBronze BS EN 1982 (CC491K)
c90.00 mm
C92.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_16
Code Performancen/a
Colorn/a
Connection Radius20.00 mm
Connection Size40.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2022-02-01 T:09:00:00
d40.00 mm
DescriptionCrane bronze globe valves are highly efficient for throttling because seat and disc designs provide flow characteristics with proportionate relationships between valve lift and flow rate.
DiscBronze BS EN 1982 (CC491K)
Disc Stem RingManganese Bronze BS EN 12164 CW721R
Documentation Certificateswww.bimstore.co/products/d14-globe-valve-series-a/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/d14-globe-valve-series-a/document/installation-guide
Documentation Literaturewww.bimstore.co/products/d14-globe-valve-series-a/document/product-literature
Documentation Maintenancewww.bimstore.co/products/d14-globe-valve-series-a/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/d14-globe-valve-series-a/document/technical-data-sheet
Duration UnitYear
e30.00 mm
End Connection(UK)Taper threaded to BS EN 10226-2 (ISO 7-1) formerly BS 21
End Connection(US)ANSI B1.20.1
Expected Life0
f7.95 mm
Featuresn/a
Finishn/a
g60.00 mm
GasketAsbestos Free
GlandBrass BS EN 12164 CW614N
Graden/a
h42.00 mm
HandwheelAluminium
Handwheel NutBrass BS EN 12164 CW614N
i13.14 mm
ID PlateAluminium
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
j50.00 mm
K Coefficient0
KeynoteS
Loss MethodK Coefficient
m16.73 mm
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD14
Model NumberD14
Model ReferenceD14 Globe Valve - Series A - Bronze
NBS DescriptionCopper alloy globe valves
NBS Noten/a
NBS Object NameCrane FS - Copper alloy globe valves
NBS Office Master Tagn/a
NBS Reference90-10-90/344
Nominal Depth92.00 mm
Nominal Height192.00 mm
Nominal Length115.00 mm
OperatorHandwheel
PackingAsbestos Free
Packing NutBrass BS EN 12164 CW614N
Pressure RatingPN32
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Spare Partsn/a
Specification NotesValves are manufactured in accordance with BS 5154:1991 series A, PN32 for sizes 1/4" to 2" and PN25 for sizes 21/2" and 3". Design incorporates a bronze 35 degree wide angle disc retained on stem by a threaded ring; body seat is integral of the narrow contact angled type. This valve is not suitable for use on group 1 gases or unstable fluids, as defined by the Pressure Equipment Directive 2014/68/EU.
StemManganese Bronze BS EN 12164 CW721R
Temperature Operating Range-10 to 260°C
Type CommentsD14 Globe Valve - Series A - Bronze
Type NameD14 Globe Valve - Series A - Bronze
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
Weight2.06 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
