D46 - Globe Valve - Bronze

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/d46-globe-valve-bronze/document/object-user-guide
• a19.97 mm
• A121.00 mm
• Accessibility Performancen/a
• Assembly CodeD20
• Asset TypeFixed
• Available OptionsP150 Locking Device
• b25.00 mm
• B220.00 mm
• BIM Object NameCraneFS_GlobeValve_D46
• BodyBronze BS EN 1982 (CC491K)
• Body Seat Ring13% Cr. Steel BS 970 Pt1 416S21R or BS 970 Pt1 431S29
• BonnetBronze BS EN 1982 (CC491K)
• Bonnet Studn/a
• Bonnet Stud Nutn/a
• c90.00 mm
• C103.00 mm
• Classification NameUniclass 2015
• Classification ValuePr_65_54_95_16
• Code Performancen/a
• Colorn/a
• Connection Radius20.00 mm
• Connection Size40.00 mm
• Constituentsn/a
• Created Byenquiries@cranefs.com
• Created On2022-02-01 T:09:00:00
• d60.00 mm
• DescriptionCrane bronze globe valves are highly efficient for throttling because seat and disc designs provide flow characteristics with proportionate relationships between valve lift and flow rate
• Disc316 Stainless Steel
• Disc Stem RingManganese Bronze BS EN 12164 (CW721R)
• Documentation Certificateswww.bimstore.co/products/d46-globe-valve-bronze/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/d46-globe-valve-bronze/document/installation-guide

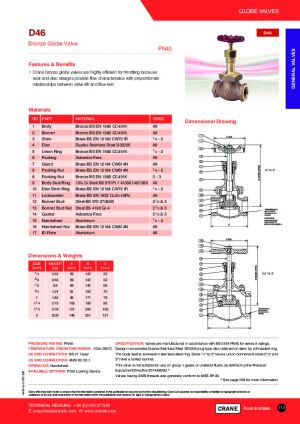

• Documentation Literaturewww.bimstore.co/products/d46-globe-valve-bronze/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/d46-globe-valve-bronze/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/d46-globe-valve-bronze/document/technical-data-sheet
• Duration UnitYear
• e14.71 mm
• End Connection(UK)BS 21 Taper
• End Connection(US)ANSI B1.20.1
• Expected Life0
• f50.00 mm
• Featuresn/a
• Finishn/a
• g18.73 mm
• Gasketn/a
• GlandBrass BS EN 12164 (CW614N)
• Graden/a
• h31.69 mm
• HandwheelAluminium
• Handwheel NutBrass BS EN 12164 (CW614N )
• i37.00 mm
• ID PlateAluminium
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.ISOLATING
• j28.00 mm
• k130.00 mm
• K Coefficient0
• KeynoteS
• l28.00 mm
• LockwasherBrass BS EN 1652 (CW507L )
• Loss MethodK Coefficient
• m75.00 mm
• ManufacturerCrane FS
• Manufacturer NameCrane FS
• Materialn/a
• ModelD46
• Model NumberD46
• Model ReferenceD46 Globe Valve - Bronze
• n44.37 mm
• NBS DescriptionCopper alloy globe valves
• NBS Noten/a
• NBS Object NameCrane FS - Copper alloy globe valves
• NBS Office Master Tagn/a
• NBS Reference90-10-90/344
• Nominal Depth103.00 mm
• Nominal Height254.00 mm
• Nominal Length121.00 mm
• OperatorHandwheel
• PackingAsbestos Free
• Packing NutBronze BS EN 1982 (CC491K)
• Pressure RatingPN40
• Production Year2022
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Size1 1/2"
• Spare Partsn/a
• Specification NotesValves are manufactured in accordance with BS 5154 PN40 for series A ratings. Design incorporates Duplex Stainless Steel S32205 plug type disc retained on stem by a threaded ring. The body seat is screwed-in stainless steel ring. Sizes 1/4" to 2" have a union bonnet and sizes 21/2" and 3" have a bolted bonnet. This valve is not suitable for use on group 1 gases or unstable fluids, as defined by the Pressure Equipment Directive 2014/68/EU. Valves having ANSI threads also generally conform to MSS SP-80.
• StemManganese Bronze BS EN 12164 (CW721R)
• Temperature Operating Range-10 to 260°C
• Type CommentsD46 Globe Valve - Bronze
• Type NameD46 Globe Valve - Bronze
• Union RingBronze BS EN 1982 (CC491K)
• URLwww.cranefs.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborenquiries@cranefs.com
• Warranty Guarantor Partsenquiries@cranefs.com
• Weight3.78 kg
