DM11 - Globe Valve - Bronze

by Crane Fluid Systems

Download Add to collection

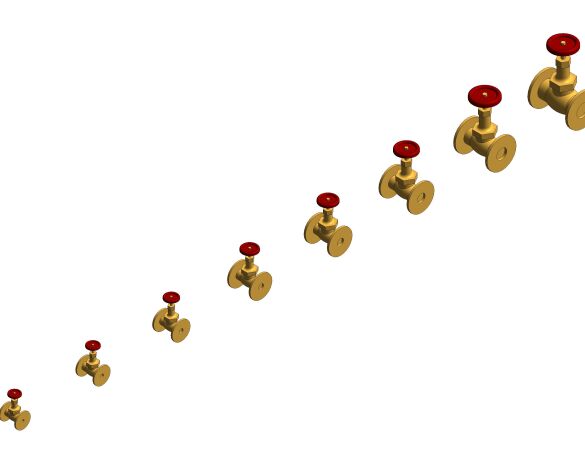

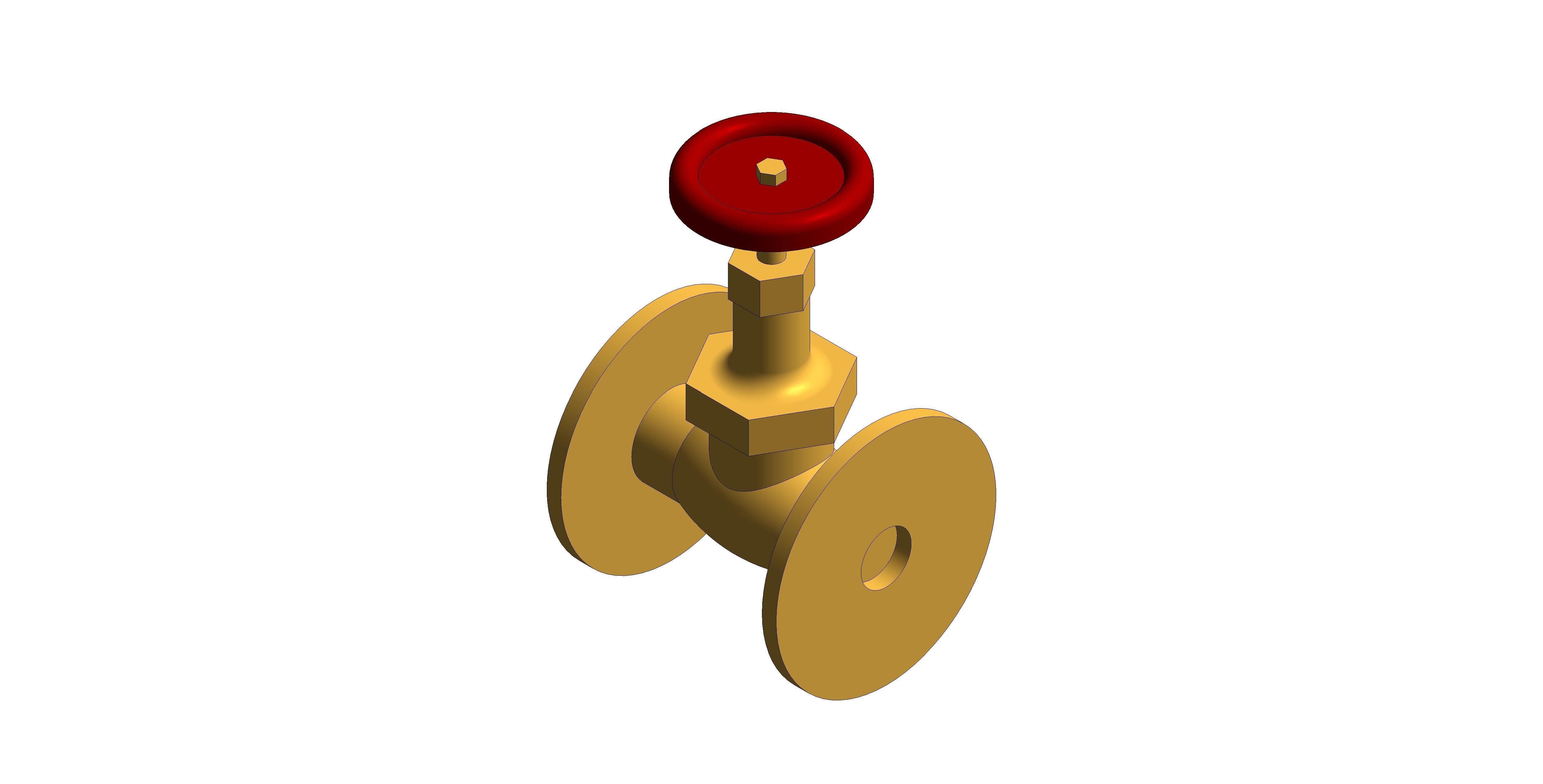

Description

PN25 Flanged Bronze Globe Valve

Features & Benefits:

Crane bronze globe valves are highly efficient for throttling because seat and disc designs provide flow characteristics with proportionate relationships between valve lift and flow rate

Object Data

1 Revision

Last Updated

23/03/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

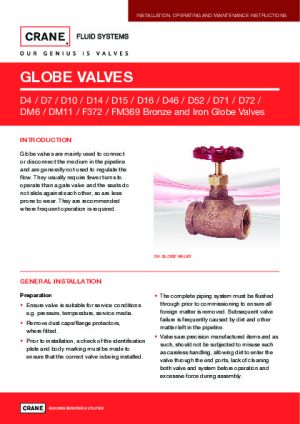

Installation Guide

Product Literature

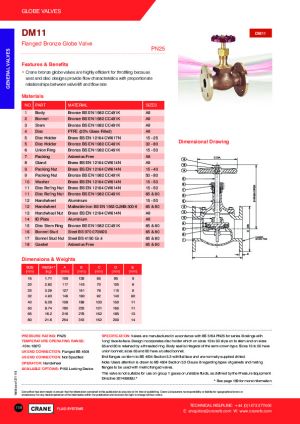

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/dm11-globe-valve-bronze/document/object-user-guide
a11.82 mm
A108.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
Available OptionsP150 Locking Device
b19.00 mm
B128.00 mm
BIM Object NameCraneFS_FlangedGlobeValve_DM11
BodyBronze BS EN 1982 (CC491K)
BonnetBronze BS EN 1982 (CC491K)
Bonnet Studn/a
Bonnet Stud Nutn/a
c25.71 mm
C65.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_16
Code Performancen/a
Colorn/a
Connection Radius7.50 mm
Connection Size15.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2022-02-01 T:09:00:00
d87.00 mm
D95.00 mm
DescriptionCrane bronze globe valves are highly efficient for throttling because seat and disc designs provide flow characteristics with proportionate relationships between valve lift and flow rate.
DiscPTFE (25% Glass Filled)
Disc HolderBrass BS EN 12164 (CW617N)
Disc Retaining NutBrass BS EN 12164 (CW614N)
Disc Stem Ringn/a
Documentation Certificateswww.bimstore.co/products/dm11-globe-valve-bronze/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/dm11-globe-valve-bronze/document/installation-guide
Documentation Literaturewww.bimstore.co/products/dm11-globe-valve-bronze/document/product-literature
Documentation Maintenancewww.bimstore.co/products/dm11-globe-valve-bronze/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/dm11-globe-valve-bronze/document/technical-data-sheet
Duration UnitYear
e9.29 mm
E8.00 mm
End Connection(UK)Flanged BS 4504
End Connection(US)Not Specified
Expected Life0
f41.54 mm
Featuresn/a
Finishn/a
g29.00 mm
Gasketn/a
GlandBrass BS EN 12164 (CW614N)
Graden/a
h16.00 mm
HandwheelAluminium
Handwheel NutBrass BS EN 12164 (CW614N)
i76.20 mm
ID PlateAluminium
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
j50.00 mm
k27.00 mm
K Coefficient0
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelDM11
Model NumberDM11
Model ReferenceDM11 Flanged Bronze Globe Valve
NBS DescriptionCopper alloy globe valves
NBS Noten/a
NBS Object NameCrane FS - Copper alloy globe valves
NBS Office Master Tagn/a
NBS Reference90-10-90/344
Nominal Depth65.00 mm
Nominal Height175.50 mm
Nominal Length108.00 mm
OperatorHandwheel
PackingAsbestos Free
Packing NutBrass BS EN 12164 (CW614N)
Pressure RatingPN25
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partsn/a
Specification NotesValves are manufactured in accordance with BS 5154 PN25 for series B ratings with ‘long’ face-to-face. Design incorporates disc holder which on sizes 15 to 50 slips on to stem and on sizes 65 and 80 is retained by a threaded ring. Body seat is integeral of the semi-crown type. Sizes 15 to 50 have union bonnet; sizes 65 and 80 have a bolted bonnet. End flanges conform to BS 4504 Section 3.3 with flat face and are normally supplied drilled. Note: Users attention is drawn to BS 4504 Section 3.3 Clause 8 regarding types of gaskets and mating flanges to be used with metric flanged valves. This valve is not suitable for use on group 1 gases or unstable fluids, as defined by the Pressure Equipment Directive 2014/68/EU.
StemBronze BS EN 1982 (CC491K)
Temperature Operating Range-10 to 186°C
Type CommentsDM11 Flanged Bronze Globe Valve
Type NameDM11 Flanged Bronze Globe Valve
Union RingBronze BS EN 1982 (CC491K)
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
WasherBrass BS EN 12164 (CW614N)
Weight1.71 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
