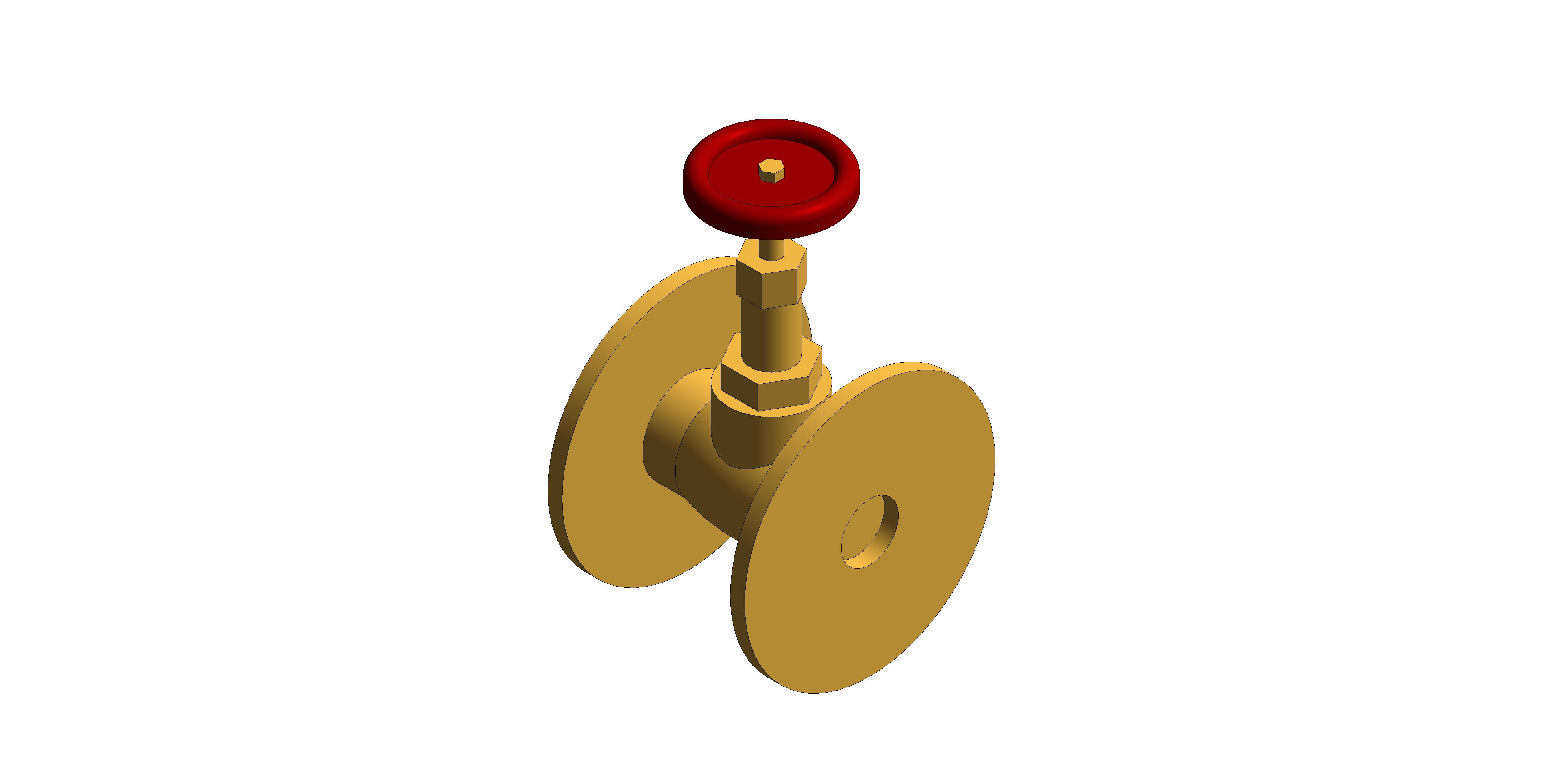

DM6 - Globe Valve - Bronze

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/dm6-globe-valve-bronze/document/object-user-guide
• a9.45 mm
• A80.00 mm
• Accessibility Performancen/a
• Assembly CodeD20
• Asset TypeFixed
• Available OptionsP150 Locking Device
• b19.00 mm
• B97.00 mm
• BIM Object NameCraneFS_FlangedGlobeValve_DM6
• BodyBronze BS EN 1982 (CC491K)
• BonnetBronze BS EN 1982 (CC491K)
• c19.05 mm
• C52.00 mm
• Classification NameUniclass 2015
• Classification ValuePr_65_54_95_16
• Code Performancen/a
• Colorn/a
• Connection Radius7.50 mm
• Connection Size15.00 mm
• Constituentsn/a
• Created Byenquiries@cranefs.com
• Created On2022-02-01 T:09:00:00
• d87.00 mm
• D95.00 mm
• DescriptionCrane bronze globe valves are highly efficient for throttling because seat and disc designs provide flow characteristics with proportionate relationships between valve lift and flow rate.
• DiscPTFE (25% Glass Filled)
• Disc HolderBronze BS EN 1982 (CC491K)
• Disc Retaining NutBrass BS EN 12164 (CW614N)
• Disc Stem RingBrass BS EN 12163 (CW721R)
• Documentation Certificateswww.bimstore.co/products/dm6-globe-valve-bronze/document/product-certificates

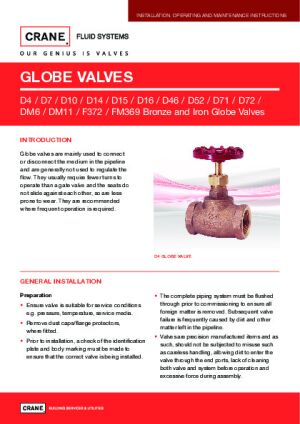

• Documentation Installation Guidewww.bimstore.co/products/dm6-globe-valve-bronze/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/dm6-globe-valve-bronze/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/dm6-globe-valve-bronze/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/dm6-globe-valve-bronze/document/technical-data-sheet
• Duration UnitYear
• e7.43 mm
• E6.00 mm
• End Connection(UK)Flanged BS 4504
• Expected Life0
• f34.78 mm
• Featuresn/a
• Finishn/a
• GlandBrass BS EN 12164 (CW614N)
• Graden/a
• h32.00 mm
• HandwheelAluminium
• Handwheel NutBrass BS EN 12164 CW614N
• Hex A28.00 mm
• Hex B18.00 mm
• i7.00 mm
• ID PlateAluminium
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.ISOLATING
• j9.00 mm
• k62.00 mm
• K Coefficient0
• KeynoteS
• Loss MethodK Coefficient
• ManufacturerCrane FS
• Manufacturer NameCrane FS
• Materialn/a
• ModelDM6
• Model NumberDM6
• Model ReferenceDM6 Flanged Bronze Globe Valve
• NBS DescriptionCopper alloy globe valves
• NBS Noten/a
• NBS Object NameCrane FS - Copper alloy globe valves
• NBS Office Master Tagn/a
• NBS Reference90-10-90/344
• Nominal Depth52.00 mm
• Nominal Height144.50 mm
• Nominal Length80.00 mm
• OperatorHandwheel
• PackingAsbestos Free
• Packing NutBrass BS EN 12164 (CW614N)
• Pressure RatingPN16
• Production Year2022
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• SizeDN15
• Spare Partsn/a
• Specification NotesValves are manufactured in accordance with BS 5154 PN16 for Series B ratings, with ‘short’ face-to-face. Design incorporates disc holder retained on stem by a threaded ring. Body seat is integral of the semi-crown type. End flanges conform to BS 4504 section 3.3 with flat face and are normally supplied drilled. Note: Users attention is drawn to BS 4504 Section 3.3 clause 8 regarding types of gaskets and mating flanges to be used with metric flanged valves. This valve is not suitable for use on Group 1 gases or unstable fluids, as defined by the Pressure Equipment Directive 2014/68/EU.
• StemBrass BS EN 12163 (CW721R)
• Temperature Operating Range-10 to 170°C
• Type CommentsDM6 Flanged Bronze Globe Valve
• Type NameDM6 Flanged Bronze Globe Valve
• URLwww.cranefs.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborenquiries@cranefs.com
• Warranty Guarantor Partsenquiries@cranefs.com
• WasherBrass BS EN 12164 (CW614N)
• Weight1.24 kg
