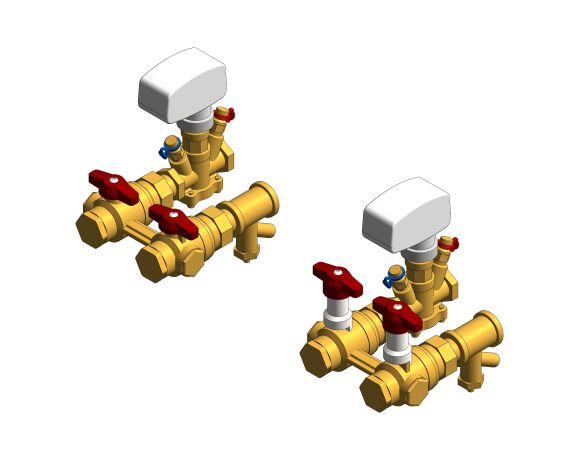

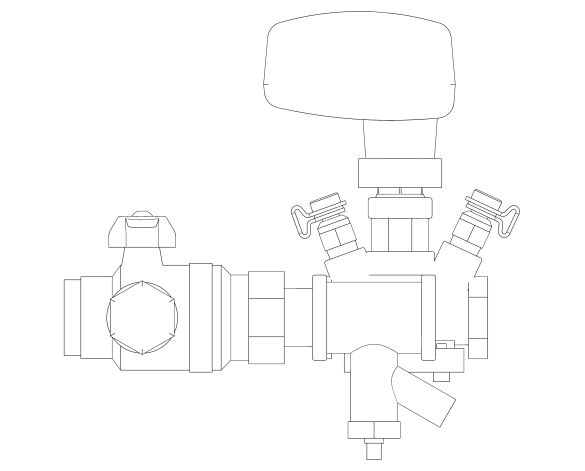

Z9701P - Peak Pro - PICV / Strainer Drain

by Crane Fluid Systems

Download Add to collection

Description

Features & Benefits:

Compact, pre-fabricated unit – now available with Peak Pro PICV with a wide range of settable flows to suit all applications
All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve
Provides accurate flow rates & differential pressure control as well as flow measurement (Z9701PF), system flushing and isolation
DZR H Body tested to 3.1X Design Working Pressure (DWP) during development for design robustness and tested to EN12516-2 to comply with the Pressure Equipment Directive (PED)
Fully assembled & factory tested unit reduces installation time, costs and specification risks
Available with and without extension stems to suit customer specification
Available in 400 kPa & 800 kPa rated variants
On-Off, modulating or feedback actuators are available separately to match specification

Object Data

1 Revision

Last Updated

09/04/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

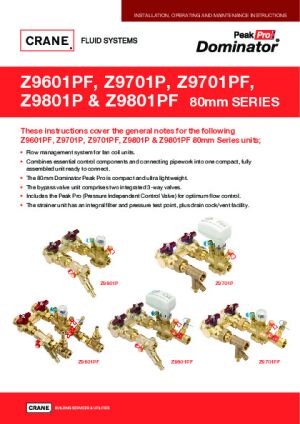

Installation Guide

Maintenance Information

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized ByRyan Lashley
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
A179 mm
Accessibility Performancen/a
Annual MaintenancePICV & Strainer Drain
Assembly CodeD2090800
Asset TypeFixed
B157 mm
BIM Object NameCrane_PipeAccessories_PeakProDominator_(PICV-StrainerDrain)_Z9701P
Body Length105 mm
BrassBrass, Soft Yellow
C163 mm
CE Approvaln/a
Classification NameUniclass2015
Classification ValuePr_65_54_40_16
CO33 mm
Code Performancen/a
Cold WaterPlastic, Blue Dark
ColorBronze
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2019-03-11T09:00:00
D299 Length52 mm
D995 Length74 mm
DescriptionCompact design, with flow and return legs at equal lengths, for simple direct mounting onto terminal unit. Fitted with Peak Pro with a wide range of settable flows to suit all applications. Includes Venturi metering station for improved accuracy and pressure drop recovery. All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve. Bypass unit with integrated 3-way isolation valves. Flushing valves on flow and return - in accordance with BSRIA BG29.Integrated dial allowing for calibrated setting of the PICV with integrated test points allowing for ΔP verification.
Dia15 mm
Dia 215 mm
Documentation Certificatesn/a
Documentation Installation Guidewww.cranefs.com/category/dominator
Documentation Literaturen/a
Documentation Maintenancewww.cranefs.com/product/picv/d995
Documentation Technicaln/a
Duration UnitYears
Expected Life0
FeaturesCompact design, with flow and return legs at equal lengths, for simple direct mounting onto terminal unit. Fitted with Peak Pro with a wide range of settable flows to suit all applications. Includes Venturi metering station for improved accuracy and pressure drop recovery. All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve. Bypass unit with integrated 3-way isolation valves. Flushing valves on flow and return - in accordance with BSRIA BG29.Integrated dial allowing for calibrated setting of the PICV with integrated test points allowing for ΔP verification.
FinishBronze to BSEN 1982 CC49IK
Graden/a
Gross Weightn/a
Hot WaterPlastic, Red
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.MIXING
KeynoteS12
ManufacturerCrane Fluid Systems
Manufacturer NameCrane Fluid Systems
MaterialBronze to BSEN 1982 CC49IK
ModelPeak Pro Dominator
Model ReferencePICV & Strainer Drain
NBS DescriptionControl valves
NBS Object NameCrane - Control valves
NBS Office Master Tagn/a
NBS Reference90-15-40/329
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length179 mm
Operation And Maintenance Manualn/a
Production Year2019
Product Literaturen/a
Product RangePeak Pro Dominator
Radius Calc12 mm
Radius Calc 212 mm
Referenced Standardn/a
Reference Standardn/a
Replacement Costn/a
Shapen/a
Shipping Weightn/a
SizeDN15 x DN15
Spare Partsn/a
Type CommentsPICV & Strainer Drain
Type NamePICV & Strainer Drain
URLwww.cranefs.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@cranefs.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
