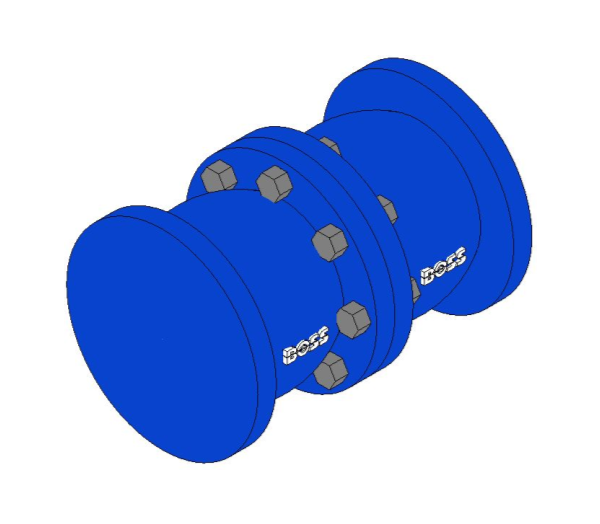

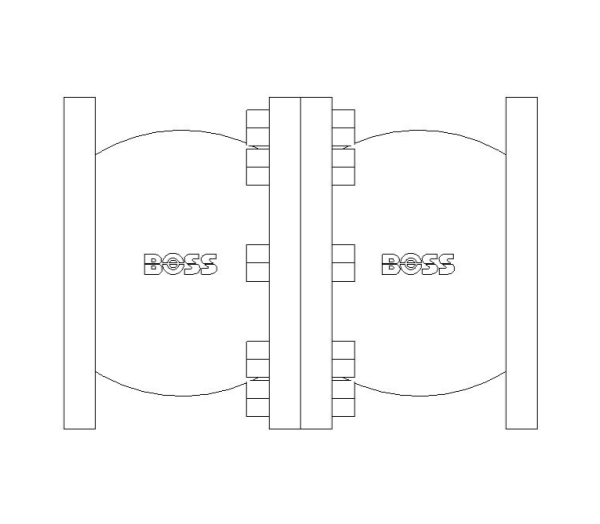

Double Non Return Valve - 11XS

Download Add to collection

Description

Double Non-Return Valve

Object Data

1 Revision

Last Updated

16/09/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
12 HolesNo
8 HolesYes
Accessibility PerformanceN/A
AirNo
ApplicationDouble Non-Return Valve
ApprovalWRAS approved.
Assembly CodeD2020200
Asset TypeFixed
BIM Object NameBOSS_PipeAccessories_DoubleNonReturnValve_11XS
BodySG Iron 420/12
Bolt Diameter180 mm
Bolt Radius90 mm
Classification NameUniclass2015
Classification ValuePr_65_54_30_12
Code PerformanceN/A
ColorBlue
ConnectionFlange
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On2019-06-07 T09:00:00
DescriptionDouble Non-Return Valve
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesPN 16/16 Flanged Valve
FinishBlue
Flange Rad110 mm
Flange Thick21 mm
Flow Range LPHN/A
Flow Range LPSN/A
Front 1 Nut64 mm
Front 2 Nut40 mm
Gas CombustibleNo
Gas CorrosiveNo
Gas InertNo
Gasket MaterialNitrile 70 Shore
Gas OxygenNo
GPID Code1009988949
GradeN/A
Guide MaterialGun Metal Grade LG2
Ifc Export AsIfcValveType.DOUBLECHECK
Ifc Export TypeIfcValve
K Coefficient0
K Coefficient TableSwing Check Valve Flanged
KeynoteS
L1315 mm
L279 mm
Loss MethodNot Defined
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialSG Iron 420/12 Body
Maximum Working Pressure16 Bar
Maximum Working Temperature95°C
ModelDN100 BOSS 11XS Double Non-Return Valve
Model Number36700236
Model ReferenceDN100 BOSS 11XS Double Non-Return Valve
NBS DescriptionCheck and non-return valves
NBS Object NameBSS BOSS Products -Check and non-return valves
NBS Office Master TagN/A
NBS Reference90-15-40/323
Nominal Depth220 mm
Nominal Dia100 mm
Nominal Height220 mm
Nominal Length315 mm
Nominal Width315 mm
Nut 1 Top64 mm
Nut 2 Top40 mm
OilNo
Plunger MaterialAcetal Head with DZR Brass Shaft
Pressure DropN/A
Production Year2019
R172 mm
R289 mm
R3110 mm
R490 mm
Referenced StandardN/A
Replacement CostN/A
Ring MaterialAcetal
Seal MaterialPTFE
ShapeCylindrical
SizeDN100
Spare PartsBOSS Technical Team Tel 0116 245 5940
Spring MaterialStainless Steel 304 S26
SteamNo
Stud MaterialMild Steel (Plated)
Tubing OptionsN/A
Type CommentsDN100 BOSS 11XS Double Non-Return Valve
Type NameDN100 BOSS 11XS Double Non-Return Valve
URLwww.bssindustrial.co.uk/products/valves-and-filtration
Valve TypeDouble Non-Return Valve
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
Weight24
