Ductile Iron Coupling

by Harmer Drainage Systems

Download Add to collection

Description

The Harmer SML lightweight cast iron pipework systemis dry-jointed, Agrément certified, and has a proventrack record for above-ground drainage. With itscomprehensive range of fittings and accessories, SML isthe ideal soil and waste system which can also be usedfor rainwater installations.

This download contains the Ductile Iron Coupling BIM Component

Object Data

2 Revision

Last Updated

06/09/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision2
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2030100
Asset TypeFixed
BIM Object NamePipeFitting_HarmerDrainage_SML_DuctileIronCouplings
Bottom Half Height66 mm
Classification NameUniclass2015
Classification ValuePr_65_52_63_12
Code Performancen/a
Codes Of PracticeBS EN 12056-2, BS EN 12056-3, BS EN 752: 1996
Coefficient Of Thermal Expansion0.0105 mm/m/K
Colorn/a
Connection Dia Calc0 mm
Connection Radius50 mm
Constituentsn/a
Coupling TypeHalf Coupling : 100mm
Created Byinfo@alumascwms.co.uk
Created On2017-06-01T09:00:00
d168 mm
Declaration Of Confomitywww.harmerdrainage.co.uk/downloader.aspx?type=ce-mark&file=harmer-sml-ce-declaration-of-confomity.pdf&info=Harmer SML CE Declaration of Confomity

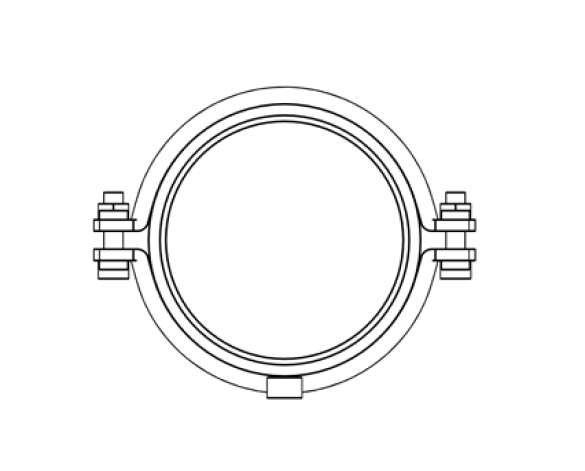

DescriptionThe Harmer SML Ductile coupling is a two-part coupling with an integrated electrical continuity connection. Available in 50 to 200mm diameters the couplings are made from ductile iron grade EH-GJS-400-15 and coated in red epoxy. Incorporating an EPDM gasket, the coupling is bolted together using M8 bolts. The electrical continuity is activated by tightening two screws located on either side of the coupling.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.harmerdrainage.co.uk/downloader.aspx?type=Brochure&file=sml_technical.pdf&info=Harmer SML Technical Submittal
Documentation Maintenancen/a
Documentation Technicalwww.harmerdrainage.co.uk/downloader.aspx?type=Brochure&file=sml_technical.pdf&info=Harmer SML Technical Submittal
Drainage Design Calculatorwww.harmerdrainage.co.uk/calculators/
Duration UnitYears
Environmental Considerations100% recyclable material therefore all waste can be returned to the furnace to make new cast iron products.
Expected Life0
Featuresn/a
FinishCast Iron
Graden/a
h134 mm
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Internal Diameter105 mm
Internal Radius52 mm
KeynoteR11/140
l 160 mm
l 278 mm
ManufacturerHarmer Drainage
Manufacturer NameHarmer Drainage
Manufacturers AddressALUMASC WATER MANAGEMENT SOLUTIONS, Station Road, Burton Latimer, Kettering, NN15 5JP, NN15 5JP
Manufacturers Emailinfo@alumascwms.co.uk
Manufacturers Telephone Number+44 (0)1536 383810
MaterialCast Iron
ModelDuctile Iron Couplings
Model NumberDuctile Iron Couplings
Model ReferenceDuctile Iron Couplings
NBS DescriptionCast iron drainage pipe and fittings
NBS Object NameHarmer Drainage - Cast iron drainage pipe and fittings
NBS Office Master Tagn/a
NBS Reference90-10-20/342
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Nominal Pipe Dia100 mm
Nominal Weight0.00 kg
Product Code235526
Production Year2017
Product Pagewww.harmerdrainage.co.uk/harmer-sml-light-weight-cast-iron-drainage-systems/3/c3.1
Quality AssuranceBS EN ISO 9001: 2000 Registered No. 12 100 21864, IZEG and GEG
Referenced Standardn/a
Replacement Costn/a
Safety Data Sheetwww.harmerdrainage.co.uk/downloader.aspx?type=COSHH&file=M002DR.pdf&info=Harmer SML
Shapen/a
Size100mm
Spare Partsn/a
Testing And CertificationBBA Certificate No. 05/4191, BS EN 877, ISO 6594, BS EN 681/ISO 4633, BS EN 14366: 2004, EN 13501-1, BS EN 1561
Type Comments100mm
Type NameDuctile Iron Couplings
URLwww.harmerdrainage.co.uk/
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@alumascwms.co.uk
Warranty Guarantor Partsinfo@alumascwms.co.uk
