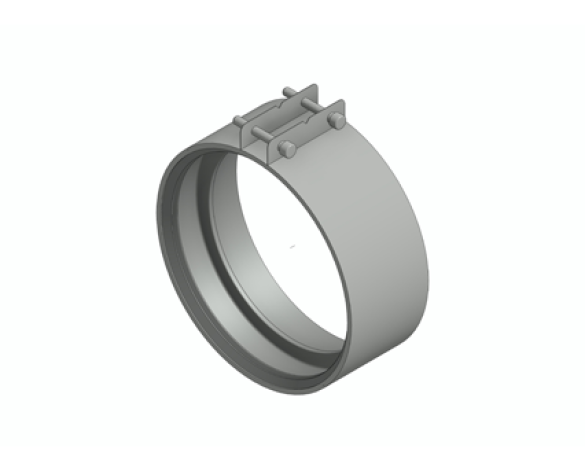

Duo Coupling

Object metadata

• _AuthorIan Holmes
• _Authorized ByKris Atkinson
• _Bim Spec Guid0
• _BS Bible Version14
• _Created Bywww.bimstore.co.uk
• _Current Revision2
• _Distributed Bywww.bimstore.co.uk
• Accessibility Performancen/a
• Additional Bolts0
• Assembly CodeD2030100
• Asset TypeFixed
• b55.000000000000 mm
• BIM Object NamePipeFitting_HarmerDrainage_SML_DuoCouplings
• Bolts2
• Classification NameUniclass2015
• Classification ValuePr_65_52_63_12
• Code Performancen/a
• Codes Of PracticeBS EN 12056-2, BS EN 12056-3, BS EN 752: 1996
• Coefficient Of Thermal Expansion0.0105 mm/m/K
• Colorn/a
• Connection Radius50.000000000000 mm
• Constituentsn/a
• Created Byinfo@alumascwms.co.uk
• Created On2017-06-01T09:00:00
• d125.000000000000 mm
• Declaration Of Confomitywww.harmerdrainage.co.uk/downloader.aspx?type=ce-mark&file=harmer-sml-ce-declaration-of-confomity.pdf&info=Harmer SML CE Declaration of Confomity

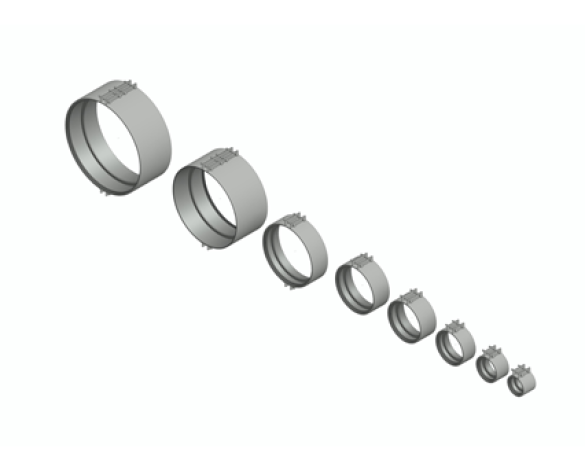

• DescriptionThe Harmer SML Duo coupling is an earth continuous, above-ground, twin-screw stainless steel coupling available for all Harmer SML pipes and fittings, for pipe connections from 50 to 300mm diameter. The Duo continuity coupling can be used (where required by current legislation) to provide earth continuous conductance through the soil stack. When direct contact of all metal components is required, electrical testing of each joint, as work progresses, is recommended
• Documentation Certificatesn/a
• Documentation Installation Guiden/a
• Documentation Literaturewww.harmerdrainage.co.uk/downloader.aspx?type=Brochure&file=sml_technical.pdf&info=Harmer SML Technical Submittal
• Documentation Maintenancen/a
• Documentation Technicalwww.harmerdrainage.co.uk/downloader.aspx?type=Brochure&file=sml_technical.pdf&info=Harmer SML Technical Submittal
• Drainage Design Calculatorwww.harmerdrainage.co.uk/calculators/
• Duration UnitYears
• Environmental Considerations100% recyclable material therefore all waste can be returned to the furnace to make new cast iron products.
• Expected Life0
• External Pipe Dia112.000000000000 mm
• Fastener Height17.500000000000 mm
• Featuresn/a
• FinishCast Iron
• Graden/a
• h140.000000000000 mm
• Has Additional FastenerNo
• Ifc Export AsIfcPipeFitting
• Ifc Export TypeIfcPipeFittingType
• KeynoteR11/140
• Loss Method0
• ManufacturerHarmer Drainage
• Manufacturer NameHarmer Drainage
• Manufacturers AddressALUMASC WATER MANAGEMENT SOLUTIONS, Station Road, Burton Latimer, Kettering, NN15 5JP, NN15 5JP
• Manufacturers Emailinfo@alumascwms.co.uk
• Manufacturers Telephone Number 44 (0)1536 383810
• MaterialCast Iron
• ModelDuo Coupling
• Model NumberDuo Coupling
• Model ReferenceDuo Coupling
• NBS DescriptionCast iron drainage pipe and fittings
• NBS Object NameHarmer Drainage - Cast iron drainage pipe and fittings
• NBS Office Master Tagn/a
• NBS Reference90-10-20/342
• Nominal Depth0.000000000000 mm
• Nominal Height0.000000000000 mm
• Nominal Length0.000000000000 mm
• Nominal Pipe Dia100.000000000000 mm
• Nominal Weight0.000000000000 kg
• Product Code3140/100
• Production Year2017
• Product Pagewww.harmerdrainage.co.uk/downloader.aspx?type=Brochure&file=HarmerSML.pdf&info=SML Socketless Cast Iron
• Quality AssuranceBS EN ISO 9001: 2000 Registered No. 12 100 21864, IZEG and GEG
• Referenced Standardn/a
• Replacement Costn/a
• Safety Data Sheetwww.harmerdrainage.co.uk/downloader.aspx?type=COSHH&file=M002DR.pdf&info=Harmer SML
• Seal Width53.000000000000 mm
• Shapen/a
• Shell Radius63.500000000000 mm
• Shell Radius 262.000000000000 mm
• Size100mm
• Spare Partsn/a
• Testing And CertificationBBA Certificate No. 05/4191, BS EN 877, ISO 6594, BS EN 681/ISO 4633, BS EN 14366: 2004, EN 13501-1, BS EN 1561
• Type Comments100mm
• Type NameDuo Coupling
• URLwww.harmerdrainage.co.uk/
• Warranty Descriptionn/a
• Warranty Duration Laborn/a
• Warranty Duration Partsn/a
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo@alumascwms.co.uk
• Warranty Guarantor Partsinfo@alumascwms.co.uk
