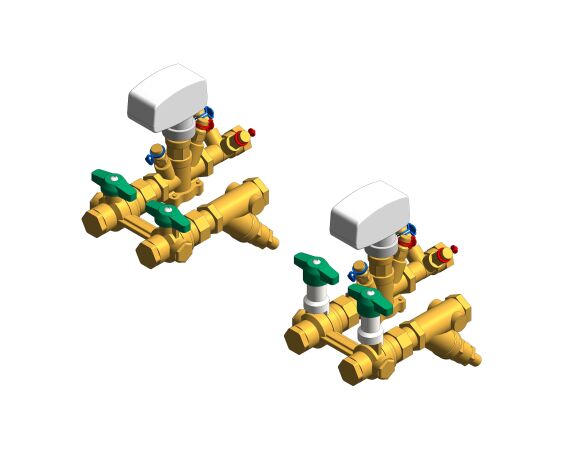

EP9801PF - Elite Prime Hook Up - PICV / StrainerDrain / FMD

Object metadata

• _AuthorIan Holmes
• _Authorized ByRyan Lashley
• _Bim Spec Guid0
• _BS Bible Version15
• _Created Bywww.bimstore.co.uk
• _Current Revision1
• _Distributed Bywww.bimstore.co.uk
• A222 mm
• Accessibility Performancen/a
• Annual MaintenancePICV & Strainer Drain
• Assembly CodeD2090800
• Asset TypeFixed
• B167 mm
• BIM Object NameHattersley_PipeAccessories_ElitePrimeHookUp_(PICV-StrainerDrain-FMD)_EP9801PF
• Body Length91 mm
• BrassBrass, Soft Yellow
• C163 mm
• CE Approvaln/a
• Classification NameUniclass2015
• Classification ValuePr_65_54_40_16
• CO33 mm
• Code Performancen/a
• Cold WaterPlastic, Blue Dark
• ColorBronze
• Constituentsn/a
• Created Byenquiries@hattersley.com
• Created On2019-03-11T09:00:00
• D299 Length76 mm
• D901 Length57 mm
• D995 Length74 mm
• DescriptionCompact design, with flow and return legs at equal lengths, for simple direct mounting onto terminal unit. Fitted with Elite Prim with a wide range of settable flows to suit all applications. Includes Venturi metering station for improved accuracy and pressure drop recovery. All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve. Bypass unit with integrated 3-way isolation valves. Flushing valves on flow and return - in accordance with BSRIA BG29.Integrated dial allowing for calibrated setting of the PICV with integrated test points allowing for ΔP verification.
• Dia15 mm
• Dia 215 mm
• Documentation Certificatesn/a
• Documentation Installation Guidewww.hattersley.com/category/hook-up
• Documentation Literaturen/a
• Documentation Maintenancewww.hattersley.com/product/picv/fig-1935
• Documentation Technicaln/a
• Duration UnitYears
• Expected Life0
• FeaturesCompact design, with flow and return legs at equal lengths, for simple direct mounting onto terminal unit. Fitted with Elite Prim with a wide range of settable flows to suit all applications. Includes Venturi metering station for improved accuracy and pressure drop recovery. All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve. Bypass unit with integrated 3-way isolation valves. Flushing valves on flow and return - in accordance with BSRIA BG29.Integrated dial allowing for calibrated setting of the PICV with integrated test points allowing for ΔP verification.
• FinishBronze to BSEN 1982 CC49IK
• Graden/a
• Gross Weightn/a
• Hot WaterPlastic, Red
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.MIXING
• KeynoteS12
• ManufacturerHattersley
• Manufacturer NameHattersley
• MaterialBronze to BSEN 1982 CC49IK
• ModelElite Prime Hook Up
• Model ReferencePICV, Strainer Drain & FMD
• NBS DescriptionControl valves
• NBS Object NameHattersley - Control valves
• NBS Office Master Tagn/a
• NBS Reference90-15-40/329
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• Operation And Maintenance Manualn/a
• Production Year2019
• Product Literaturen/a
• Product RangeElite Prime Hook Up
• Radius Calc12 mm
• Radius Calc 212 mm
• Referenced Standardn/a
• Reference Standardn/a
• Replacement Costn/a
• Shapen/a
• Shipping Weightn/a
• SizeDN15 x DN15
• Spare Partsn/a
• Type CommentsPICV, Strainer Drain & FMD
• Type NamePICV, Strainer Drain & FMD
• URLwww.hattersley.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsenquiries@hattersley.com
