ES-SET Q of brass for manifolds HKV2010 and HKV2013A

by Watts Water Technologies EMEA B.V.

Download Add to collection

Description

Brass body, with union and gaskets. Ball valve with handle for easy filling, rinsing and draining. 1”G. For HKV2010 and HKV 2013A.

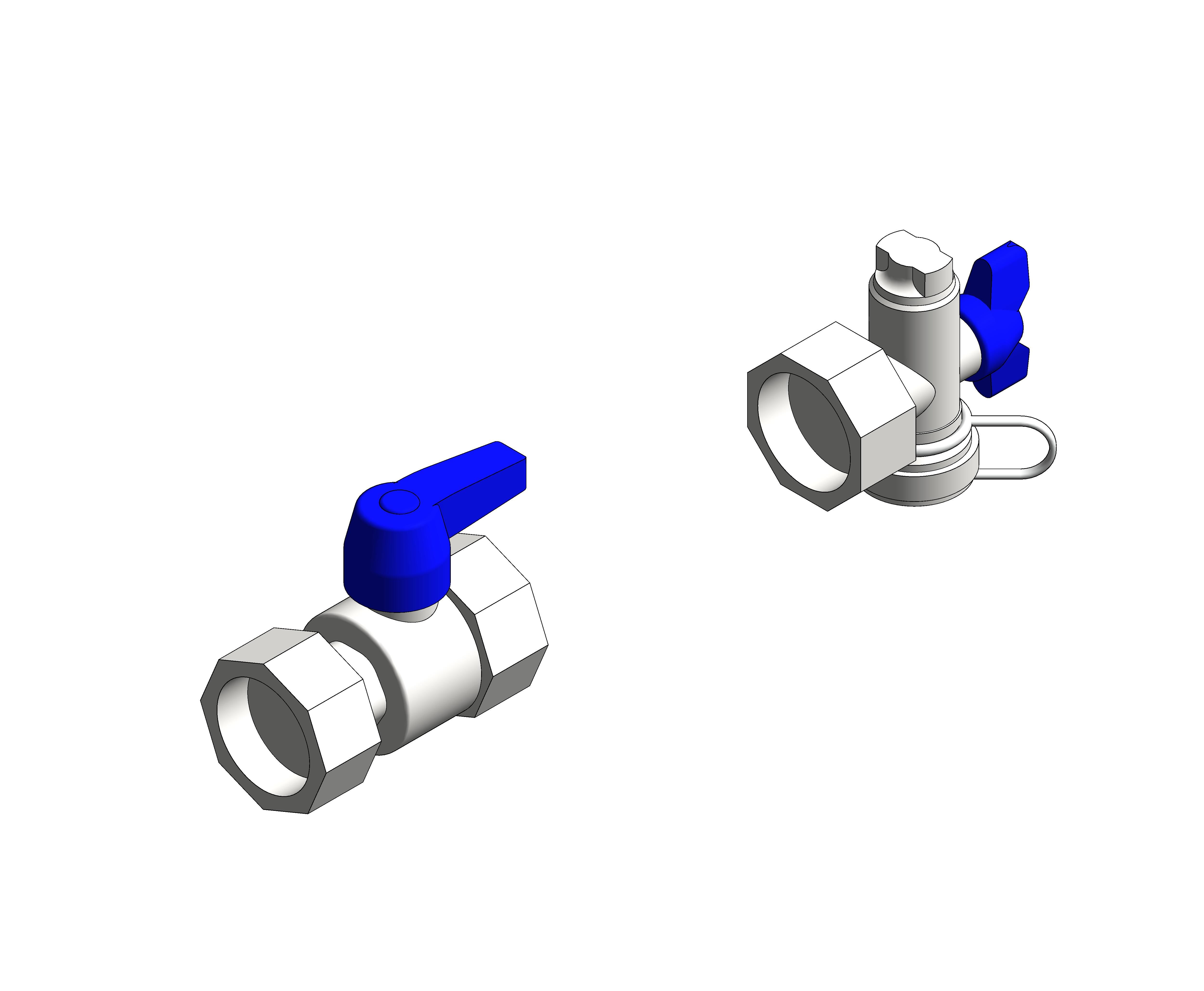

Includes the following products:

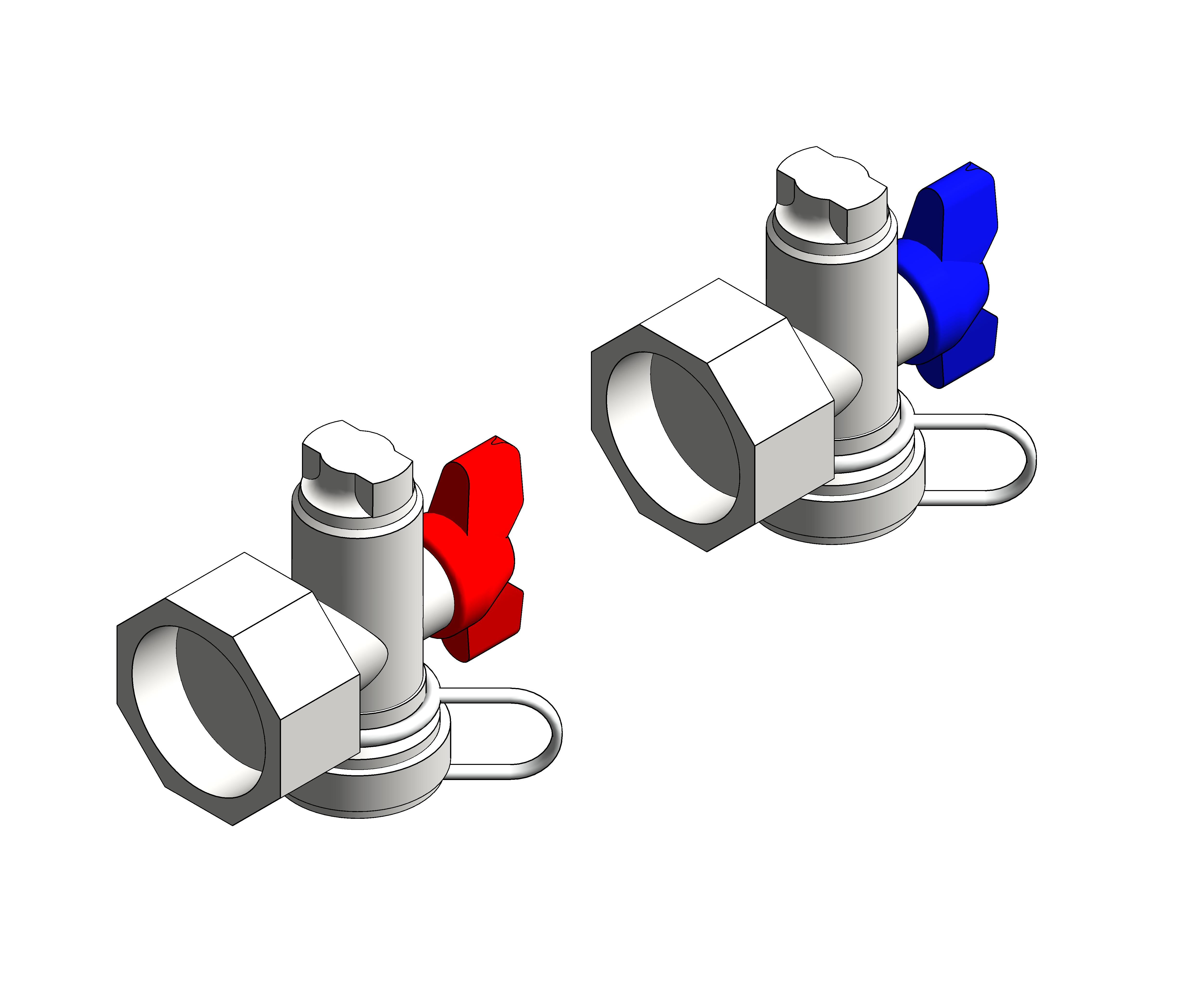

ES-SET Q 1" Ni - 10022835 - fill and drain cook brass body, with union and gaskets.

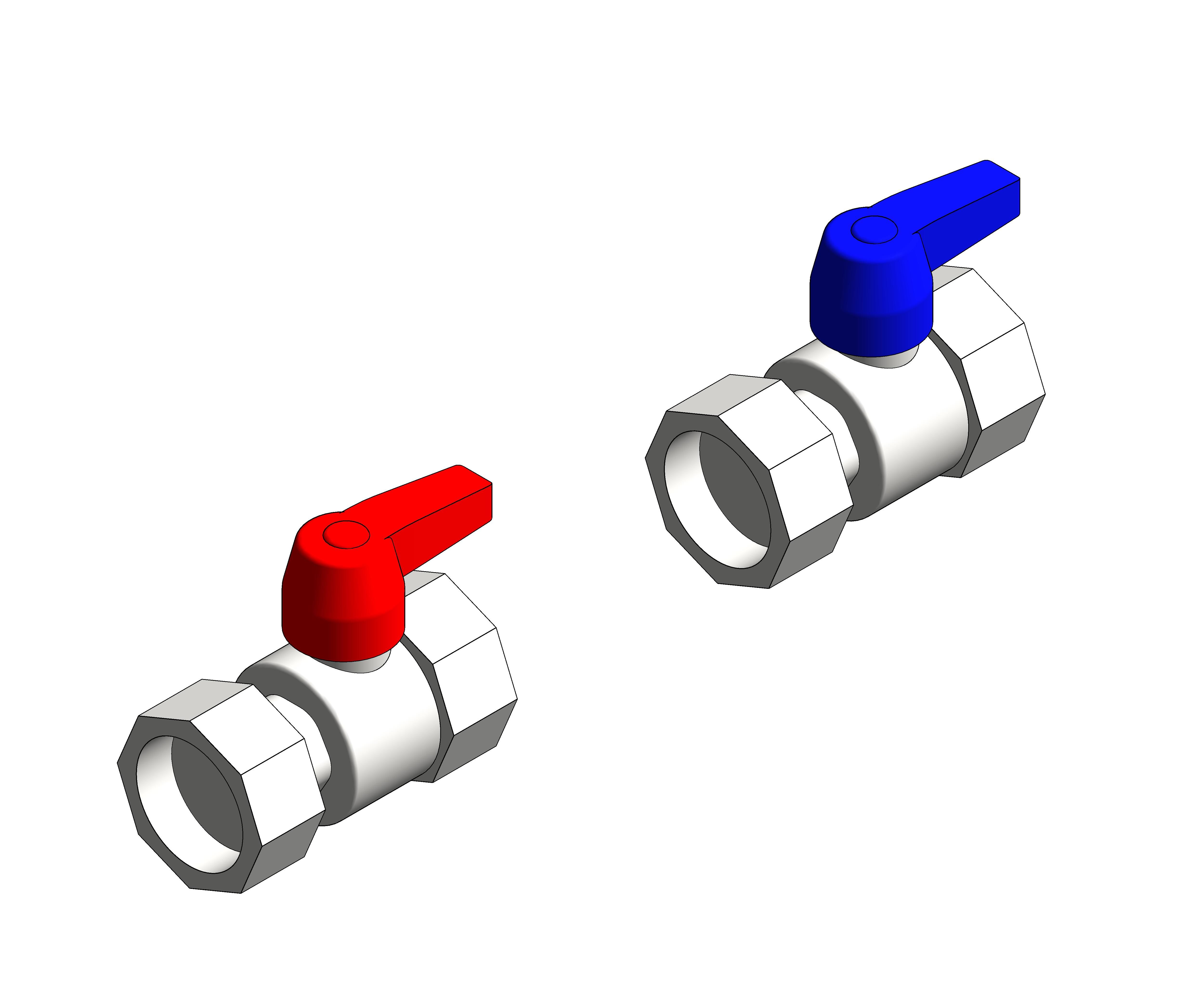

10022872 - ball valve set brass body nickel plated, with union nut and flat gaskets.

Object Data

1 Revision

Last Updated

24/02/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameWATTS_PipeAccessories_Valve_10022835_301020
Body ColourWATTS_Steel
Classification NameUniclass2015
Classification ValuePr_65_54_95_92
Code Performancen/a
ColorBrass nickel plated
Constituentsn/a
Created Bywide@wattswater.com
Created On2020-11-25T09:00:00
Descriptionfill and drain cook brass body, with union and gaskets. Ball valve with handle for easy filling, rinsing and draining. 1”G. For HKV2010 and HKV 2013A.
Documentation Certificateswww.bimstore.co/products/es-set-q-of-brass-for-manifolds-hkv2010-and-hkv2013a/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/es-set-q-of-brass-for-manifolds-hkv2010-and-hkv2013a/document/installation-guide
Documentation Literaturewww.bimstore.co/products/es-set-q-of-brass-for-manifolds-hkv2010-and-hkv2013a/document/product-literature
Documentation Maintenancewww.bimstore.co/products/es-set-q-of-brass-for-manifolds-hkv2010-and-hkv2013a/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/es-set-q-of-brass-for-manifolds-hkv2010-and-hkv2013a/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishPrime Paint
Graden/a
Handle ColourWATTS_PlasticHandle_Blue
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.MIXING
KeynoteS12
ManufacturerWATTS
Manufacturer NameWATTS
MaterialBrass MS58, Nickel plated
Maximum Flow Raten/a
Maximum Operating Pressure10 bar
Maximum Operation Temperature+90° C
Minimum Operation Temperature+2°C
ModelEnd piece set Quattro 1"
Model Number10022835_301020
Model ReferenceEnd piece set Quattro 1"

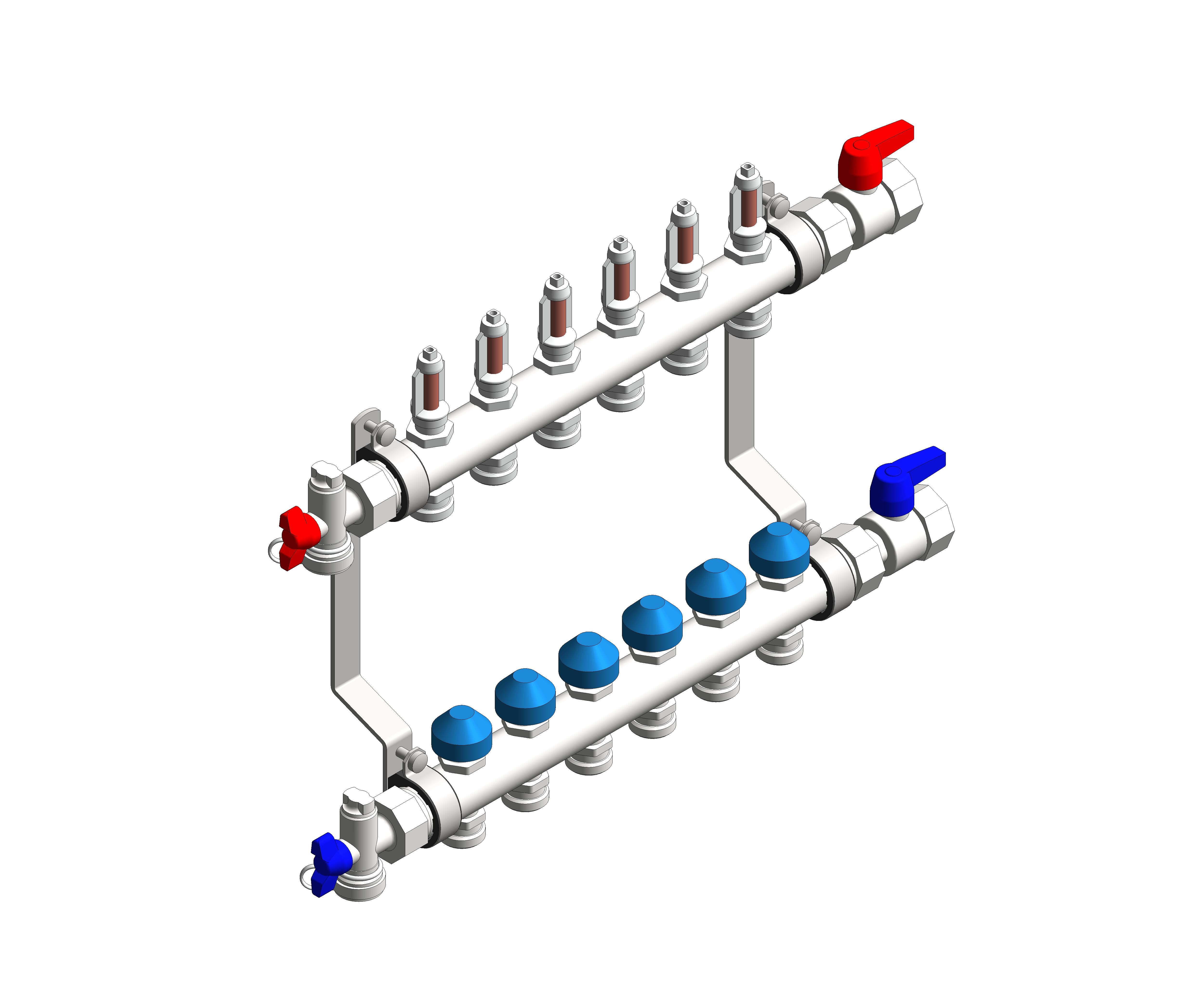

NBS DescriptionManifold for underfloor heating and cooling
NBS Object NameWATTS - Manifold for underfloor heating and cooling
NBS Office Master Tagn/a
NBS Reference90-10-60/390
Nominal Depth37 mm
Nominal Height67 mm
Nominal Length70 mm
Pipe Connection Size25 mm
Plastic ColourWATTS_Plastic_White
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Threaded ConnectionsFemale
Type Comments10022835_301020
Type NameEnd piece set Quattro 1"
URLwattswater.eu
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partswide@wattswater.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
