Euromixer Mixing Valve

Object metadata

• _authorized byKris Atkinson
• _BIMspec_GUID1
• _created byPeter Winterburn
• _current revision1
• _distributed bywww.bimstore.co.uk
• .Factory Set Temparature40 +/-3°C
• Accessibility Performancen/a
• Assembly CodeD2020300
• Asset TypeFixed
• Classification NameUniclass 2015
• Classification ValuePr_65_54_95_88
• Code Performancen/a
• ColorSilver
• Constituentsn/a
• Created Bytechnical@rwc.co.uk
• Created On2016
• DescriptionThe Reliance Water Controls brand specialises in pressure, temperature, flow control and washroom products and has a long history in supplying the sanitary plumbing market and hot water system manufacturers. With our heritage and expertise, Reliance Worldwide Corporation (UK) Ltd (RWC UK) played a key role in the development of thermostatic technology and unvented hot water systems in the UK. Today we remain at the forefront of the industry delivering new innovations each year to drive water efficiency and improve water safety in both domestic and commercial applications.
• Distance Between Connections215 mm

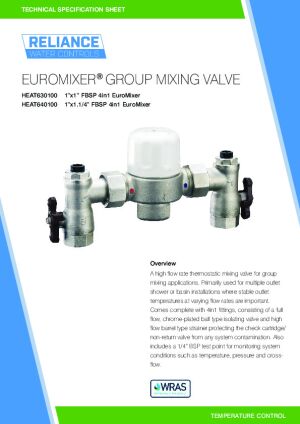

• Documentation Certificatesspecifi.bimstore.co.uk/document/share/1742
• Documentation Installation Guidespecifi.bimstore.co.uk/document/share/1742
• Documentation Literaturespecifi.bimstore.co.uk/document/share/1742
• Documentation Maintenancespecifi.bimstore.co.uk/document/share/1742
• Documentation Technicalspecifi.bimstore.co.uk/document/share/1742
• Duration UnitYears
• Expected Life1
• Factory Temperature Setting44°C
• FeaturesEuromixer® group mixing valves incorporate an adjustable and lockable temperature control to provide complete flexibility to the installer. 4 in 1 service fittings provide isolation, filtration, cross-flow prevention and a gauge port for testing in a single compact units.
• FinishChrome plated
• Graden/a
• Inlet_Diameter25 mm
• Inlet_Radius13 mm
• KeynoteS12
• ManufacturerReliance Worldwide Corporation
• Manufacturer AddressReliance Worldwide Corporation (UK) Ltd, Worcester Road, Evesham, Worcestershire, WR11 4RA, UK
• Manufacturer Fax+44 (0) 1386 712401
• Manufacturer Tel+44 (0) 1386 712400
• MaterialDRZ Brass
• Maximum Supply Pressure10.0 bar
• Minimum Flow Rate15 LPM
• Minimum Supply Pressure0.5 bar
• Minimum Temperature Differential15 °C
• ModelEuromixer Group Mixing Valve - HEAT630100
• NBS DescriptionThermostatic mixing valves
• NBS Object Name90-10-90/370 Thermostatic mixing valves;
• NBS Reference90-10-90/370
• Nominal Depth77 mm
• Nominal Height150 mm
• Nominal Width288 mm
• Outlet_Diameter25 mm
• Outlet_Radius13 mm
• Outlet Temperature Range38-60°C
• Pipework MaterialRWC aluminium
• Production Year2016
• Referenced StandardWRAS Approved
• Replacement Costn/a
• ShapeMulti-port
• Size215 x 77 x 150mm
• Spare Partsn/a
• Temperature Cold Supply5-25°C
• Temperature Hot Supply55-85°C
• Temperature Stability± 3°C
• Type NameEuromixer Group Mixing Valve - HEAT630100
• URLwww.rwc.co.uk
• Warranty Descriptionn/a
• Warranty Duration Laborn/a
• Warranty Duration Partsn/a
• Warranty Duration UnitYears
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsn/a
