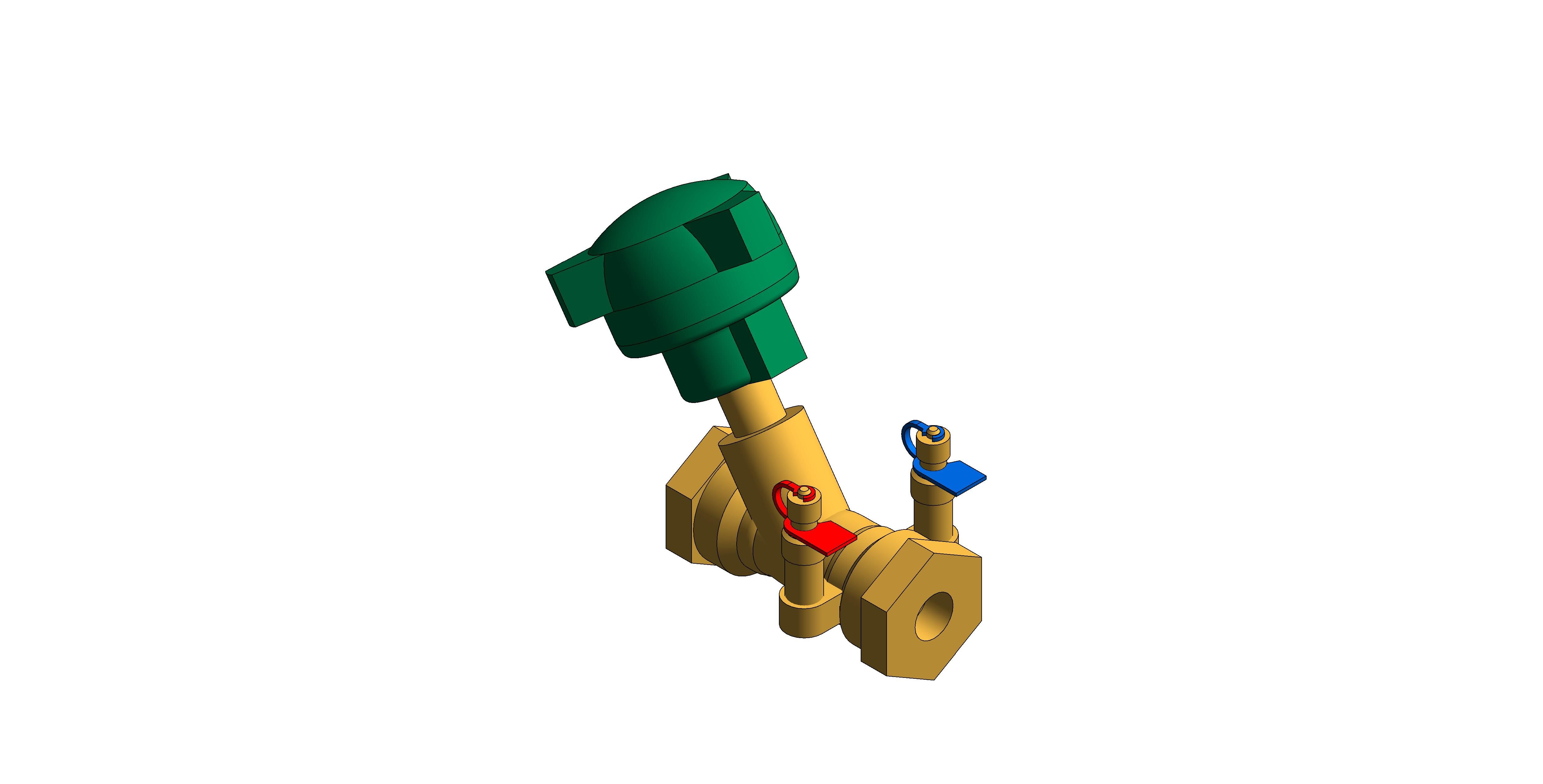

Fig 1732M.PF - Press Fit Fixed Orifice Double Regulating Valve

27.6k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

06/04/2018

Download BIM

Add to collection

Available for:

The bronze commissioning range offers accuracy of +/-5% on all settings. The integral fixed orifice design offers greater accuracy, makes set-up easier and involves fewer connections resulting in lower installation costs.

Features & Benefits:

Provides precise and accurate flow regulation
Easy to operate with handwheel and numerical indicator
Integral orifice and test points - no need for separate DRV and metering station
WRAS Approved for use with potable water to 85°C
Positive flow control at all handwheel settings
Material Specification - Handwheel Plastic - Stem DZR copper alloy 12165 CW602N Stem Seals EPDM - Disc DZR copper alloy 12165 CW602N Disc Seal (1-2") PTFE - B

_Angled Piece Origin 179 mm
_authorMT
_BIMspec_GUID0
_Body Radius 224 mm
_Body Sec Rad21 mm
_Bonnet Disc Radius24 mm
_Bonnet Height80 mm
_Bonnet Radius24 mm
_Connection Size Radius21 mm
_current revision1
_distributed bywww.bimstore.co.uk
_Gland Nut Diameter49 mm
_Gland Nut Thickness14 mm
_Gland Radius13 mm
_Stem Radius10 mm
_Test Valve Fixing Depth10 mm
_Test Valve Fixing Width15 mm
_Test Valve Offset 138 mm
_Test Valve Offset 230 mm
A mm125 mm
Assembly CodeD30
B mm148 mm
Balancing ConeDZR Brass BS EN 12165 CW602N
BodyBronze BS EN 1982 CC491K
BonnetBronze BS EN 1982 CC491K
BSYes
C mm61 mm
Connection Size42 mm
Connector O RingCIIR Butyl Rubber WRAS Approved
D mm42 mm
DescriptionFixed Orifice Double regulating valve complete with Press-Fit connectors. Provides precise and accurate flow regulation & measurement.
DiscDZR Brass BS EN 12165 CW602N
Disc FacingsPTFE WRAS Approved

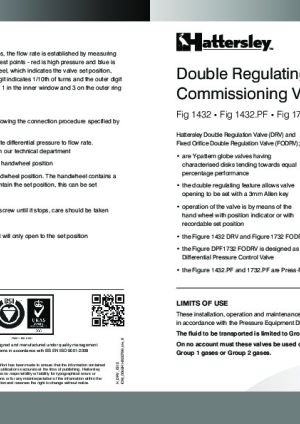

DocumentationLink URLwww.hattersley.com/documents/Fig_1732PF_FODRV_Press-Fit_Hattersley_0813_v3.pdf
Drive SleeveBrass BS EN 12164 CW617N
Drive Sleeve Retaining ClipCarbon Spring Steel DIN7993 SIZE 018
E mm193 mm
Expected Life0
F mm134 mm
Fig 631 Press Test ValveDZR Brass BS EN 12164 CW602N
HandwheelPlastic
Handwheel Retaining ScrewBrass BS EN 12164 CW617N
ID PlatePolycarbonate
ID Plate MaterialAluminum (Yellow)
Joint O RingEPDM Rubber Wras Approved
K Coefficient1.06
KeynoteS
Loss MethodK Coefficient
ManufacturerHattersley Ltd
Memory Stop ScrewHT Steel
Model1732M PF Medium Flow
Model Number1732M PF Medium Flow
O_Ring SealsEPDM Rubber Wras Approved
Orifice InsertDZR Brass BS EN 12164 CW602N
Press-Fit ConnectorBronze BS EN 1982 CC499K
Pressure (BAR)www.hattersley.com/documents/Fig_1732PF_FODRV_Press-Fit_Hattersley_0813_v3.pdf
Pressure Rating (Cat)PN16
Product DescriptionBronze Fixed Orifice Double Regulating Valve - Medium Flow
Product Documentation Linkwww.hattersley.com/documents/Fig_1732PF_FODRV_Press-Fit_Hattersley_0813_v3.pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=174&catID=34
Specification NotesBronze (BS EN 1982 CC491K) Y Pattern Globe Type Fixed Orifice Double Regulating Valve incorporating integral orifice with corner tappings terminating in Hattersley Fig. 631 test points. Double regulating feature set by Allen Key and valve operation by Microset handwheel. Disk with PTFE insert on sizes 1" and above. The entire unit provides a measurement accuracy of ± 5%. Conforms to BS7350 for flow measurement and regulation. Complete with Geberit Mapress bronze Press-Fit adaptors. Rated PN16 (Maximum temperature 12°C).
StemDZR Brass BS EN 12165 CW602N
Stem Length114 mm
Tag MaterialPlastic, Blue Dark
Temperature deg C-10 to 120°C
Type Comments1/2" x 18
Type Name1/2" x 18
Uniclass 2WR-90-94-95
URLwww.hattersley.com/
Valve MaterialBronze, Cast
Warranty Duration12 months
Warranty Duration Unit12 months
Weight (kg)0.72
