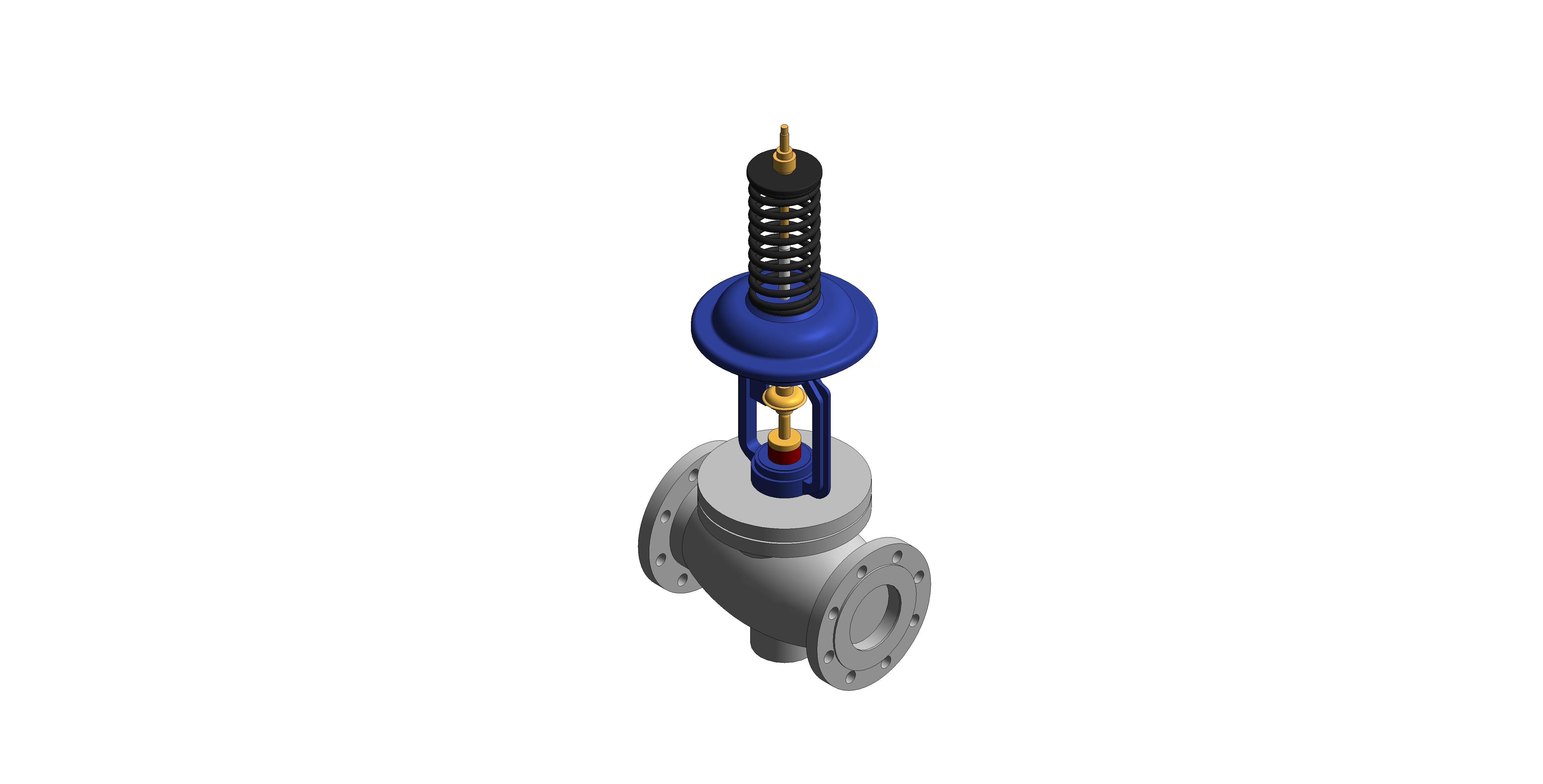

Fig. 405F - Differential Pressure Control Valves

by Hattersley

Download Add to collection

Description

Differential Pressure Control Valves

Fig. 405F

Features & Benefits

A high performing differential pressure control valve that can be fitted in the supply or return pipework, regulating both differential pressure and flow rate
Differential pressure activation range (DP Range) from 15 to 150 kPa
Integrated valve position indicator for visual inspection
Tested in accordance with the BSRIA guidance standard

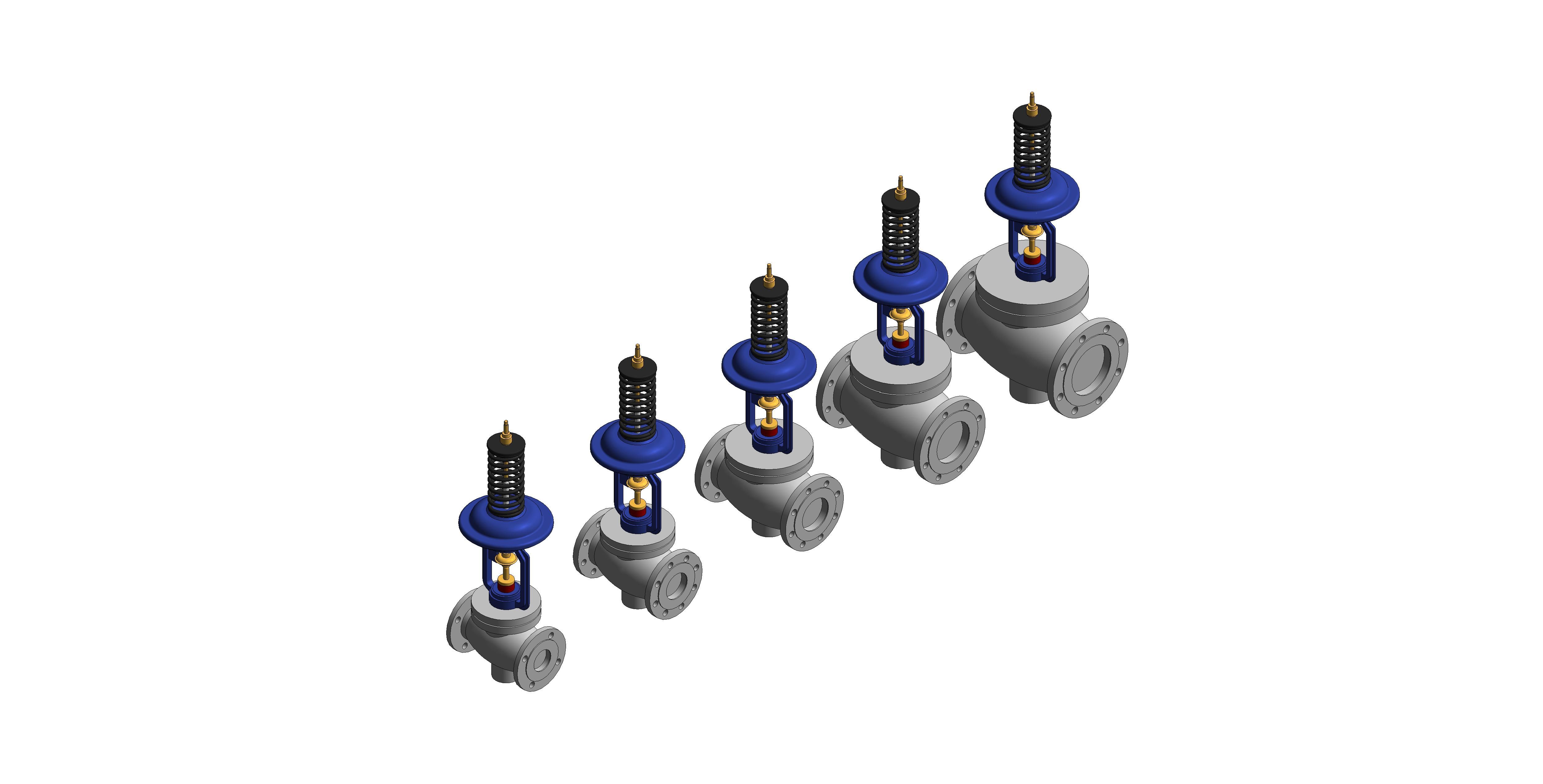

Size	DN65 to DN150
Pressure	PN16
Temperature Rating	-10 to 120°C
End Connections	BS EN1092-2 PN16

Object Data

1 Revision

Last Updated

28/06/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

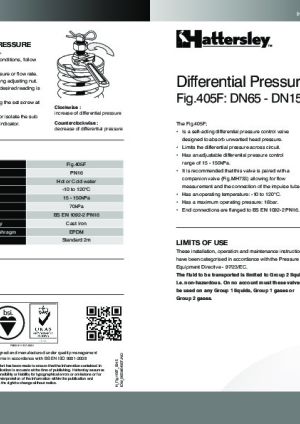

Installation Guide

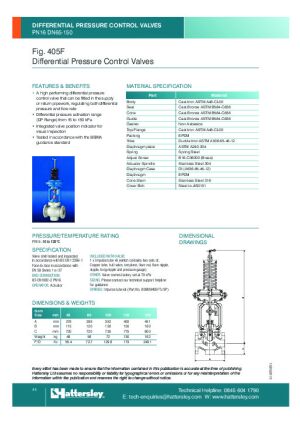

Technical Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
a93.00 mm
Accessibility Performancen/a
Actuator SpindleStainless Steel 316
Adjust ScrewB16 C36000 (Brass)
a Rad78.00 mm
Assembly CodeD20
Asset TypeFixed
b97.00 mm
BIM Object NameHattersley_DifferentialPressureControlValve_Fig405F
BodyCast Iron ASTM A48-CL30
c48.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_25
Code Performancen/a
Colorn/a
ConeCast Bronze ASTM B584-C836
Cone StemStainless Steel 316
Connection Size100.00 mm
Connection Size Radius50.00 mm
Constituentsn/a
Cover BoltSteel to JIS 3101
c Rad119.00 mm
Created Byenquiries@hattersley.com
Created On2022-03-01 T:09:00:00
d19.00 mm
D1220.00 mm
D2100.00 mm
DescriptionTo meet the growing use of variable speed pumps for HVAC applications, Crane Fluid Systems has launched a range of Differential Pressure Control Valves (DPCV) specifically aimed at optimising system performance. Extremely efficient, the DPCV is set to a maximum differential pressure which ensures flow cannot exceed a desired rate. It therefore helps reduce energy consumption, the risk of noise and simplifies the commissioning process. Features and benefits: - A high performing differential pressure control valve that can be fitted in the supply or return pipework, regulating both differential pressure and flow rate. - Differential pressure activation range (DP Range) from 15 to 150 kPa - Integrated valve position indicator for visual inspection - Tested in accordance with the BSRIA guidance standard
DiaphragmEPDM
Diaphragm CaseDI (A536-65-45-12
Diaphragm Case NutSAE4140 / A322-4140
Diaphragm PlateASTM A240-304
Documentation Certificateswww.bimstore.co/products/fig-405f-differential-pressure-control-valves/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fig-405f-differential-pressure-control-valves/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fig-405f-differential-pressure-control-valves/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fig-405f-differential-pressure-control-valves/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fig-405f-differential-pressure-control-valves/document/technical-data-sheet
Duration UnitYear
e32.00 mm
End ConnectionBS EN1092-2 PN16
Expected Life0
Features- A high performing differential pressure control valve that can be fitted in the supply or return pipework, regulating both differential pressure and flow rate. - Differential pressure activation range (DP Range) from 15 to 150 kPa - Integrated valve position indicator for visual inspection - Tested in accordance with the BSRIA guidance standard
Finishn/a
GasketNon Asbestos
Graden/a
GuideCast Bronze ASTM B584-C836
H1130.00 mm
H2735.00 mm
Hand PinStainless Steel 304
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Included With Valve1 x Impulse tube kit (which contains two sets of; Copper tube, ball valve, tee piece, flare nut, flare nipple, nipple, long nipple and pressure gauge).
IndicatorA276-303
K Coefficient0
KeynoteS
L1352.00 mm
L224.00 mm
Lift PlateAluminium
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig.405F
Model NumberFig.405F
Model ReferenceFig.405F - Differential Pressure Control Valve (DPCV) - Cast Iron
NBS DescriptionDifferential pressure control valves
NBS Noten/a
NBS Object NameHattersley - Differential pressure control valves
NBS Office Master Tagn/a
NBS Reference90-10-90/425
Nominal Depth220.00 mm
Nominal Height865.00 mm
Nominal Length352.00 mm
Number Of Bolts8
OperatorActuator
OtherValve comes factory set at 70 kPa
P180.00 mm
P290.00 mm
PackingEPDM
Pressure RatingPN16
Production Year2022
Rad 1320.00 mm
Raised Face Diameter158.00 mm
Referenced Standardn/a
Replacement Costn/a
SeatCast Bronze ASTM B584-C836
Shapen/a
SizeDN100
SizingPlease contact our technical support helpline for guidance
Spare PartsImpulse tube kit (Part No. 0JG91983D)
SparesImpulse tube kit (Part No. 0JG91983D)
Specification Notes- Valve shell tested and inspected in accordance with BS EN 12266-1 - Face-to-face in accordance with EN 58 Series 1 or 37
SpringSpring Steel
Temperature Rating-10 to 120°C
Top FlangeCast Iron ASTM A48-CL30
Top Spring SeatSteel to JIS 3101
Type CommentsFig.405F - Differential Pressure Control Valve (DPCV) - Cast Iron
Type NameFig.405F - Differential Pressure Control Valve (DPCV) - Cast Iron
URLenquiries@hattersley.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
Weight72.00 kg
YokeDI ASTM A536-65-45-12

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
