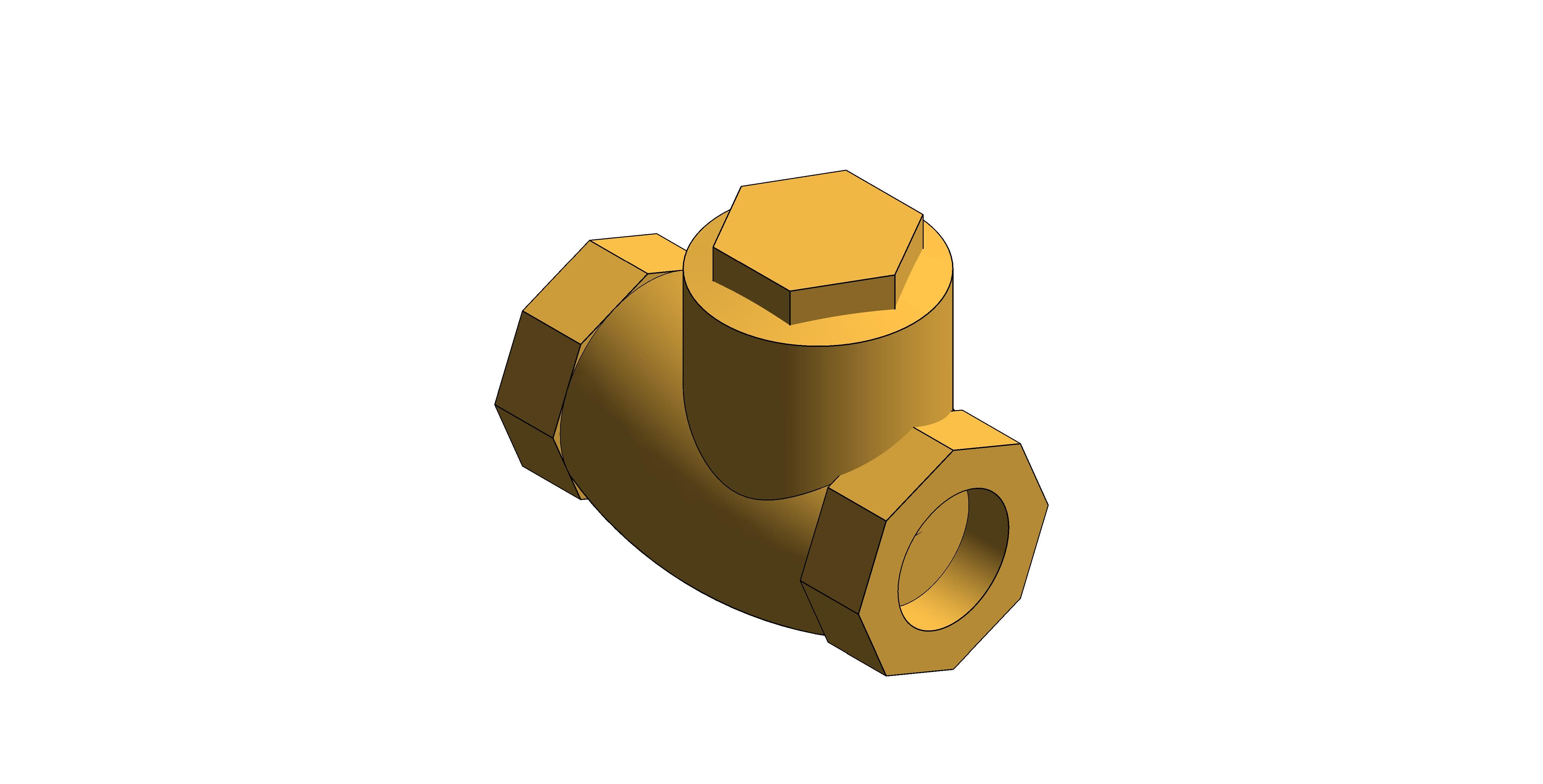

Fig. 44 - Check Valve - Swing Pattern - Bronze

by Hattersley

Download Add to collection

Description

Check Valve - Swing Pattern - Bronze

Fig. 44

Features & Benefits

Horizontal swing pattern.
Robust and high quality bronze body.
Metal to metal seat.
Check valves permit flow in one direction only and close automatically if flow reverses.

Size	1/2" to 2"
Pressure	PN20
Temperature Rating	-10 to 180°C
Product Material	Bronze
End Connections	Taper threaded to BS EN 10226 ISO 7-1 (BS 21) Fig. 44.AT is ANSI threaded to B1.20.1 (Taper)

Object Data

1 Revision

Last Updated

28/06/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

Technical Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
A98.00 mm
a56.40 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b15.30 mm
B65.00 mm
BIM Object NameHattersley_SwingCheckValve_Fig44
BodyBronze BS EN 1982 CC491K 2
c33.40 mm
CapBronze BS EN 1982 CC491K
Classification NameUniclass 2015
Classification ValuePr_65_54_95_14
Code Performancen/a
Colorn/a
Connection Size40.00 mm
Connection Size Radius20.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2022-03-01 T:09:00:00
d13.10 mm
DescriptionPN20 Bronze Swing Check Valve with Metal Disc. Check valves permit flow in one direction only and close automatically if flow reverses. Horizontal swing pattern. Robust and high quality bronze body.
DiscBronze BS EN 1982 CC491K
Documentation Certificateswww.bimstore.co/products/fig-44-check-valve-swing-pattern-bronze/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fig-44-check-valve-swing-pattern-bronze/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fig-44-check-valve-swing-pattern-bronze/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fig-44-check-valve-swing-pattern-bronze/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fig-44-check-valve-swing-pattern-bronze/document/technical-data-sheet
Drive PinSteel - Electro Brassed
Duration UnitYear
e27.50 mm
End Connection(UK)Taper threaded to BS EN 10226-2 (ISO 7-1) formerly BS 21
End Connection(US)ANSI B1.20.1
Expected Life0
f29.35 mm
Featuresn/a
Finishn/a
Graden/a
Hex 155.00 mm
Hex 242.00 mm
Hex 2 Height8.60 mm
HingeBronze BS EN 1982 CC491K
Hinge NutBrass BS EN 12164 CW614N
Hinge PinStainless Steel SS316
ID PlateAluminium
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K Coefficient0
KeynoteS
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 44
Model NumberFig. 44
Model ReferenceFig. 44 - Swing Check Valve with Metal Disc - Bronze
NBS DescriptionCopper alloy check valves
NBS Noten/a
NBS Object NameHattersley - Copper alloy check valves
NBS Office Master Tagn/a
NBS Reference90-10-90/352
Nominal Depth67.00 mm
Nominal Height98.00 mm
Nominal Length98.00 mm
Pressure RatingPN20
Production Year2022
Rad 199.60 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN40
Spare Partsn/a
Specification NotesBronze Check Valve, Metal seated, with body and cap to BSEN1982 CC491K, SS 316 hinge pin, PN20 rating in accordance with BS5154. This valve falls under SEP category and suitable for use on Group 1 & 2 Liquids and Group 2 Gas, as defined by the Pressure Equipment Directive 2014/68/EU.
Temperature Operating Range-10 to 180 °C
Type CommentsFig. 44 - Swing Check Valve with Metal Disc - Bronze
Type NameFig. 44 - Swing Check Valve with Metal Disc - Bronze
URLenquiries@hattersley.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
Weight1.15 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
