Fig. 811 - Strainers - Ductile Iron Y-Type - Ductile Iron

by Hattersley

Download Add to collection

Description

Strainers - Ductile Iron Y-Type - Ductile Iron

Fig. 811

Features & Benefits

High strength ductile iron construction.
Streamlined flow contours minimize pressure drop.
Asbestos-free non-stick gasket.

Pressure Rating	PN25
Product Material	Ductile Iron
Operating Pressure	25 bar from -10 to 120ºC PN25 21.5 bar at 220ºC Note: 911 restricted to 180ºC
Test Pressure	Shell: 37.5 bar

Object Data

1 Revision

Last Updated

30/06/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

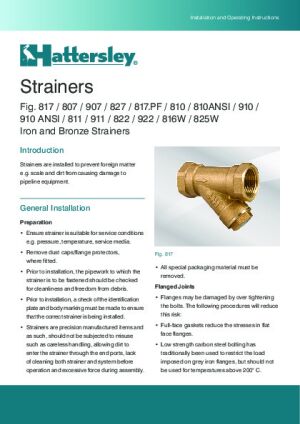

Installation Guide

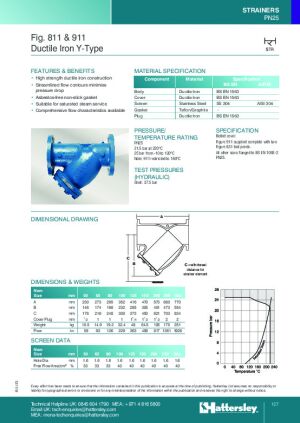

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
A235 mm
Accessibility Performancen/a
Angled Piece Origin 1110 mm
Angled Piece Origin 2130 mm
Assembly CodeD20
Asset TypeFixed
B19 mm
BIM Object NameHattersley_Strainer_Fig811
BodyDuctile Iron BS EN 1563 EN-GJS-500-7
Body Plate Length158 mm
Body Plate Offset74 mm
Body Plate Thickness5 mm
Body Sec Rad78 mm
Bolt Holes8
C156 mm
CapDuctile Iron BS EN 1563 EN-GJS-500-7
Classification NameUniclass 2015
Classification ValuePr_65_55_86_99
Code Performancen/a
Colorn/a
Connection Size100 mm
Connection Size Radius50 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2022-03-08 T:09:00:00
D3 mm
DescriptionScale and dirt in piping systems causes endless trouble and frequent serious damage to pipeline equipment. Installation of Crane strainers will help eliminate the problems caused by foreign matter with piping systems. The FM278 offers the integrity of manufacture, quality and reliability which are the hallmarks of Crane products. Cap tapped and plugged for drain (drain valve sold separately).
Documentation Certificateswww.bimstore.co/products/fig-811-strainers-ductile-iron-y-type-ductile-iron/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fig-811-strainers-ductile-iron-y-type-ductile-iron/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fig-811-strainers-ductile-iron-y-type-ductile-iron/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fig-811-strainers-ductile-iron-y-type-ductile-iron/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fig-811-strainers-ductile-iron-y-type-ductile-iron/document/technical-data-sheet
Drain Angle78 mm
Drain Flange Radius179 mm
Drain Plug Rad18 mm
Drain Sec Diameter156 mm
Drain Sec Length205 mm
Drain Sec Radius78 mm
Duration UnitYear
E352 mm
End ConnectionFlanged to BS EN 1092-2 PN25
Expected Life0
F245 mm
Featuresn/a
Finishn/a
Flange Hole Centres180 mm
Flange Hole Diameter19 mm
G350 mm
GasketAsbestos Free (WRAS)
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcFilterTypeEnum.STRAINER
K90 mm
K Coefficient232
KeynoteS
Length314 mm
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig.811
Model NumberFig.811
Model ReferenceFig.811 - Strainer - Ductile Iron
NBS DescriptionY-type strainers
NBS Noten/a
NBS Object NameHattersley - Y-type strainers
NBS Office Master Tagn/a
NBS Reference90-20-80/320
Nominal Depth235 mm
Nominal Height363 mm
Nominal Length352 mm
NutSteel BS 3692 Grade 8
PlugMalleable Iron
Pressure RatingPN25
Production Year2022
Referenced Standardn/a
Replacement Costn/a
ScreenStainless Steel ASTM A182 F304
Shapen/a
Size100mm
Spare Partsn/a
Specification NotesFlanges conform to BS EN 1092-2 PN25 Section 3.2 table 11 with raised face. Strainers are supplied with a stainless steel perforated strainer element having 1.6mm diameter holes.This product is suitable for use on Group 2 liquids only, as defined by the Pressure Equipment Directive 2014/68/EU.
StudSteel BS 4439 Grade 8.8
Temperature Operating Range-10 to 120°C
Test Point Offset88 mm
Type CommentsFig.811 - Strainer - Ductile Iron
Type NameFig.811 - Strainer - Ductile Iron
URLenquiries@hattersley.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
