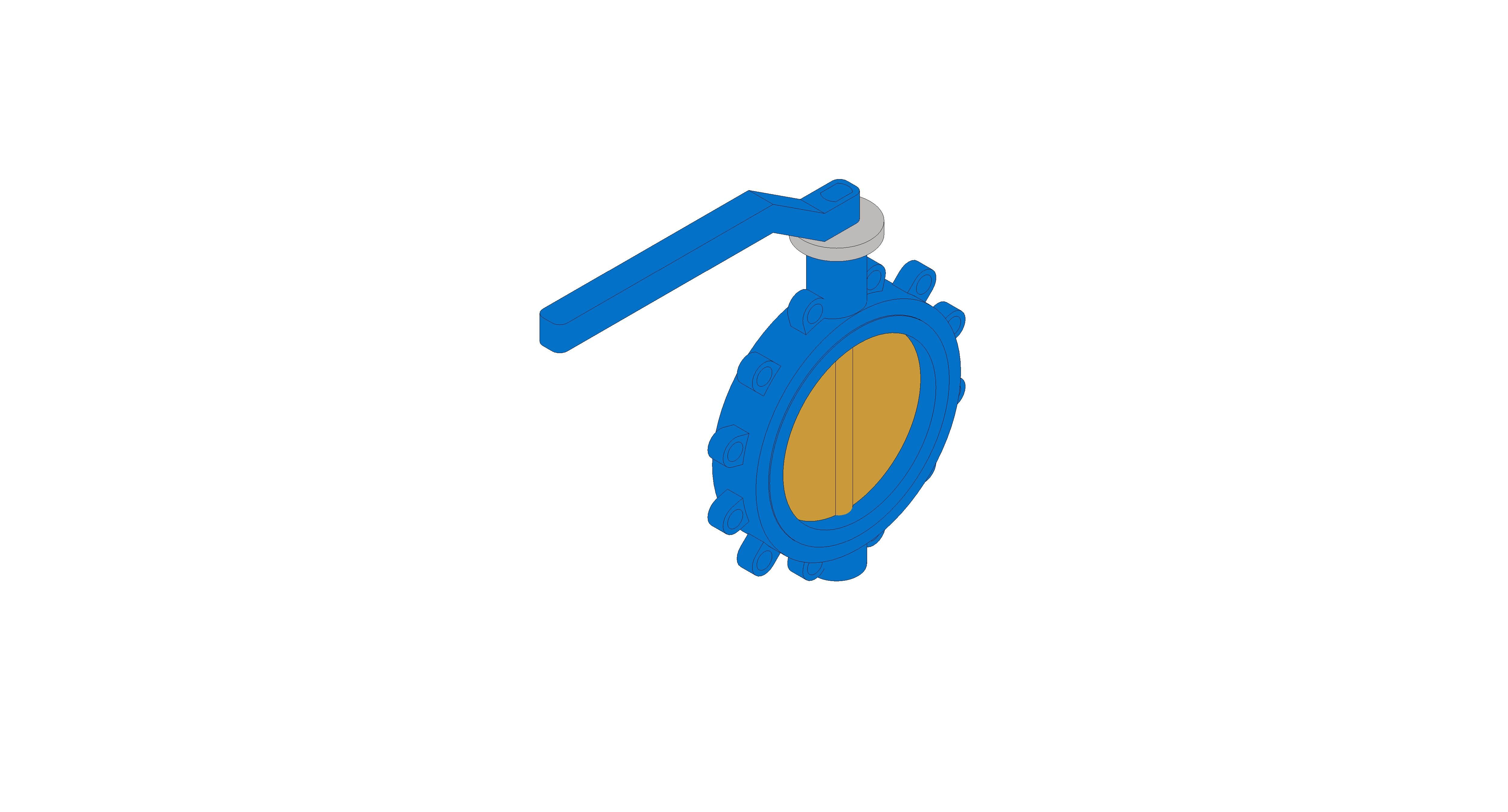

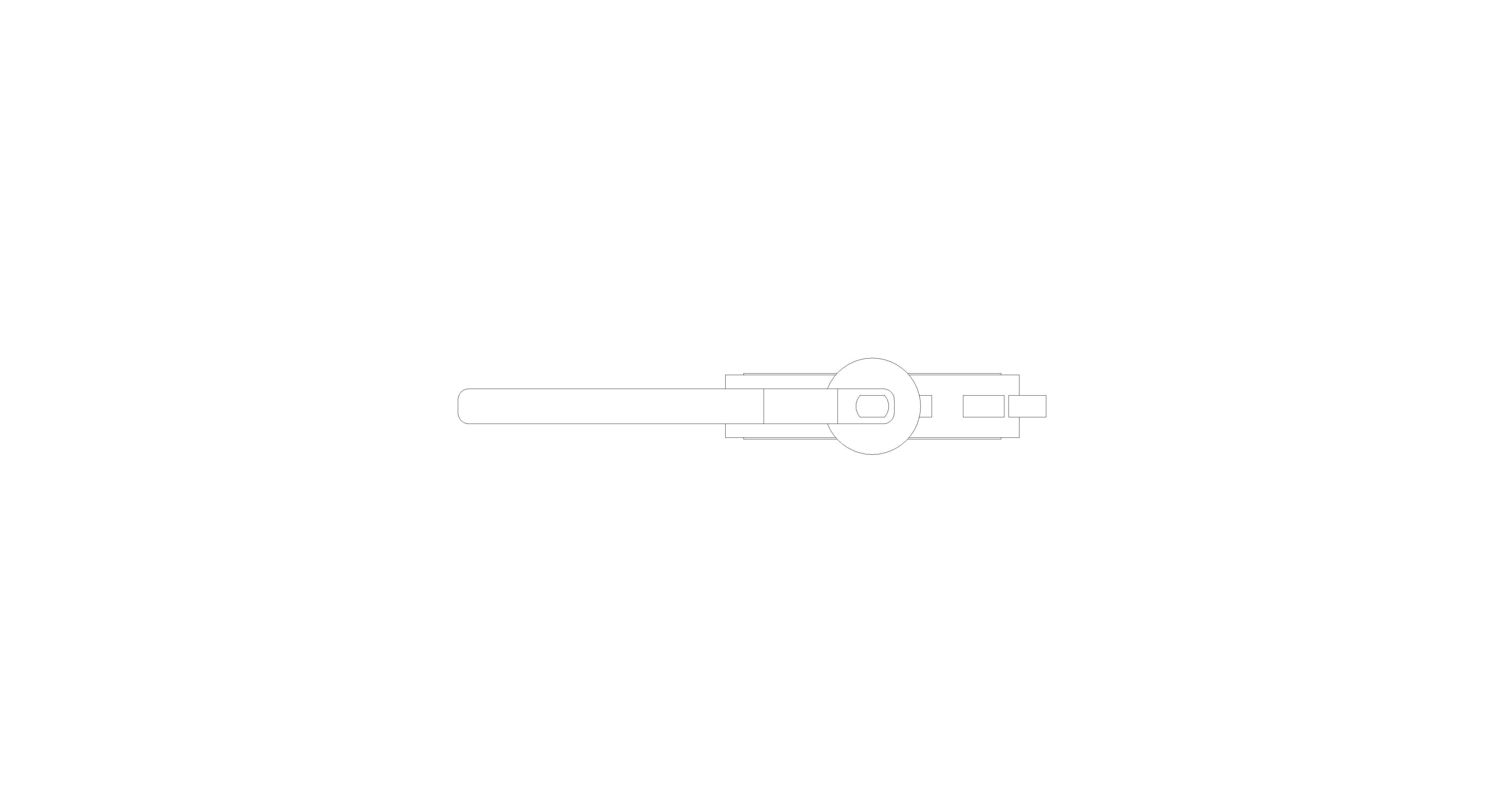

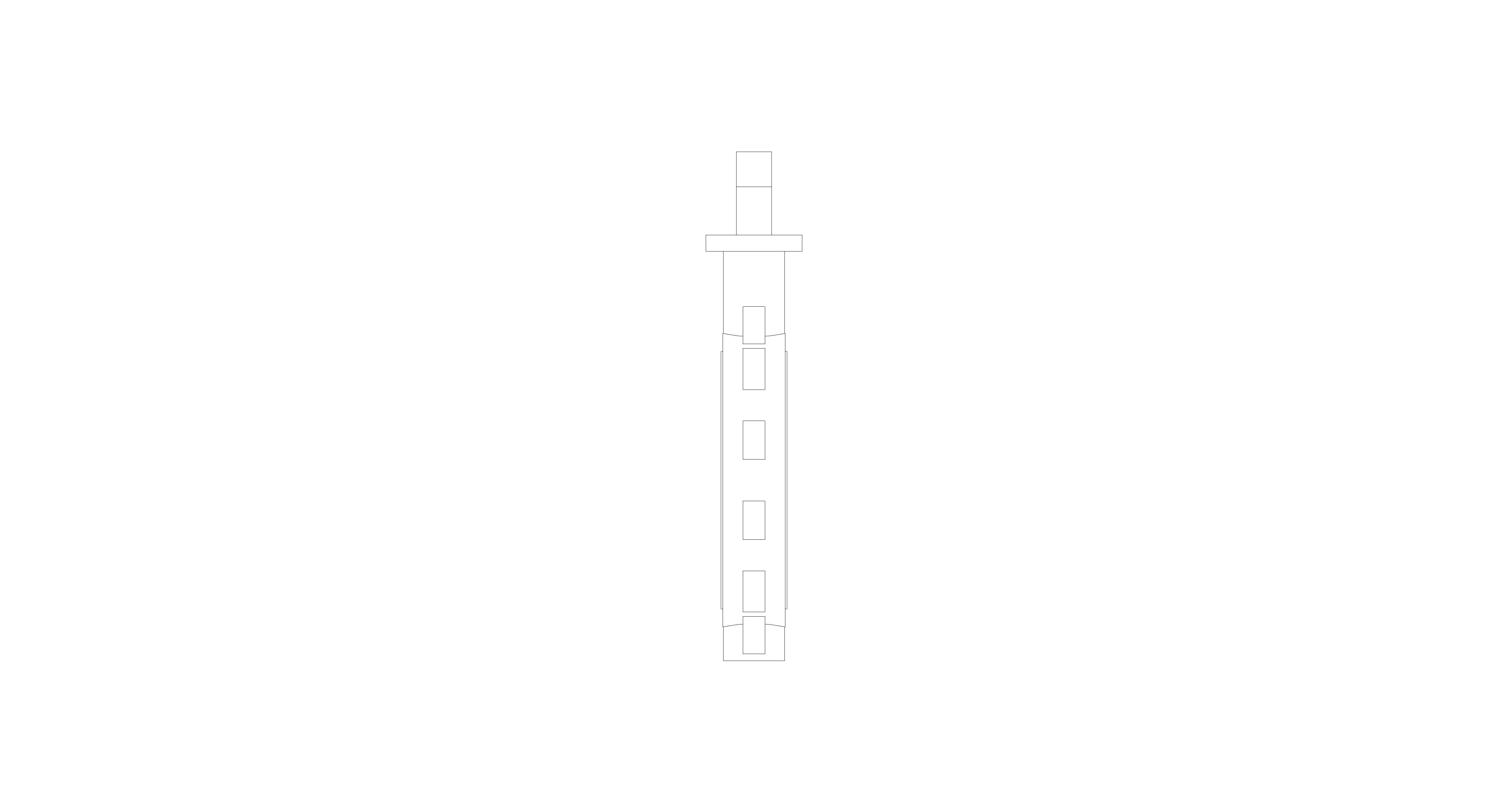

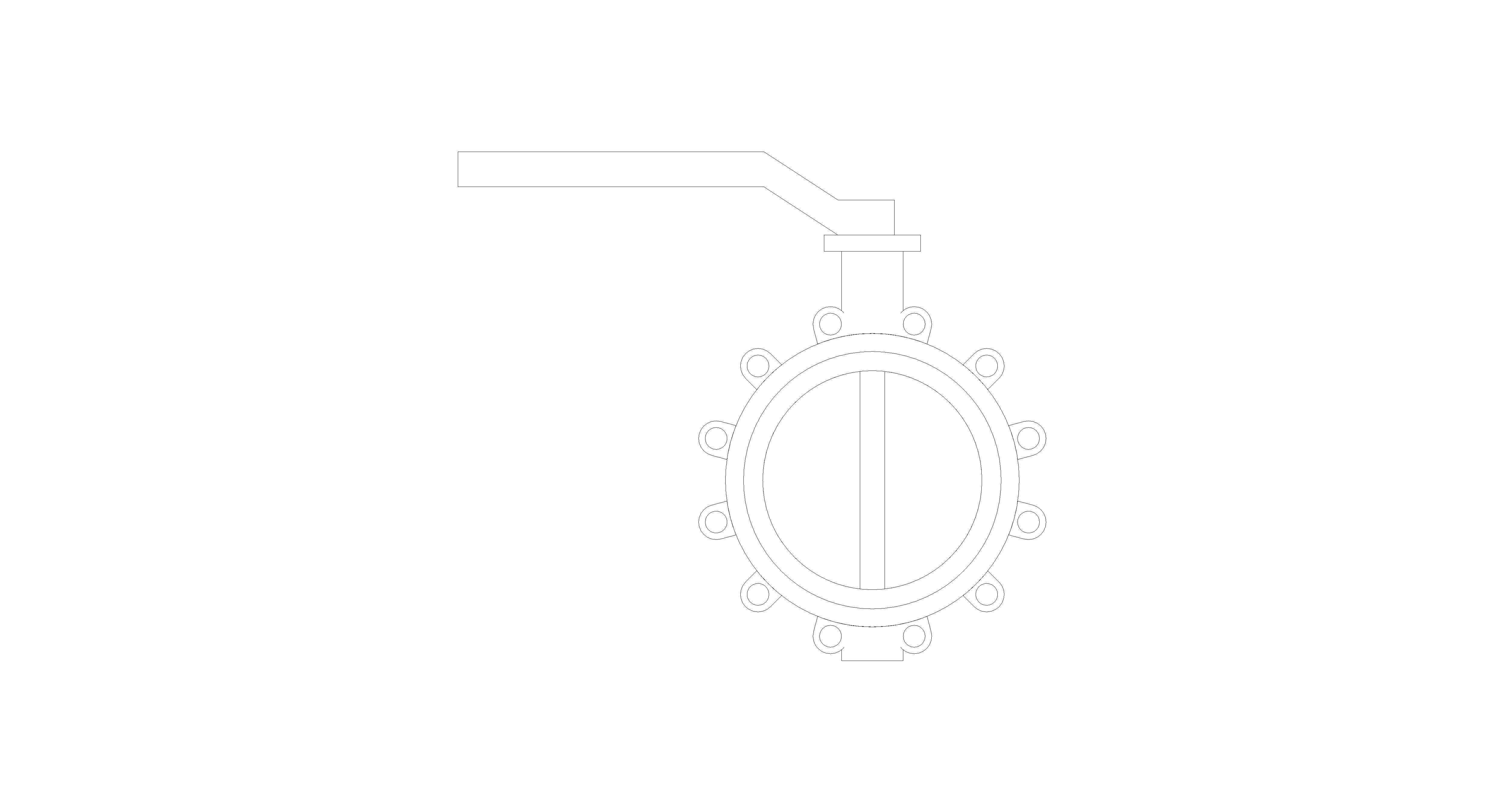

Lever Operated Double Regulating Valve - Ductile Iron

Fig. 973W

Features & Benefits

WRAS approved Double Regulating Valves consists of a fully lugged WRAS approved EPDM liner butterfly valve with a Double Regulating Lever
The Double Regulating feature allows the valve to be used for isolation and to be reopened to its pre-set position to maintain required flow rate
Use the Fig.973W with Orifice plate Fig.M2000 for Commisioning Set

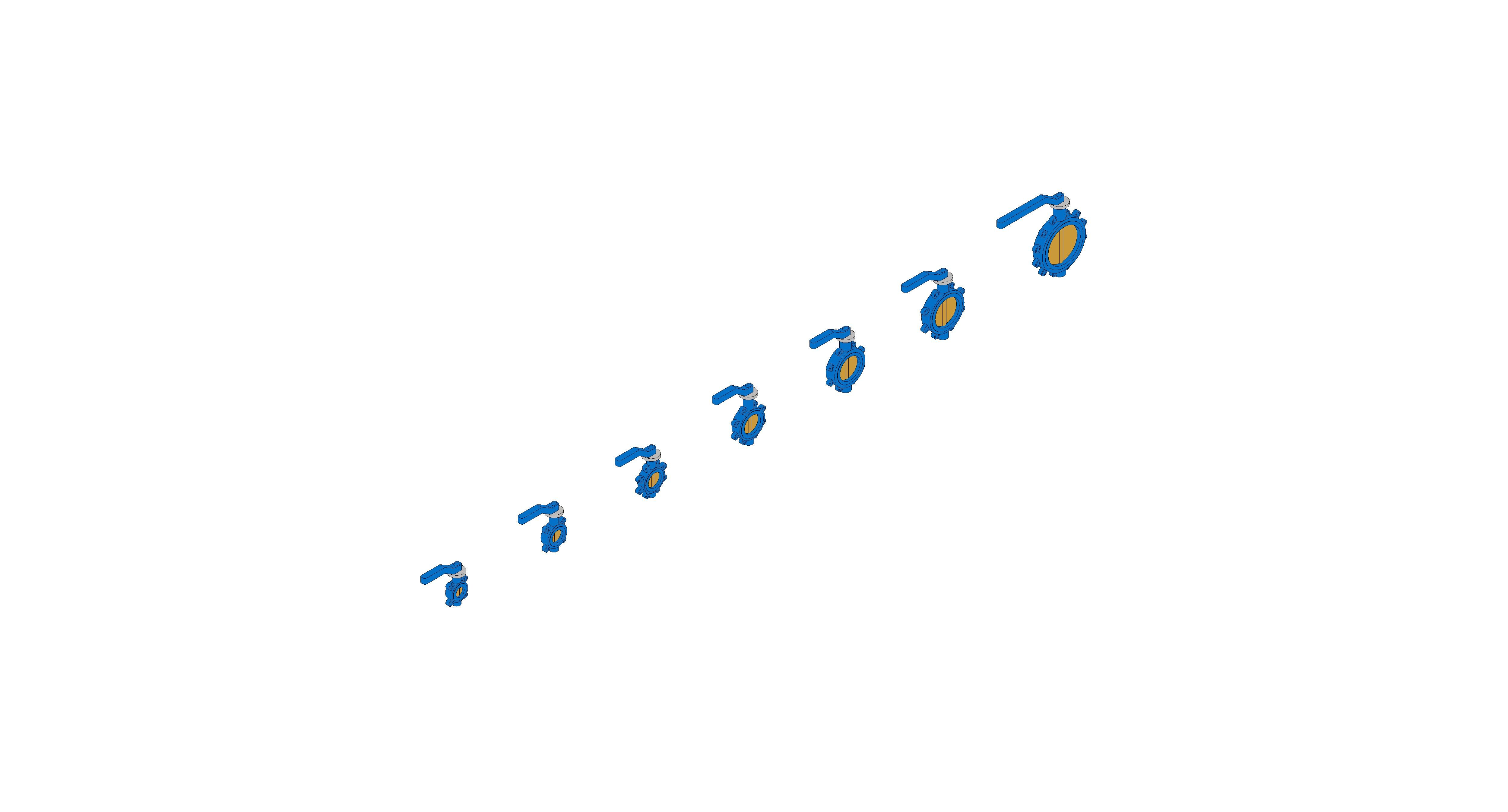

Size	DN65 to DN150
Pressure Rating	PN16
Temperature Rating	-10 to 80˚C
Product Material	Ductile Iron

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/fig-973w-fully-lugged-lever-operated-ductile-iron/document/object-user-guide
1148.00 mm
272.00 mm
383.00 mm
448.00 mm
525.00 mm
657.10 mm
A202.00 mm
A1343.00 mm
Accessibility Performancen/a
Angle 122.50 °
Angle 222.50 °
Angle 322.50 °
Assembly CodeD2090800
Asset TypeFixed
B108.00 mm
BIM Object NameHattersley_ButterflyValve_FullyLuggedLeverOperated_Fig973W
C52.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
ColorBlack
Connection Size100.00 mm
Connection Size Radius50.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2022-08-04T:09:00:00
DescriptionFig. 973W - Lever Operated Double Regulating Valve (DRV) - Ductile Iron
Disc MaterialHattersley - Metal - Bronze
Documentation Certificateswww.bimstore.co/products/fig-973w-fully-lugged-lever-operated-ductile-iron/document/product-certificates

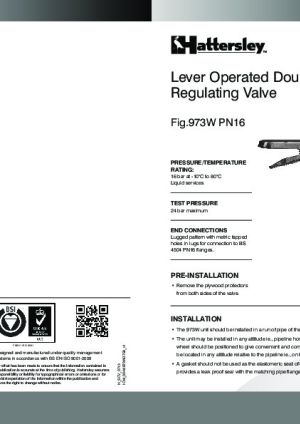

Documentation Installation Guidewww.bimstore.co/products/fig-973w-fully-lugged-lever-operated-ductile-iron/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fig-973w-fully-lugged-lever-operated-ductile-iron/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fig-973w-fully-lugged-lever-operated-ductile-iron/document/maintenance-information

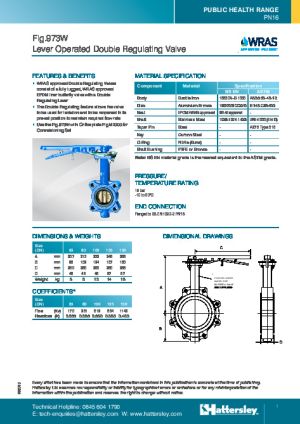

Documentation Technicalwww.bimstore.co/products/fig-973w-fully-lugged-lever-operated-ductile-iron/document/technical-data-sheet
Duration UnitYear
E212.50 mm
Expected Life0
F0.00 mm
Featuresn/a
Finishn/a
G104.40 mm
Graden/a
H157.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inner Radius50.00 mm
K180.00 mm
K Coefficient512
KeynoteS
Lever MaterialHattersley - Metal - Iron - Ductile Epoxy Paint
Loss MethodK Coefficient
Lug Hole Offset90.00 mm
Lug Hole Radius8.00 mm
Lug Inner Radius78.00 mm
Lug Outer Radius14.00 mm
ManufacturerHattersley
Manufacturer NameHattersley
MaterialDuctile Iron
Mid Radius68.25 mm
ModelFig. 973W - Lever Operated Double Regulating Valve (DRV) - Ductile Iron
Model NumberFig. 973W
Model ReferenceFig. 973W - Lever Operated Double Regulating Valve (DRV) - Ductile Iron
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameHattersley - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth52.00 mm
Nominal Height343.00 mm
Nominal Length302.50 mm
Outer Radius78.00 mm
Production Year2022
Referenced StandardASTM A536 65-45-12
Replacement Costn/a
Shapen/a
SizeDN100
Spare Partsn/a
Symbol Length60.00 mm
Type CommentsFig. 973W - Lever Operated Double Regulating Valve (DRV) - Ductile Iron
Type NameFig. 973W - Lever Operated Double Regulating Valve (DRV) - Ductile Iron
URLwww.hattersley.com/
Valve MaterialHattersley - Metal - Iron - Ductile Epoxy Paint
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
