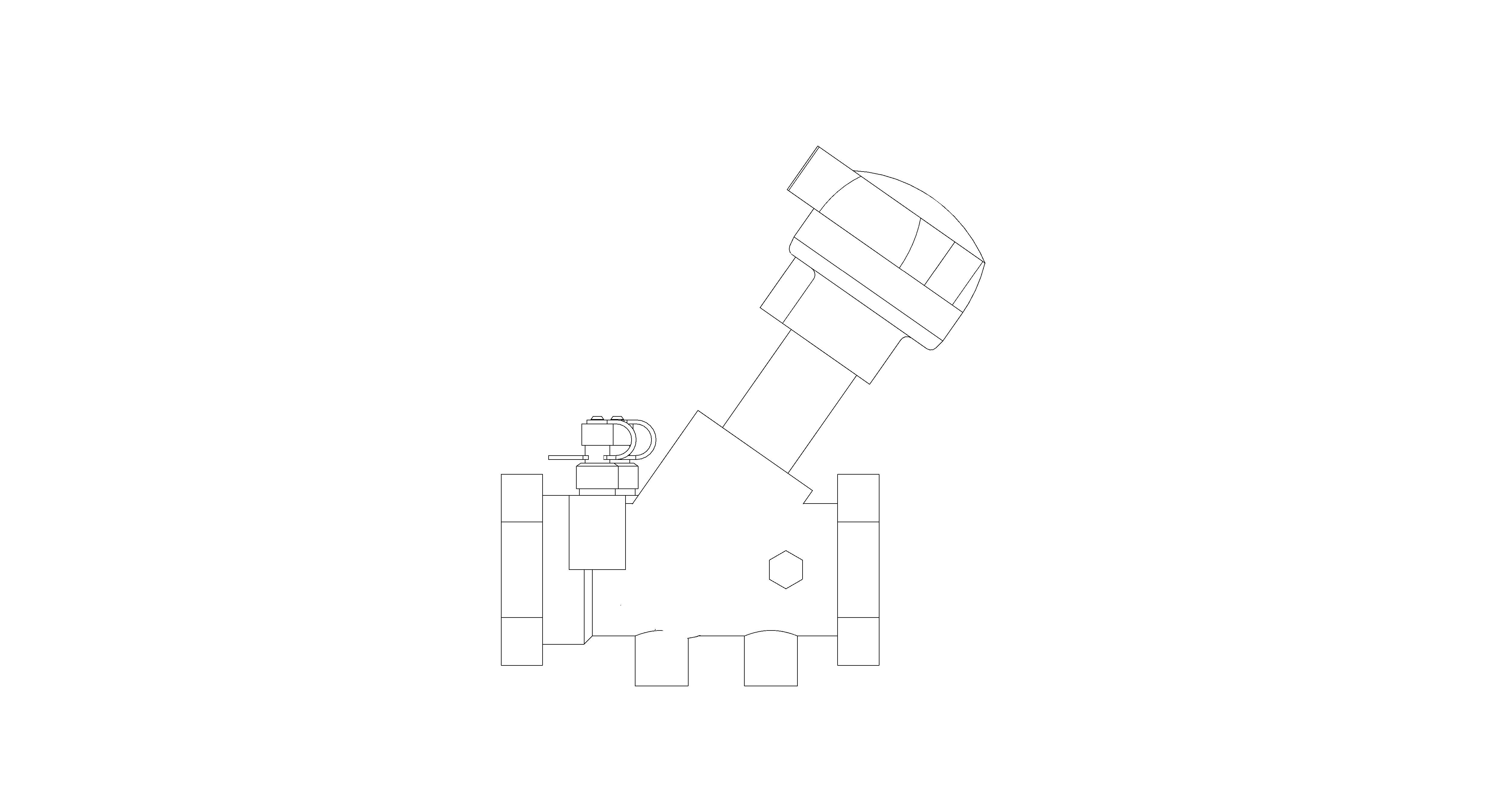

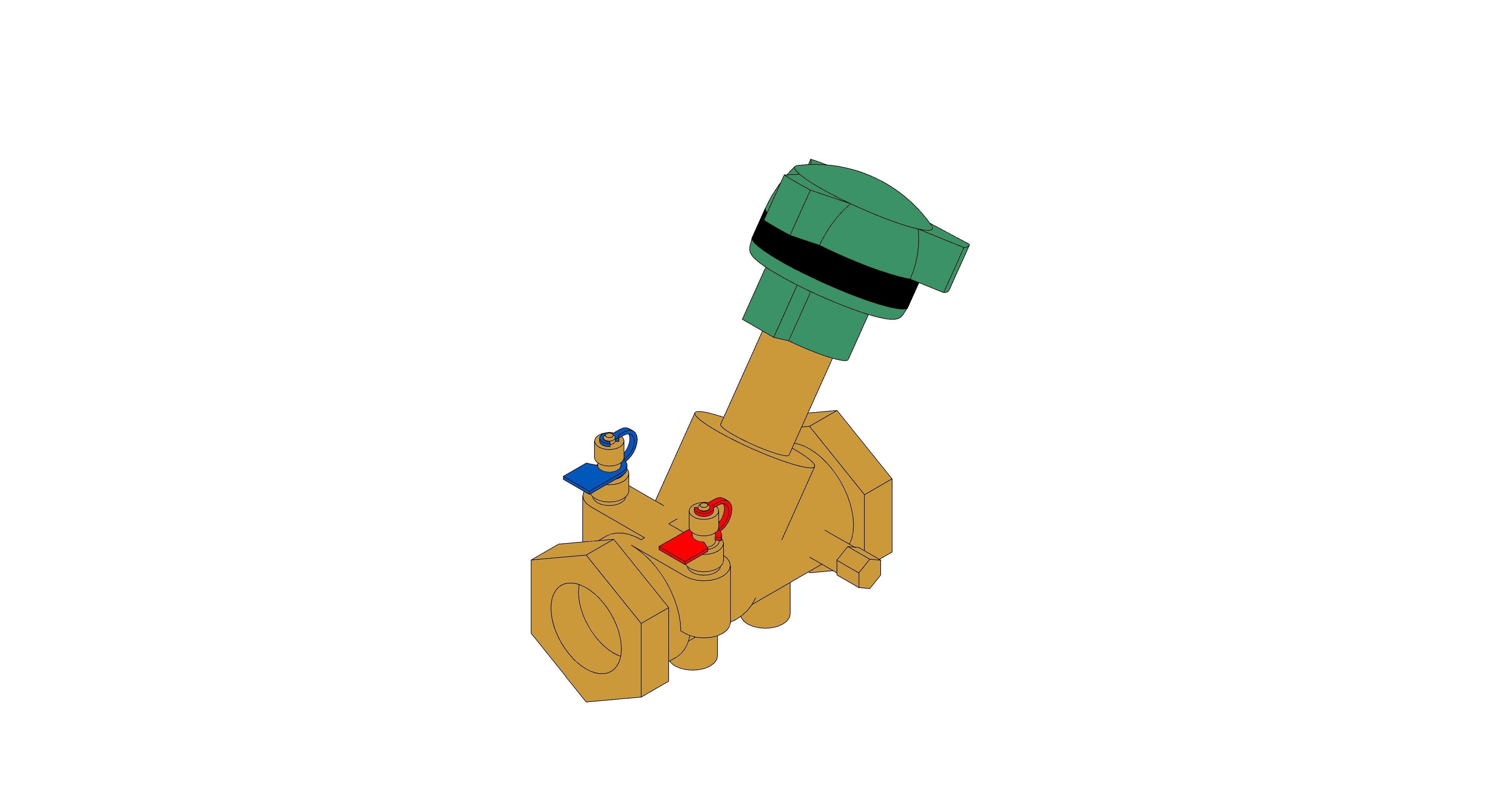

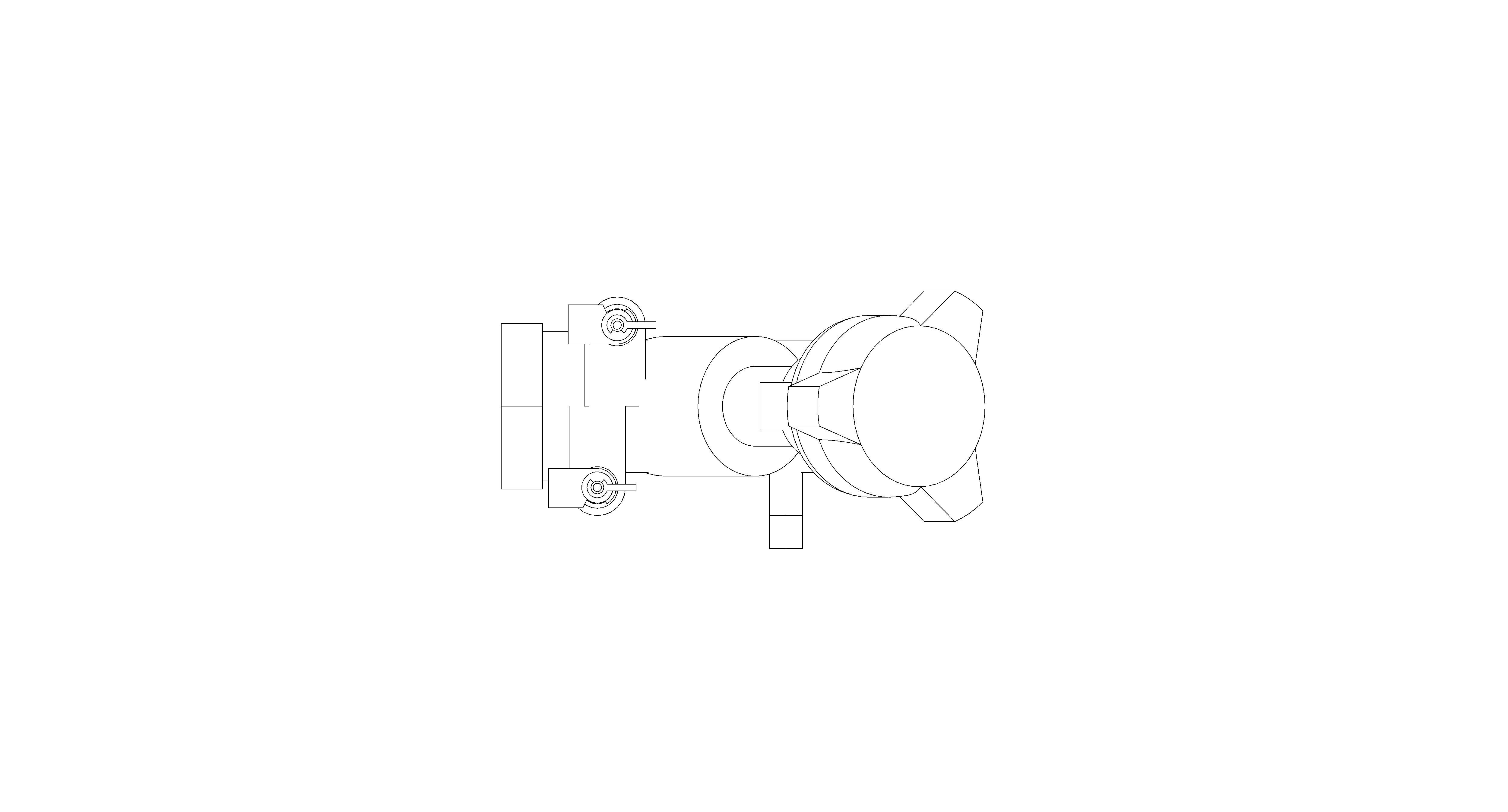

Fig. DPF1732 - Companion Valve

Download Add to collection

Description

Companion Valve

Fig. DPF1732

Object Data

1 Revision

Last Updated

13/09/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Technical Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/fig-dpf1732-companion-valve-1/document/object-user-guide
A87 mm
Accessibility Performancen/a
Angle55.00 °
Assembly CodeD20
Asset TypeFixed
B105 mm
BIM Object NameHattersley_DPCV_CompanionValve_DPF1732
BodyBronze BSEN1982 (CC491K)
BonnetDZR Brass BSEN12164 (CW602N)
C50 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_26
Code Performancen/a
ColorBronze
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2022-08-08T:09:00:00
D34 mm
D124 mm
D222 mm
DescriptionDPF1732 - Companion Valve - suitable for female ended DPCV - Bronze
Discn/a
DN15 mm
Documentation Certificateswww.bimstore.co/products/fig-dpf1732-companion-valve-1/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fig-dpf1732-companion-valve-1/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fig-dpf1732-companion-valve-1/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fig-dpf1732-companion-valve-1/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fig-dpf1732-companion-valve-1/document/technical-data-sheet
Duration UnitYear
E13 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H127 mm
HandwheelPlastic
Handwheel MaterialPVC, Maroon
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.DOUBLEREGULATING
K Coefficient0
KeynoteS
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelDPF1732 - Companion Valve - suitable for female ended DPCV - Bronze
Model NumberDPF1732
Model ReferenceDPF1732 - Companion Valve - suitable for female ended DPCV - Bronze
NBS DescriptionDouble regulating valves
NBS Noten/a
NBS Object NameHattersley - Double regulating valves
NBS Office Master Tagn/a
NBS Reference90-10-90/356
Nominal Depth59 mm
Nominal Height129 mm
Nominal Length87 mm
Orifice InsertDZR Brass BSEN12164 (CW602N)
O Ring SealEPDM Rubber WRAS approved
Outlet 128 mm
Outlet 234 mm
Outlet 363 mm
Outlet 437 mm
Outlet 4 And 5 Height24 mm
Outlet 523 mm
Plug Rc TaperDZR Brass BSEN12164 (CW602N)
Plug Rp ParallelDZR Brass BSEN12164 (CW602N)
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partsn/a
StemDZR Brass BSEN12164 (CW602N)
Tee Centre43 mm
Tee L129 mm
Tee R114 mm
Test PointDZR Brass BSEN12164 (CW602N)
Type CommentsDPF1732 - Companion Valve - suitable for female ended DPCV - Bronze
Type NameDPF1732 - Companion Valve - suitable for female ended DPCV - Bronze
URLwww.hattersley.com/
Valve MaterialBrass, Soft Yellow
W19 mm
W219 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
Weight0.57 kg
