FloPlast RAH1 90° Angle Hi-Cap

96
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

19/09/2024

Download BIM

Add to collection

Available for:

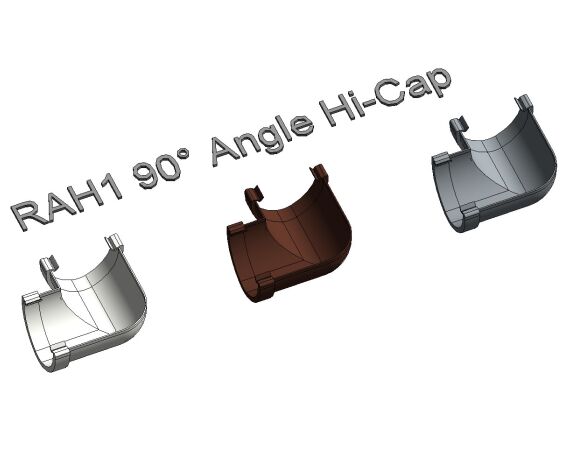

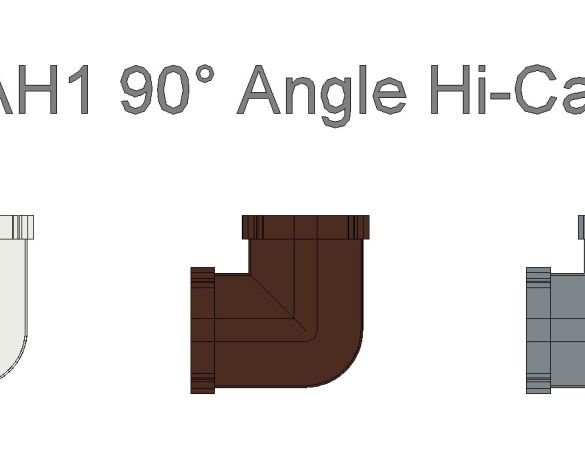

A semi-elliptical profile with high capacity flow.

System Features

FloPlast recommend the use of lubricant on all gutter seals for ease of fitting and improved performance.

A semi-elliptical profile.
High capacity-ideal for large roof areas.
Pre-fitted gutter seal retaining clip system for fast user friendly installation.
High flow rate means less outlets and less drainage runs.
Both 68mm & 80mm Round Line downpipes can be connected to the gutter system.
System is covered by a BSI Kitemark – no. KM501316.

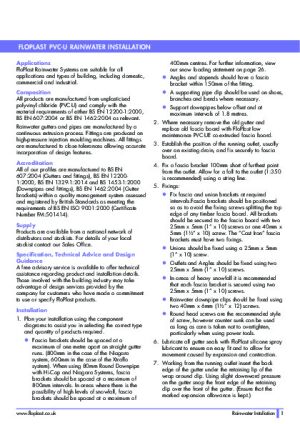

Please see related documents for installation guidelines.

Specifications

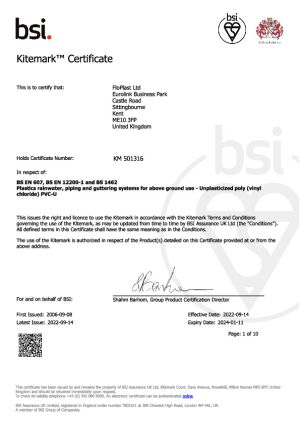

BSI Kitemark number: KM 501316 – BS EN 607, BS EN 12200 and BS EN 1462 Plastic rainwater, piping and guttering systems for above ground use – Unplasticized poly vinyl chloride (PVC-U).

BS EN 607 – Eaves gutters and fittings made of PVC-U.

BS EN 1462 – Brackets for eaves gutters.

BS EN 12200-1 – Plastics rainwater piping systems for above ground external use. Unplasticized poly (vinyl chloride) (PVC-U).

BS EN 681 – Elastomeric seals. Material requirements for pipe joint seals used in water and drainage applications. Thermoplastic elastomers.
