FloPlast RAS1 90° Gutter Angle Square Line

242
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

25/06/2024

Download BIM

Add to collection

Available for:

Availble in black, white, brown and anthracite grey

System Features

FloPlast recommend the use of lubricant on all gutter seals for ease of fitting and improved performance.

Attractive rectilinear profile.
Flow capacity in excess of Half Round.
Pre-fitted gutter seal retaining clip system for fast user friendly installation.
Pre-lubricated gutter seals.
Cost effective solution for both new build and refurbishment applications.
Connects to most other metal or plastic systems using our extensive range of adaptors.
Adjustable Angles 50° – 156° (RAS3) are available – all other angles can be fabricated. Please contact the technical department for further information.
System is covered by a BSI Kitemark – no. KM501316.

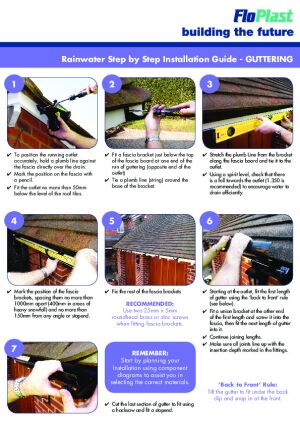

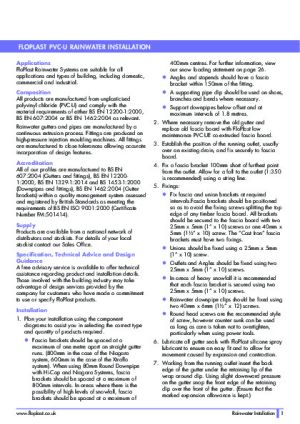

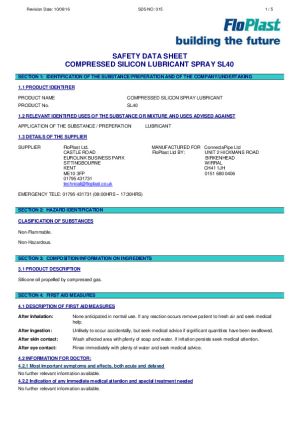

Please see related documents for installation guidelines.

Specifications

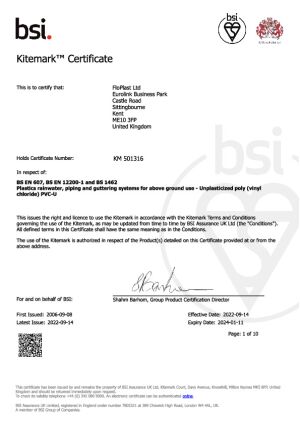

BSI Kitemark number: KM 501316 – BS EN 607, BS EN 12200 and BS EN 1462 Plastic rainwater, piping and guttering systems for above ground use – Unplasticized poly vinyl chloride (PVC-U).

BS EN 607 – Eaves gutters and fittings made of PVC-U.

BS EN 1462 – Brackets for eaves gutters.

BS EN 12200-1 – Plastics rainwater piping systems for above ground external use. Unplasticized poly (vinyl chloride) (PVC-U).

BS EN 681 – Elastomeric seals. Material requirements for pipe joint seals used in water and drainage applications. Thermoplastic elastomers.

_AuthorMM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.wienerberger.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
_Object User Guiden/a
Accessibility Performancen/a
Assembly CodeD2040100
Asset TypeFixed
BIM Object NameFloPlast_SpecialtyEquipment_RAS1_90DegAngleSquareLine
Classification NameUniclass2015
Classification ValuePr_65_52_03_88
Code Performancen/a
ColorAnthracite Grey
ConstituentsMoulded PVC Body, Moulded PVC Clips, EDPM Rubber Seals
Created Bywbukdesignservices@wienerberger.co.uk
Created On2024-01-17T09:00:00
Default Elevation0 mm

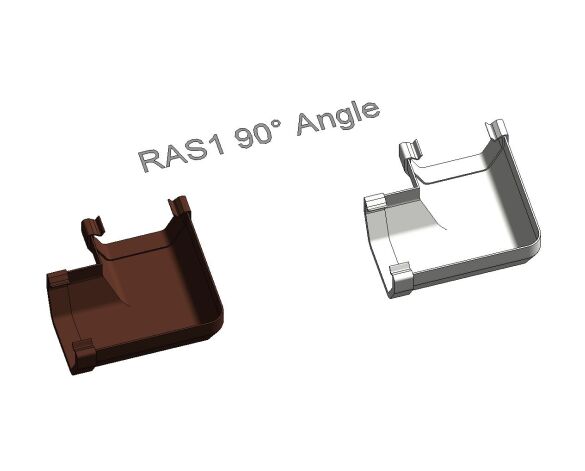

Description90° Angle Square Line
Documentation Certificateswww.floplast.co.uk/rainwater
Documentation Installation Guidewww.floplast.co.uk/rainwater
Documentation Literaturewww.floplast.co.uk/rainwater
Documentation Maintenancewww.floplast.co.uk/rainwater
Documentation Technicalwww.floplast.co.uk/rainwater
Duration UnitYears
Expected Life0
Featuresn/a
FinishHigh Gloss
Flo Plast MaterialFloPlast_AnthraciteGreyPVC-U
Graden/a
Ifc Export AsIfcDuctFitting
Ifc Export TypeIfcDuctFittingTypeEnum.BEND
KeynoteR10/350
ManufacturerFloPlast LTD
Manufacturer NameFloPlast LTD
MaterialPVC-U, EDPM Rubber
ModelRAS1 90° Angle Square Line
Model Numbern/a
Model Referencen/a
NBS DescriptionUnplasticized polyvinyl chloride (PVC-U) rainwater pipes and fittings
NBS Noten/a
NBS Object NameFloPlast - Unplasticized polyvinyl chloride (PVC-U) rainwater pipes and fittings
NBS Office Master Tagn/a
NBS Reference90-10-30/318
Nominal Depth194 mm
Nominal Height71 mm
Nominal Length194 mm
NoteTo be used in conjunction with: 65mm Square
Production Year2024
Referenced Standardn/a
Replacement Costn/a
ShapeSquare Line
Size194 x 194 x 71mm
Spare Partsn/a
Type CommentsRAS1 Anthracite Grey 90° Angle Square Line
Type NameRAS1 Anthracite Grey 90° Angle Square Line
URLwww.floplast.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Labortechnical@floplast.co.uk
Warranty Guarantor Partstechnical@floplast.co.uk
